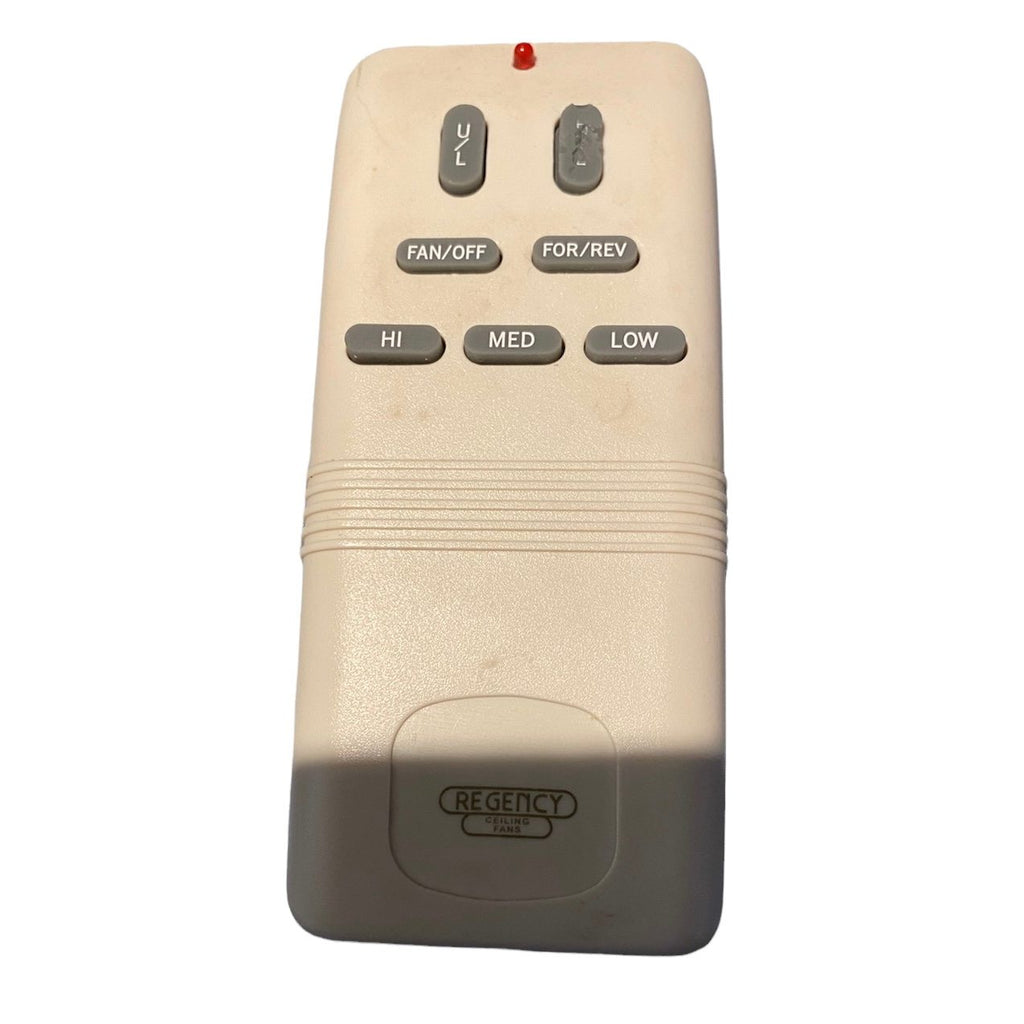

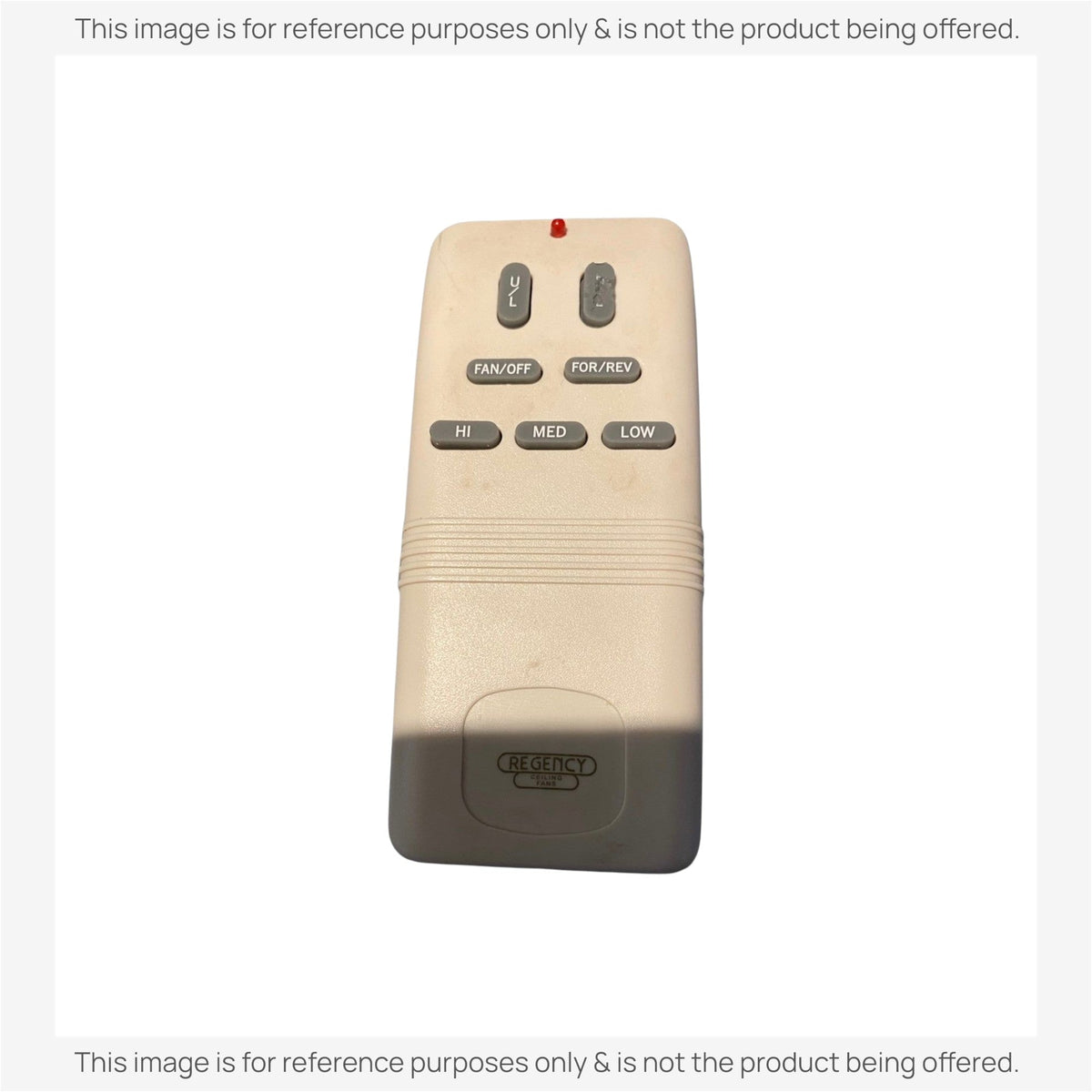

Anderic Substitute Kit for Regency G9P2BTAUC7052T with up/Down lights Ceiling Fan Remote Control [WindwardIIIKit]

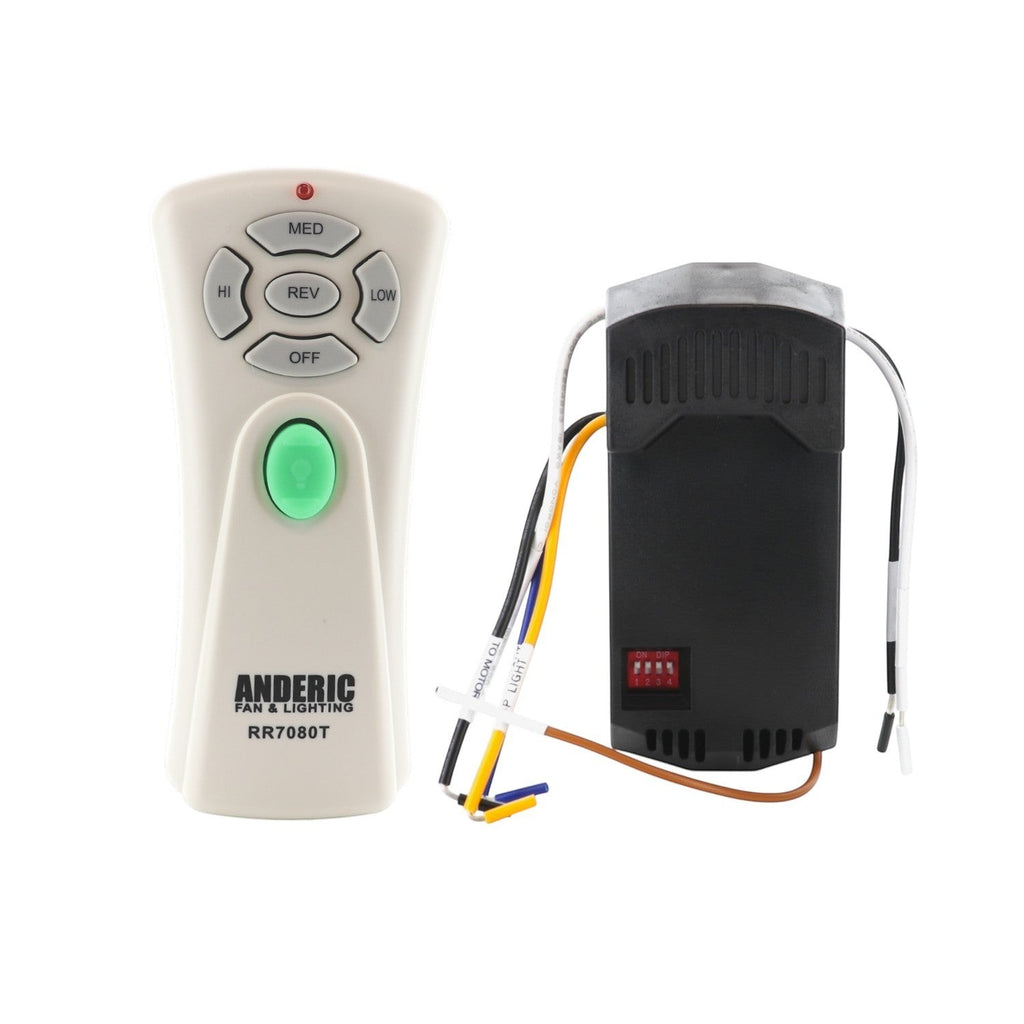

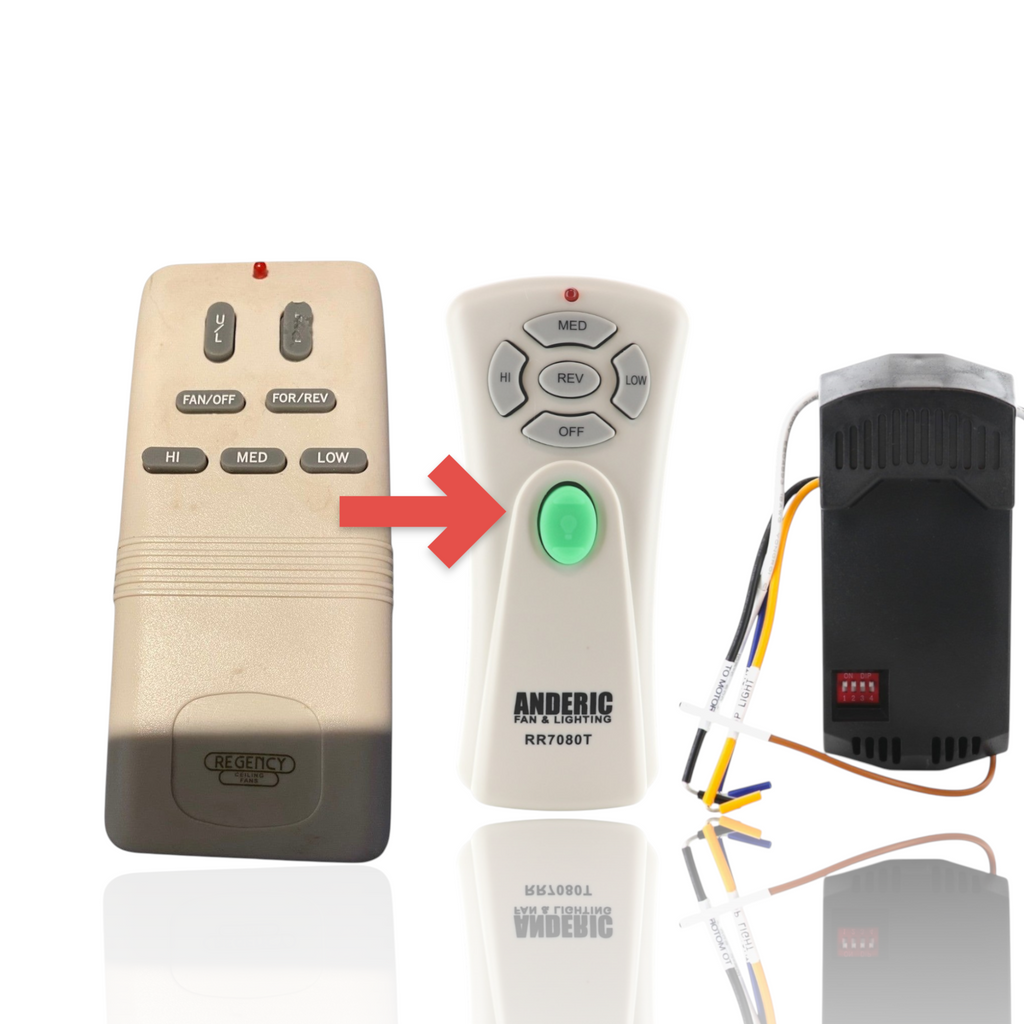

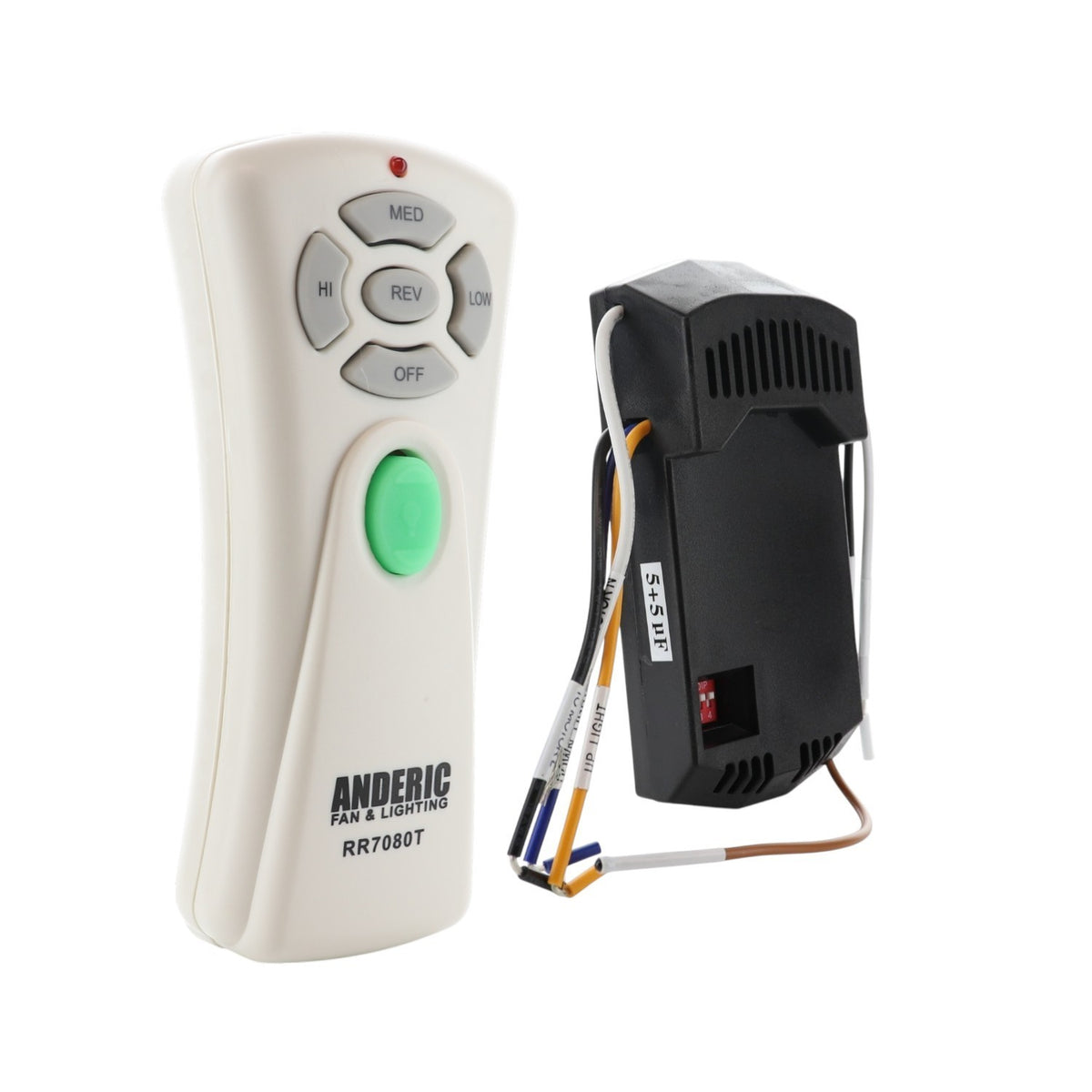

The Anderic WindwardIIIKit is a substitute for the Regency G9P2BTAUC7052T. It is a ceiling fan remote and receiver kit (RR7080T remote and UC7067GMRX receiver).

Specifications

• Kit: Anderic WindwardIIIKit
• Radio frequency (RF): 303.835 MHz (304 MHz)
• Battery: 1 9-Volt (not included)

Good to Know

• It comes with its own receiver and remote; the existing receiver and remote are not used.
• For 3-speed AC ceiling fans; the UC7067GMRX receiver is wired into the fan canopy.
• Key names, layout and the look of the case may differ from the original. Compare your original's buttons before ordering.

Setup / Pairing

Reverse works only where the existing fan already has the appropriate compatible reversing module or receiver system. This kit does not add electronic reverse to a manual-switch fan. That is not a categorical denial of reverse on every three-motor-lead fan.

1. Install the UC7067GMRX receiver

1. WARNING: High voltage. Turn off power to the fan by removing the fuse or switching off the circuit breaker.
2. Remove the fan canopy from the mounting bracket.
3. Disconnect the existing wiring between the fan and the supply at the junction box. If you are replacing a receiver, disconnect all of its wires.
4. Lay the black antenna wire on top of the receiver and put the receiver in the mounting bracket.
5. Connect with the supplied wire nuts: black receiver wire (AC IN L) to the black supply wire; white receiver wire (AC IN N) to the white supply wire; white receiver wire (TO MOTOR N) to the white fan wire; black receiver wire (TO MOTOR L) to the black fan wire; blue receiver wire (FOR DOWN LIGHT) to the blue fan wire; red receiver wire (FOR UPPER LIGHT) to the red fan wire.
6. Push all connected wires up into the junction box, reinstall the canopy and restore power.

2. Pair the remote

1. Install the 9-volt battery in the RR7080T remote.
2. Set the dip switches in the remote to the same pattern as the dip switches on the receiver.

What's in the Box

• 1 remote and 1 receiver
• Wall mount bracket
• Battery not included

Compatible Models

• Regency G9P2BTAUC7052T

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
