Product help/documentation (if applicable): User Guide
Features:

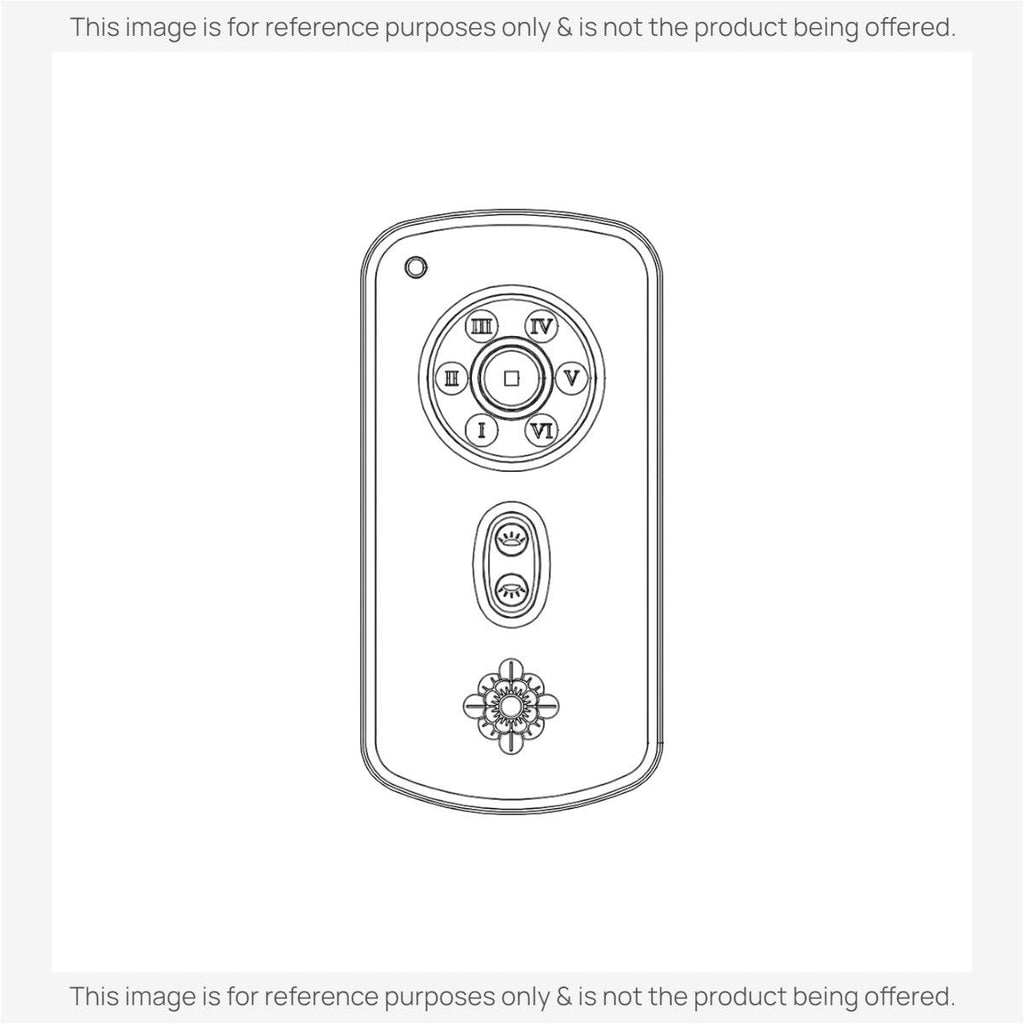

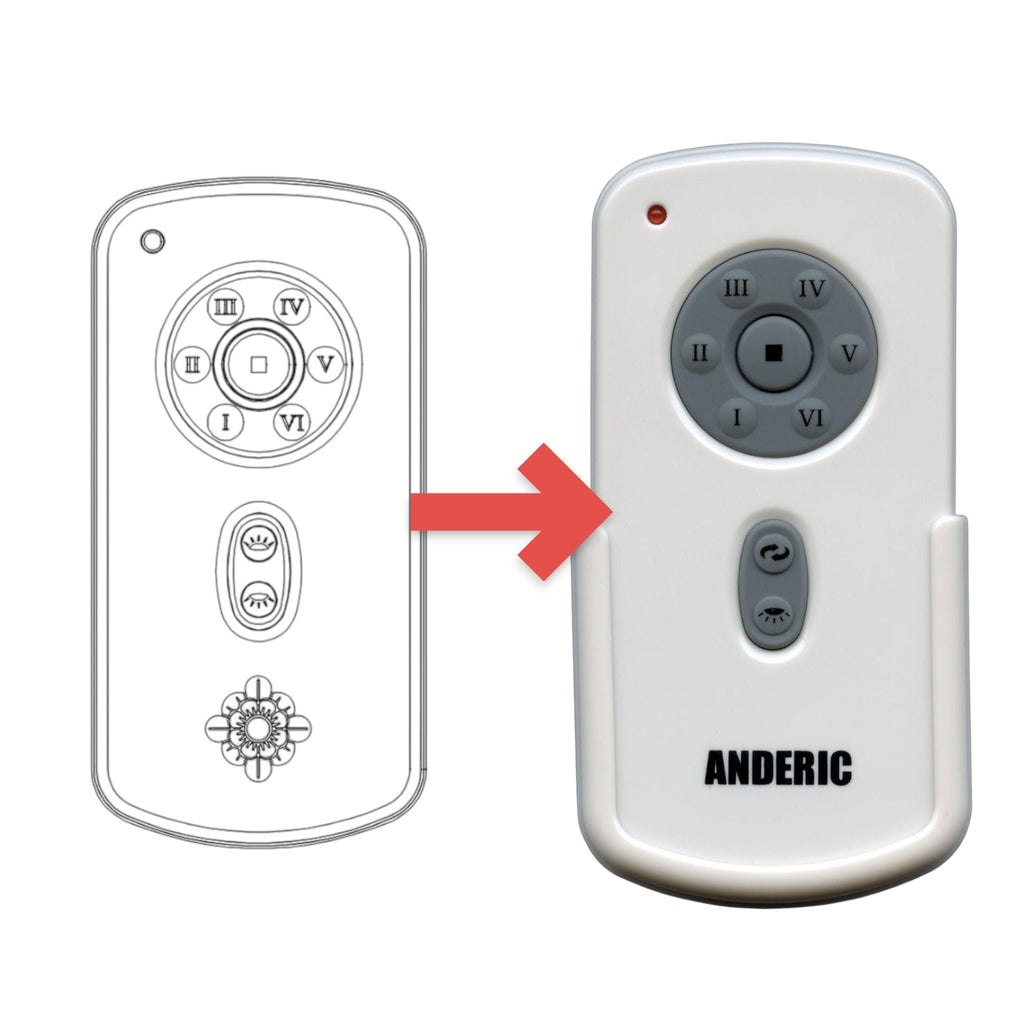

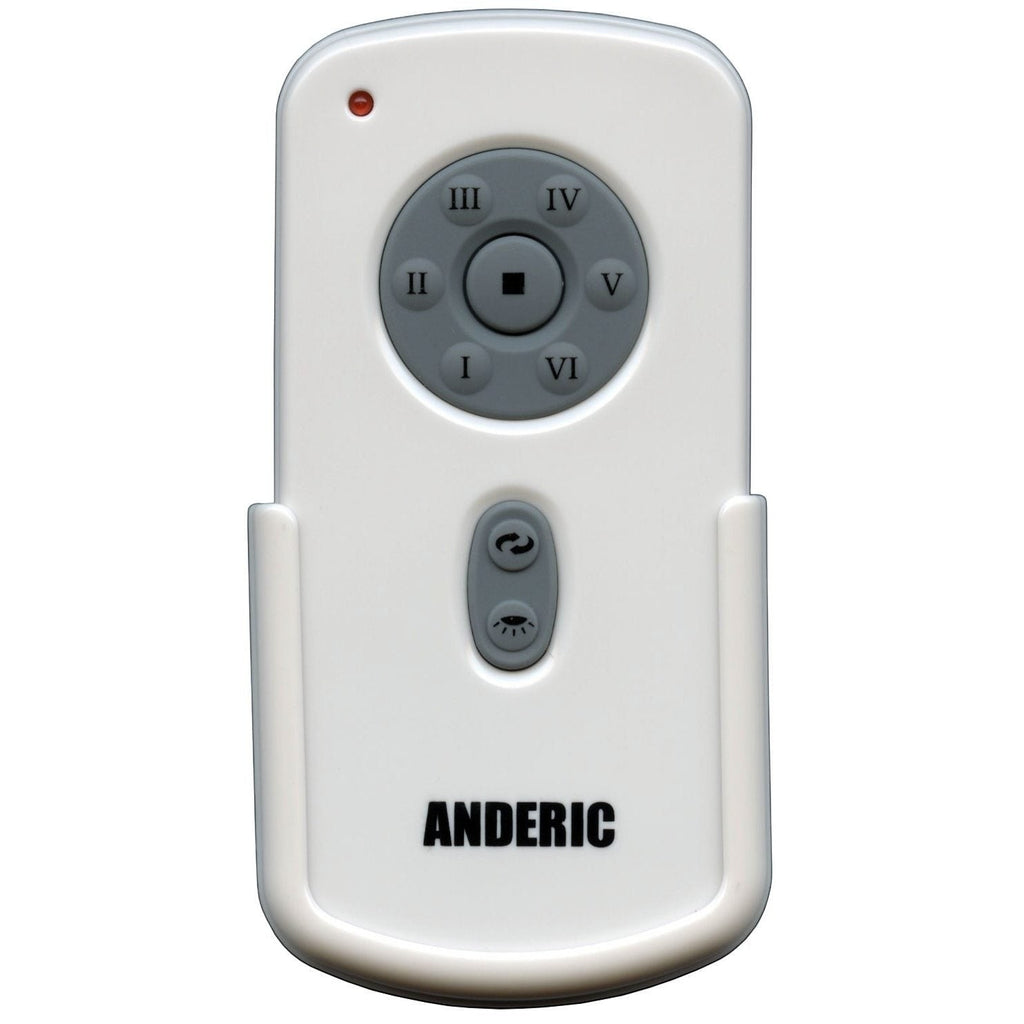

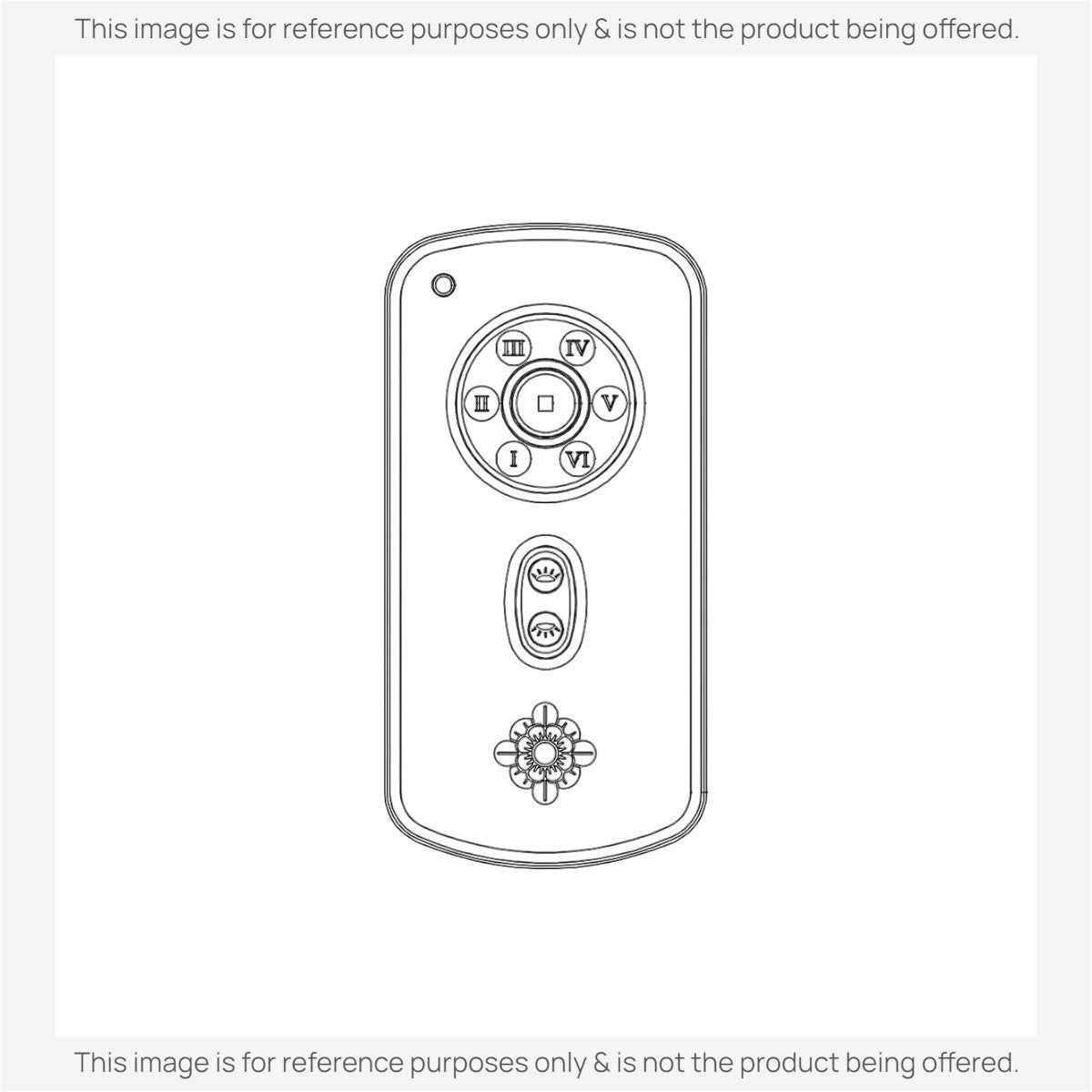

- Replaces your Monte Carlo RH787T with a ceiling fan remote for fans that already have an RH786R-type receiver. Fits units such as Hampton Bay UC787GT, Fanimation TR29 Reversable and Generic RH787T.

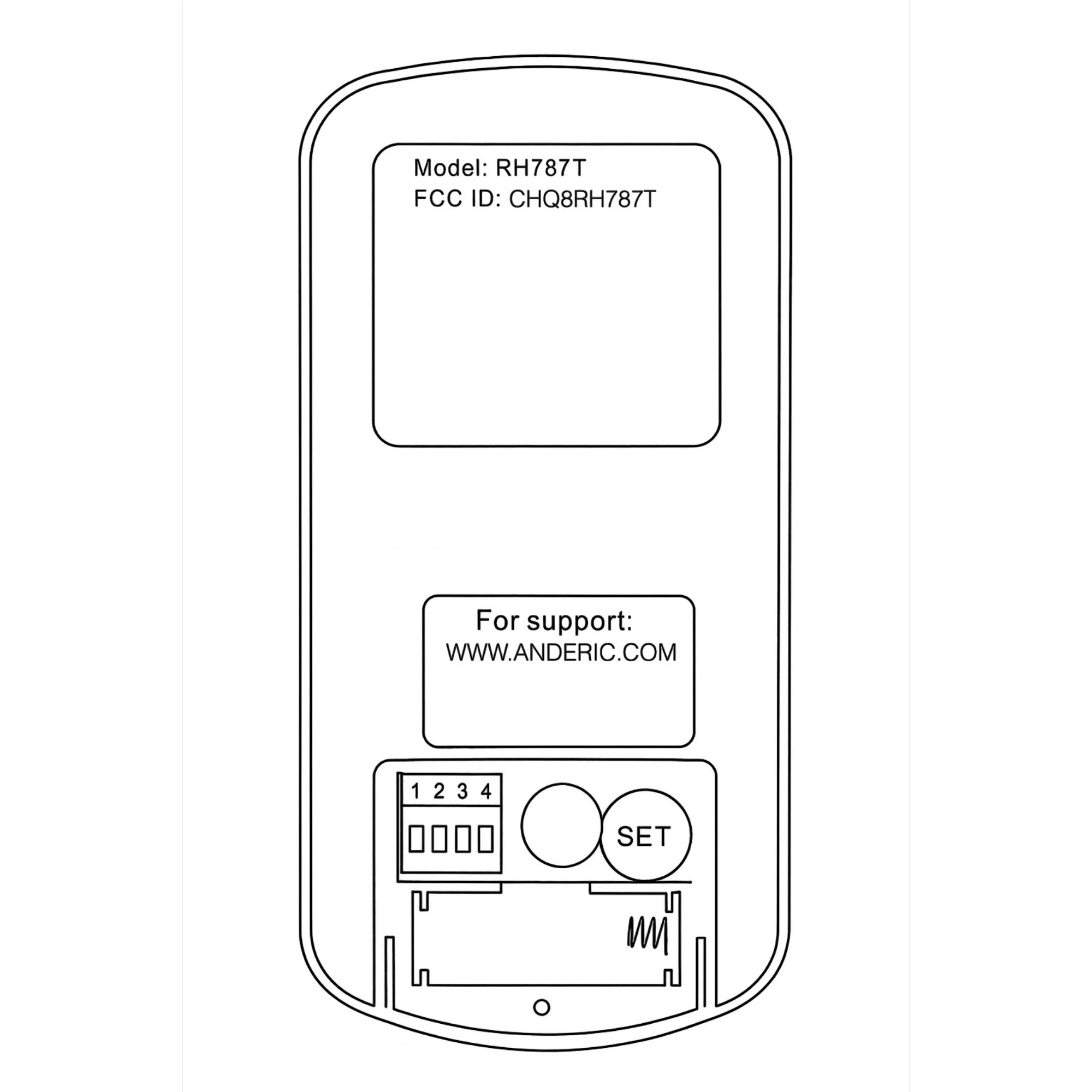

- To set it up in place of your Monte Carlo RH787T, turn the power off, set the remote's dip switches to any setting (the fan learns it). Restore power, then within 60 seconds, press and hold SET for 1-5 seconds, and the light blinks twice.
- Dedicated keys control the fan speed and the light.
- Six speeds, reverse and down-light control. No up-light. SET learning within 60 seconds of power-on (HOLD SET 1–5 seconds, no other key first, two blinks). Takes one A23 battery, not included.
- Takes 1 23A battery, not included.
Part/Model Number: CHQRH787T-UD / RH787T
Power Information: 1 A23 Required, Not Included
Supplied with models (if applicable): Turbine 8 Blade 56 8TNR56BKD Matte Black, Turbine 8 Blade 56 8TNR56BKDV1 Matte Black, Turbine 8 Blade 56 8TNR56RZWD Matte White, Turbine 8 Blade 56 8TNR56RZWDV1 Matte White
Compatible with models (if applicable): RH787T, UC787GT, TR29, UC9787T, CH9787TB, CHQ9053T, 2AQZU-18006, 5VMR72RZWD, 5VMR72OZD, 5VMR72BSD, 3ARR68BS, 3ARR68MBK, 3ARR68RZWBBS, 3HCKR60BNZHABD, 3HCKR60HABD, 4LMR56D, 4LMR56DWZD, 5DVR60AGP, 5DVR60BS, 5DVR60OZ, 5DVR60RZW, C31U11B, C31U45B, C31U546B, LP8147SLBN, 59105, 59106, 59107, C45G11B, C45G45B, C45G695B, 59164, 59165, 55067, 55068, 55069, 55070, 59143, 59144, 688757, AG804LN, AM175ORB, GL3, LP8147SLBL, 8TNR56BKD, 8TNR56BKDV1, 8TNR56RZWD, 8TNR56RZWDV1, LP8146LBN, CHQRH787T, G105501000
