Description

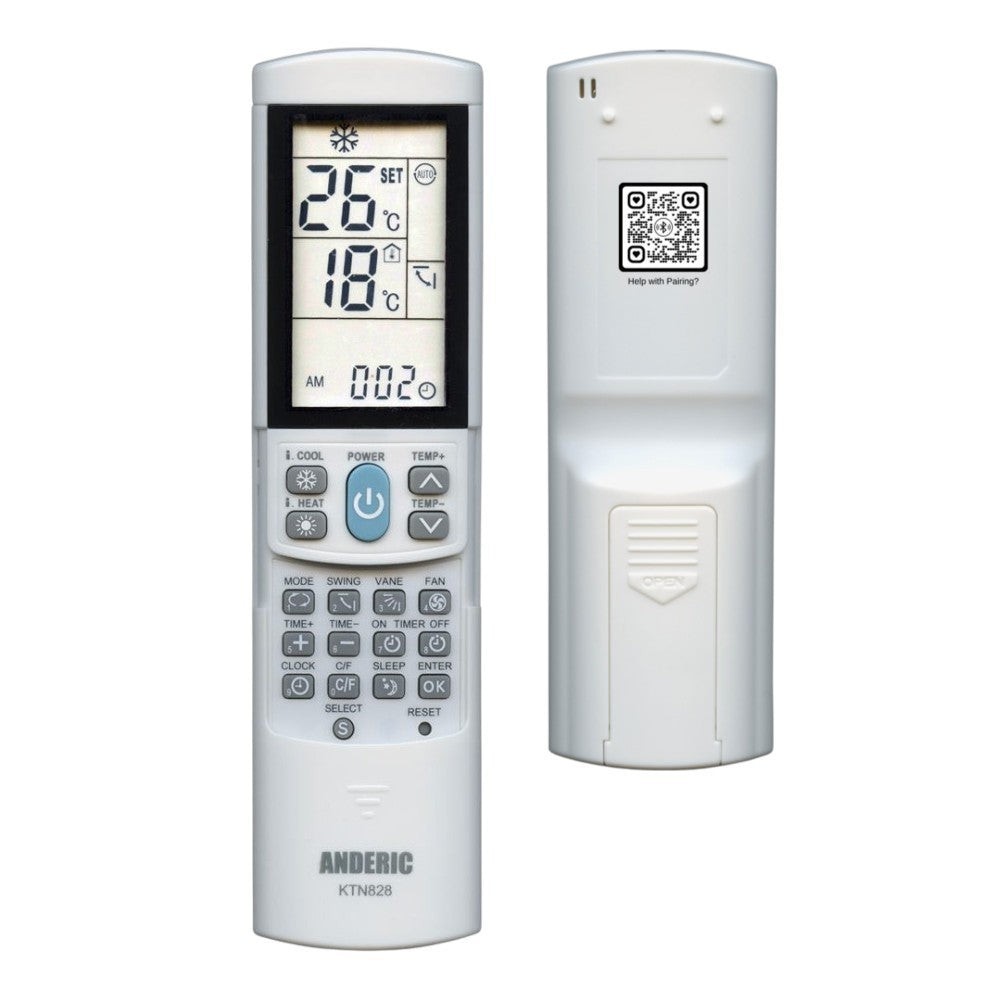

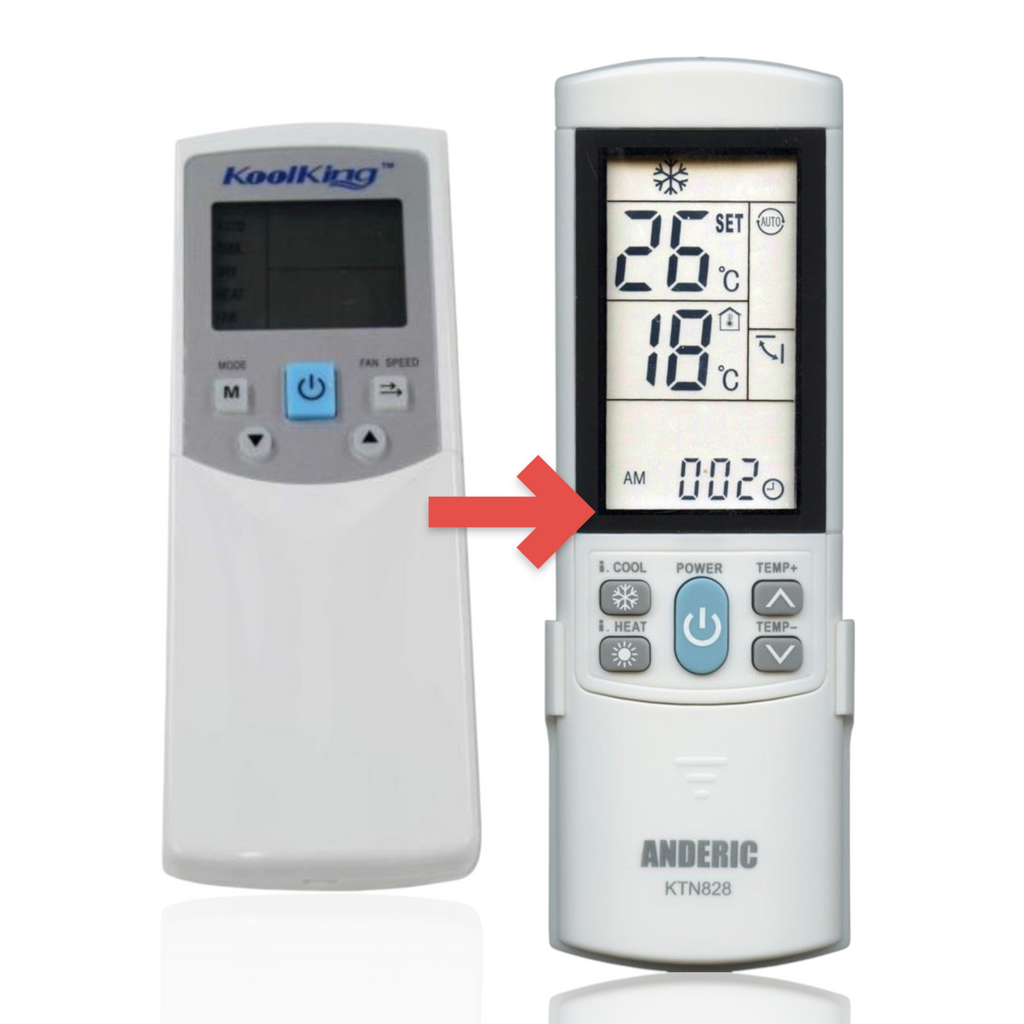

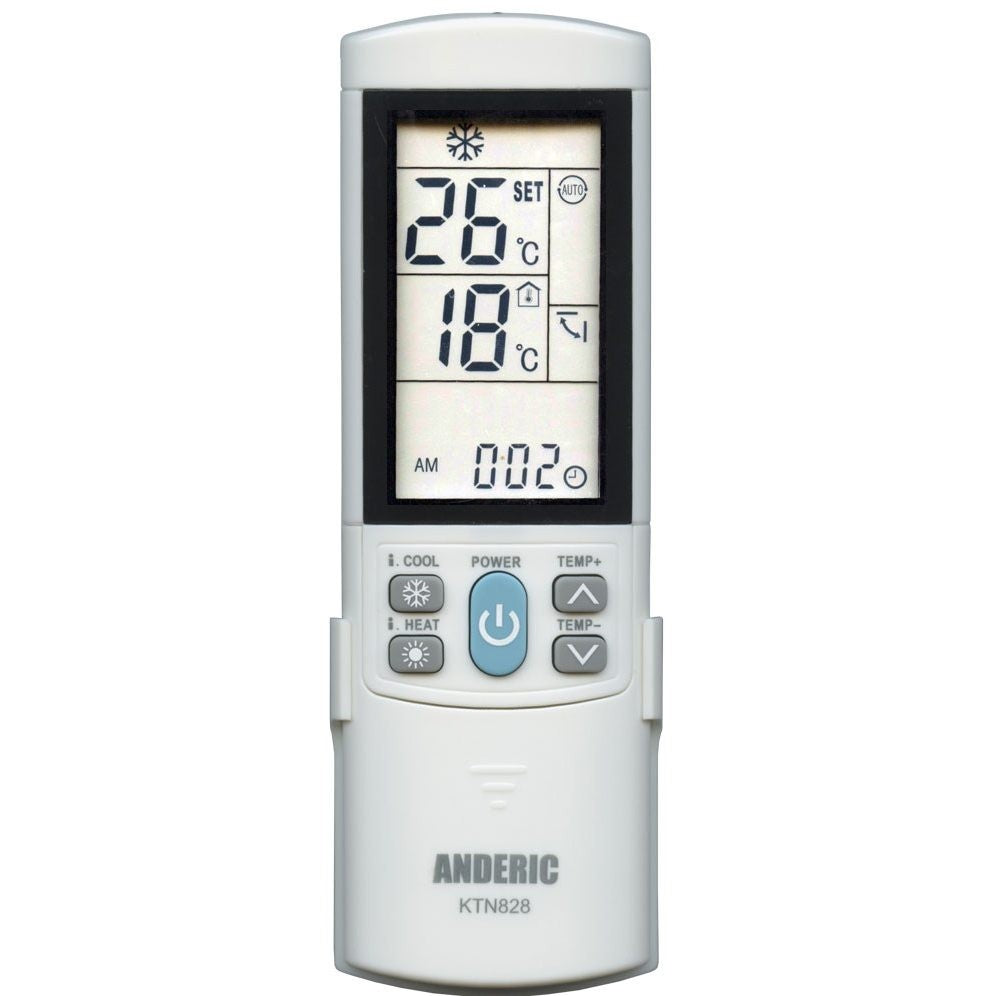

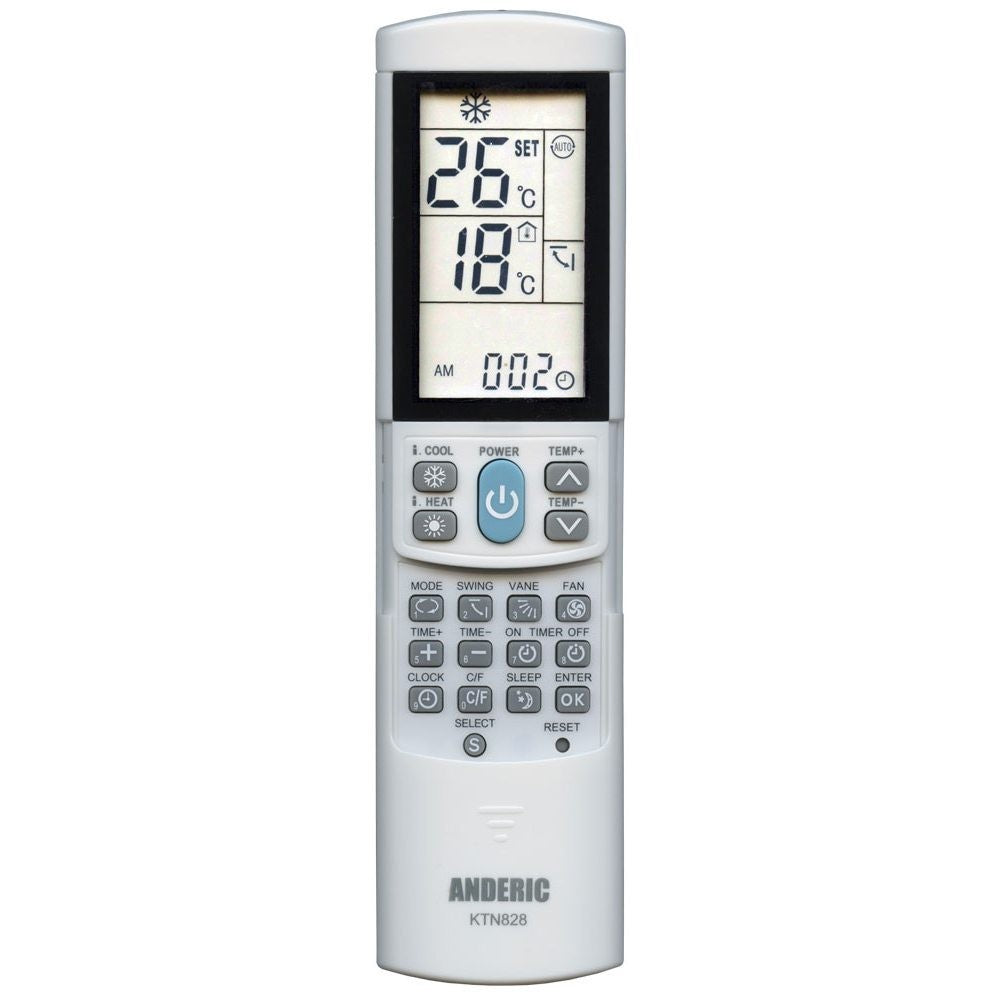

The Anderic KTN828 is a substitute for the Midea Rg05f2/bgeu1-01 remote. It is a universal air-conditioner remote with a backlit LCD. It works with Midea air conditioners such as CCA3U09HRFN1MC, CCA3U12HRFN1MC and CCA3U18HRFN1MC.
Specifications
- Shipped remote: Anderic KTN828
- Infrared (IR): aim it at the device; a clear line of sight is needed
- Batteries: 2 AAA (not included)
- Wall-mount holder
Good to Know
- Not ready out of the box: it must be programmed to your air conditioner (SELECT key is behind a slide-down door)
- Key layout and labels differ from the original remote
Setup / Pairing
For timer and sleep operation, leave the remote stationary, aimed at the AC unit, with an unobstructed direct IR path; otherwise these functions will not work.
- Insert 2 AAA batteries (not included), matching the polarity marks. This is an infrared remote: there is no pairing; it is programmed with a code.
- Method 1, programming using code input: find the codes listed for Midea in the code section of the manual. For Midea, the codes start with 0260, then 0261, 0262, 0263.
- Press SELECT; the code section on the screen flashes.
- Enter the first 4-digit code listed for Midea (0260). The remote should now operate the AC. If it does not, repeat with the next code listed.
- Once you find a working code, try the other function keys. If some keys do not respond, try a different code to see if one works more fully.
- Method 2, programming using auto-search (if you do not know the brand, or the brand is not in the code table): aim the remote at your air conditioner throughout this process.
- Press and hold SELECT for 5 seconds, then release. The remote enters auto-search mode and sends codes continuously.
- When the AC responds, immediately press any key to save the current code.
- Try the other function keys to see if the code works fully. If it does not, repeat the auto-search steps.
What's in the Box
- 1 Anderic KTN828 remote
- Wall mount bracket
- Batteries not included
Compatible Models
- Midea Rg05f2/bgeu1-01
- Works with many Midea air conditioners, including models starting with CCA3, MCA2 and MCD36.
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to the full compatible models list.
Specifications
Product help/documentation (if applicable): User Guide
Features:
- A substitute for the Midea Rg05f2/bgeu1-01 remote that controls units such as CCA3U09HRFN1MC, CCA3U12HRFN1MC and CCA3U18HRFN1MC, and it works with most mini-split, window, portable and HVAC systems from LG, Samsung, Midea, Haier, GE and many more.
- Press SELECT and enter Midea code 0260 (or try 0261, 0262, 0263 and the other Midea codes in the manual), or hold SELECT for 5 seconds to auto-search; step-by-step instructions are in the description.
- The extra-large backlit display shows the clock and real-time room temperature at a glance. Switch between Fahrenheit and Celsius readouts with ease.
- One-touch Intelligent Cooling or Intelligent Heating automatically adjusts output for energy efficiency and room comfort. Also includes a sleep function and on/off timers.
- Includes the KTN828 remote, wall mount and instructions. Takes 2 AAA batteries, not included (screws also not included).
Part/Model Number: 17317000A02129 / RG05F2/BGEU1-01
Power Information: 2 AAA Required, Not Included
Supplied with models (if applicable): CCA3U09HRFN1MC, CCA3U12HRFN1MC, CCA3U18HRFN1MC, CFAU12HRFN1MC, MCA2U12HRFN1M, MCA2U18HRFN1M, MCD24HRFN1M, MCD36HRFN1M, MCD36HRFN1MC, MCDU24HRFN1MC, MFAU12HRFN1M, MUBU12HRFN1MB, MUE36HRFN1MC, MUEU18HRFN1MC
Compatible with models (if applicable): RG05F2, BGEU1-01, CCA3U09HRFN1MC, CCA3U12HRFN1MC, CCA3U18HRFN1MC, CFAU12HRFN1MC, MCA2U12HRFN1M, MCA2U18HRFN1M, MCD24HRFN1M, MCD36HRFN1M, MCD36HRFN1MC, MCDU24HRFN1MC, MFAU12HRFN1M, MUBU12HRFN1MB, MUE36HRFN1MC, MUEU18HRFN1MC
