Description

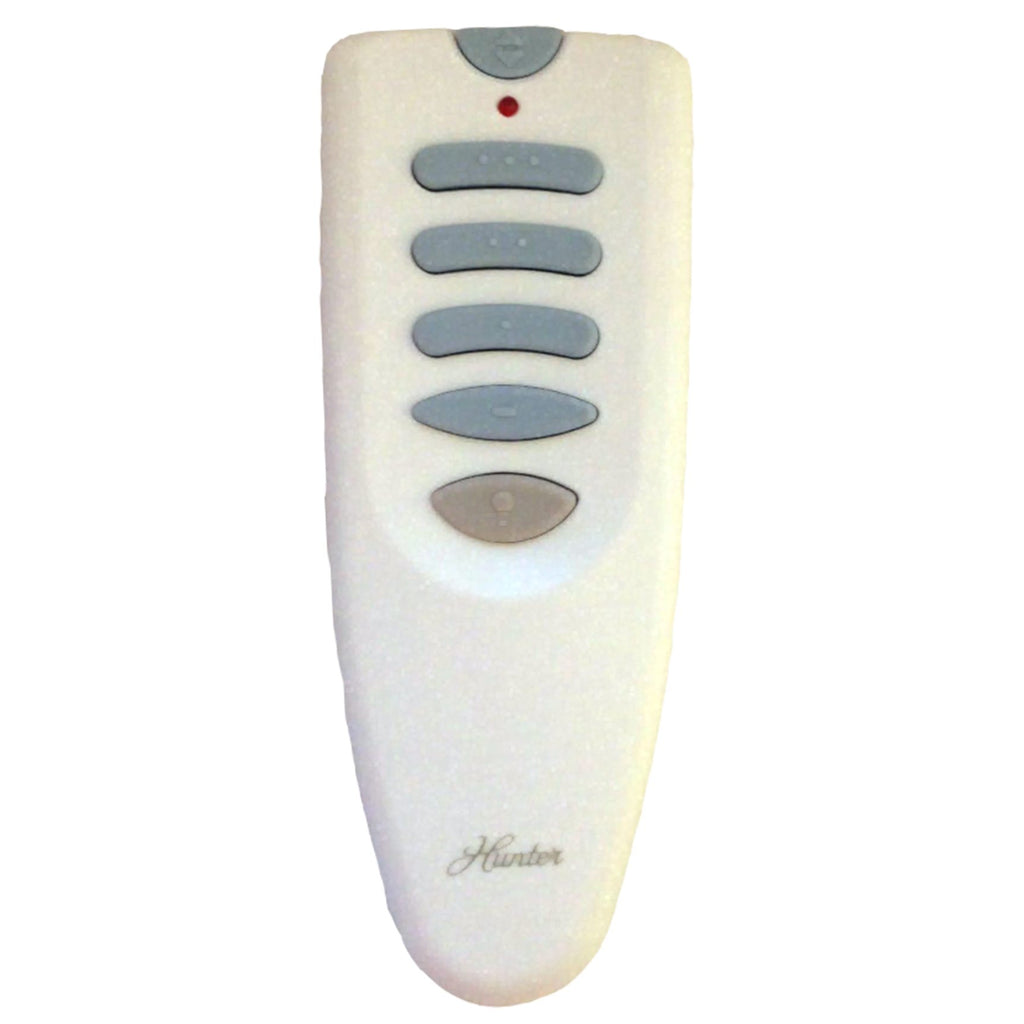

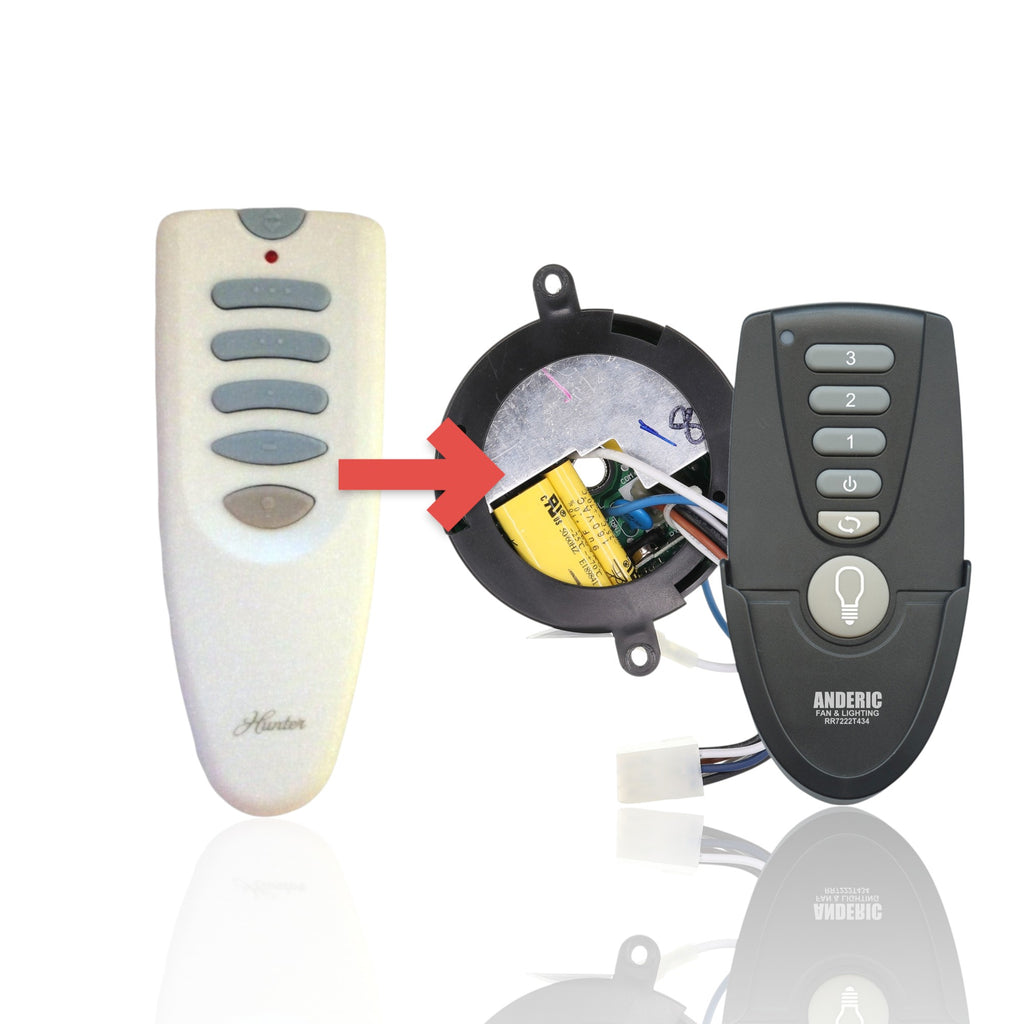

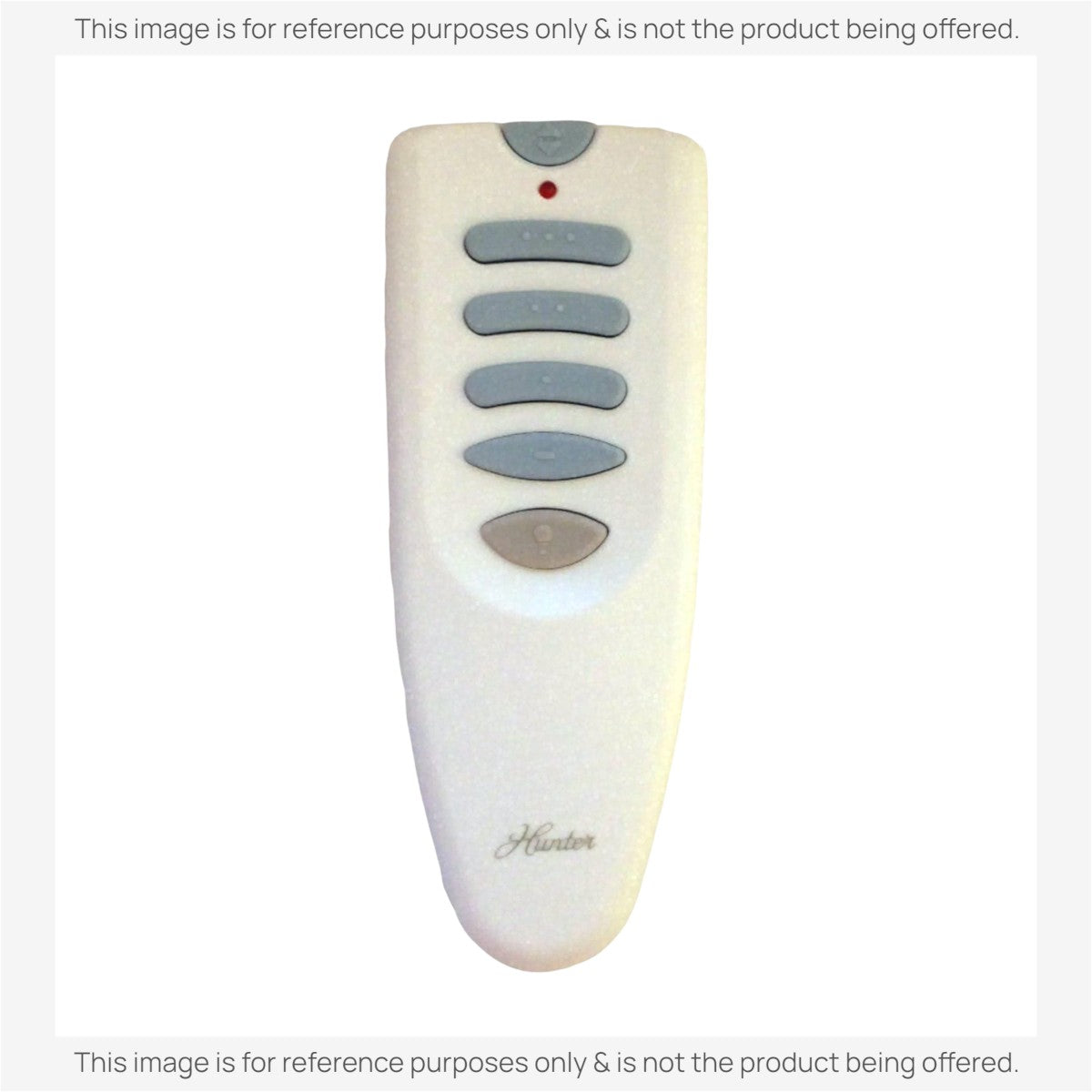

The Anderic MR77A-RR7222T434-KIT is a substitute for the Hunter 8509501/8509502 remote. It is a 434 MHz ceiling fan remote/receiver set for MR77A-type fans.
Specifications
- Kit: Anderic MR77A-RR7222T434-KIT
- Radio frequency (RF): 433.9 MHz
- Battery: 1 A23 (not included)
Good to Know
- 434 MHz only: do not mix with 304 MHz CHQ7222T-family parts
- Key names and layout may differ from the original. Compare your original's buttons before ordering.
Setup / Pairing
- Turn off power to the fan at the wall switch or circuit breaker. A qualified electrician is recommended for installing the receiver.
- Open the fan housing, unscrew and unplug the old receiver, and keep the screws.

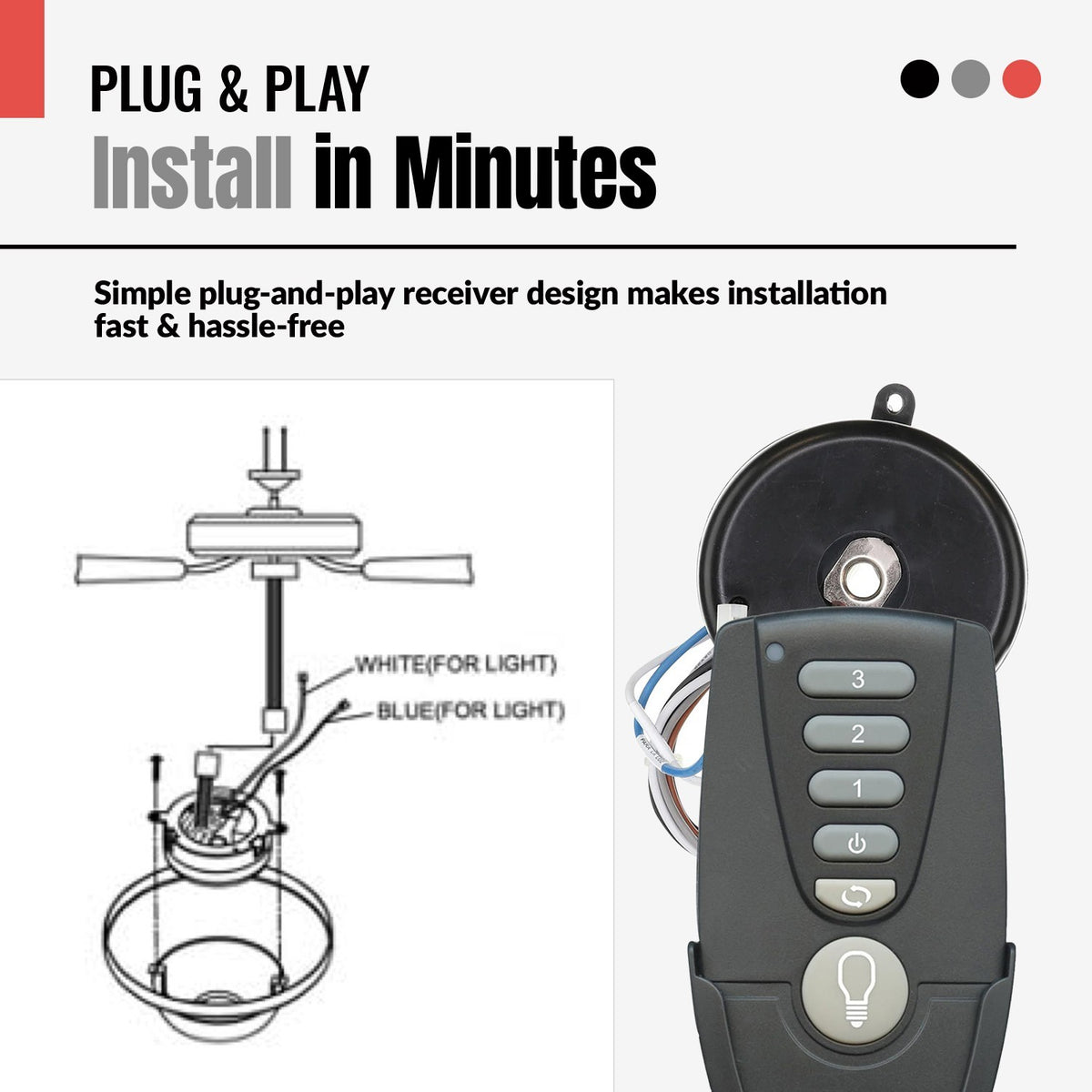

- Plug in the new receiver and make sure the 9-pin square plug clicks into place. If you have a light kit, also connect the blue and white light wires.
- Secure the new receiver in the same place with the existing screws, then reinstall the fan housing.
- On the remote, press firmly on the arrow and slide the battery cover off. Insert an A23 (12V) battery, matching the polarity marks.
- Slide the four code switches to a pattern of your choice. Avoid the default position, and use a different pattern for each fan.
- Turn the fan power off at the circuit breaker or wall switch, then restore it.
- Within 30 seconds, press and hold POWER (FAN OFF) for up to 10 seconds. The fan's downlight blinks twice when it pairs; a fan without a light gives no signal.
- To dim the light, set the DIM switch inside the battery compartment to ON, then press and hold LIGHT.

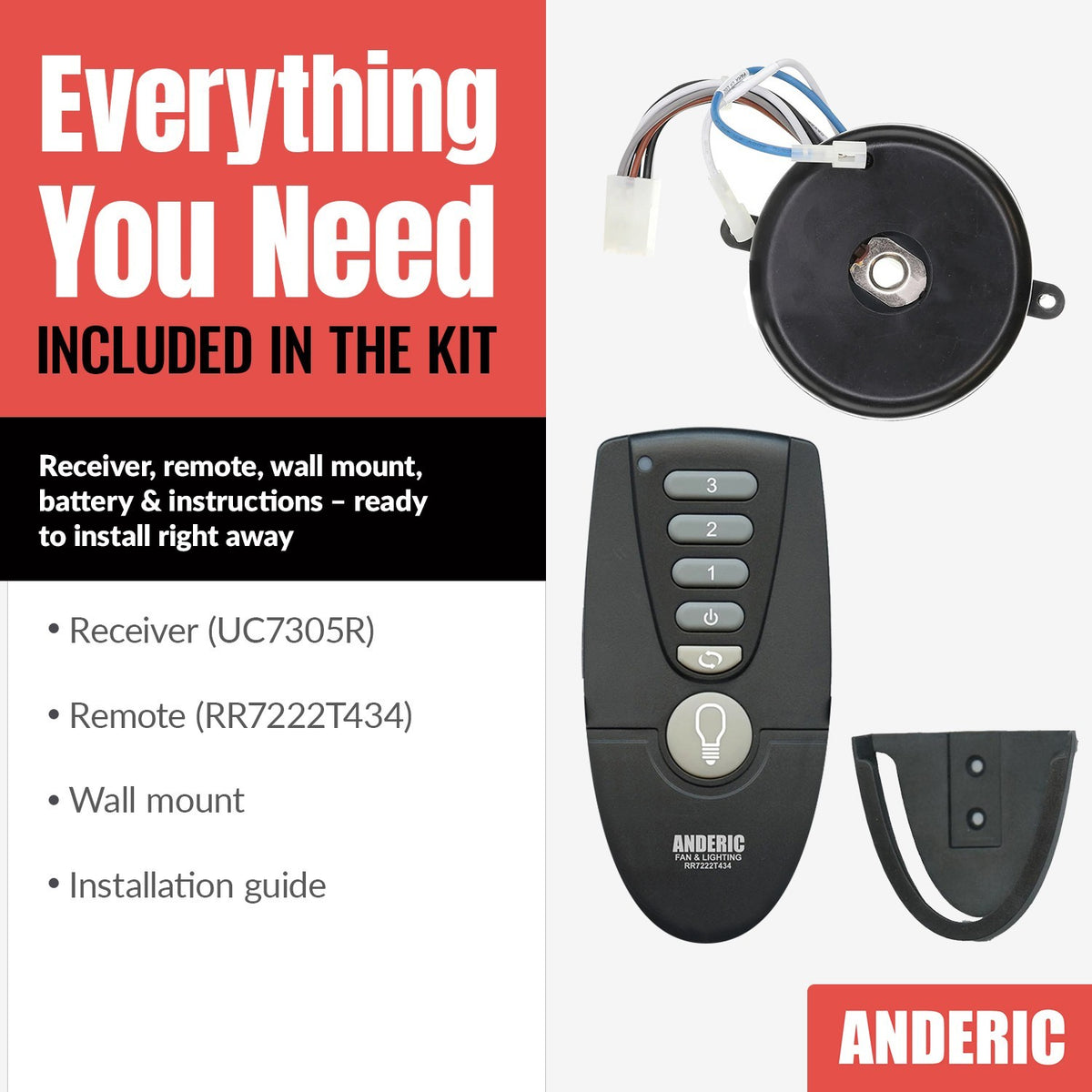

What's in the Box
- 1 remote and 1 receiver
- Wall mount bracket
- Battery not included
Compatible Models
- Hunter 8509501/8509502
- Also works with: 85112-03, 85112-04, 85095-01, 85095-02
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
Specifications
Product help/documentation (if applicable): Installation Guide
Features:
- Replaces your Hunter 8509501/8509502 with a 434 MHz ceiling fan remote/receiver set for MR77A-type fans. Also fits 85112-03, 85112-04, 85095-01 and 85095-02.
- To set it up in place of your Hunter 8509501/8509502, install the kit's receiver, set the remote's four code switches (avoid the default), then turn the fan power off and on. Within 30 seconds, hold POWER (FAN OFF) for up to 10 seconds until the downlight blinks twice.

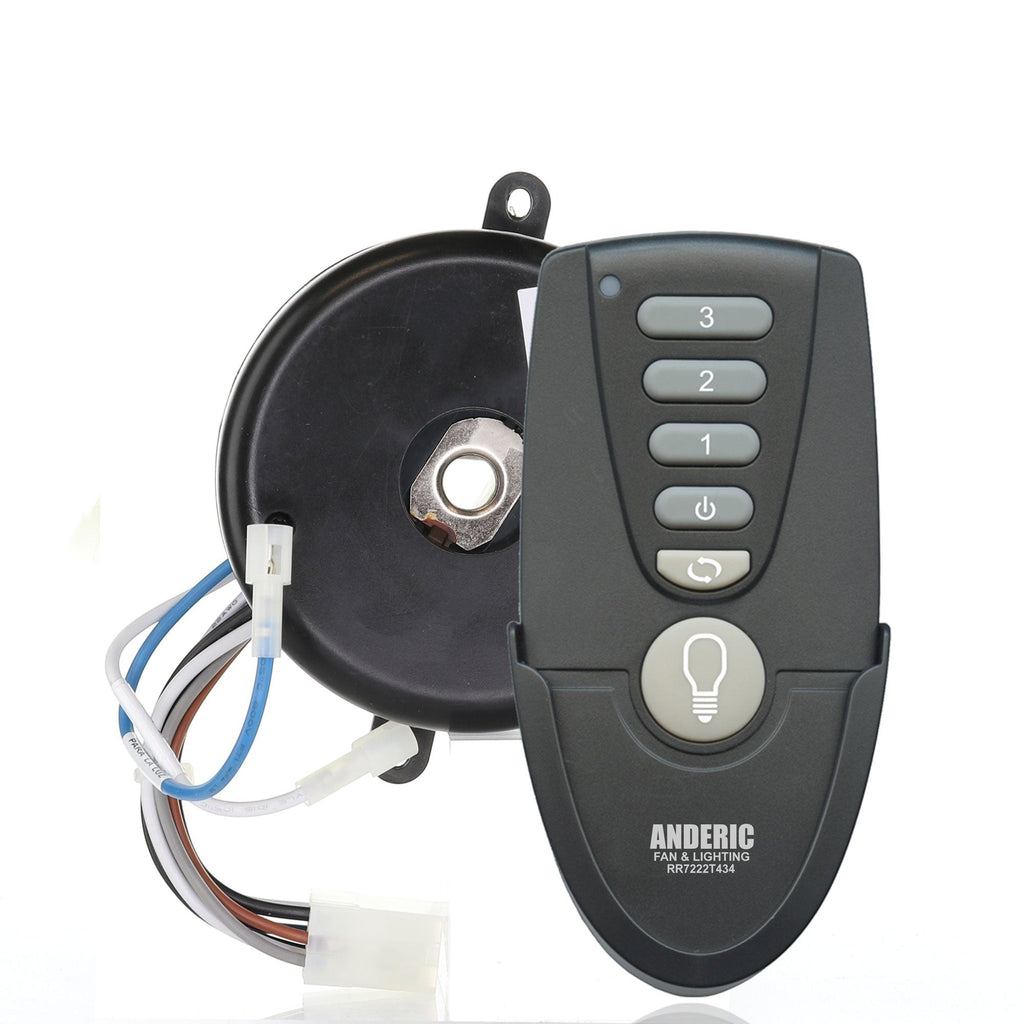

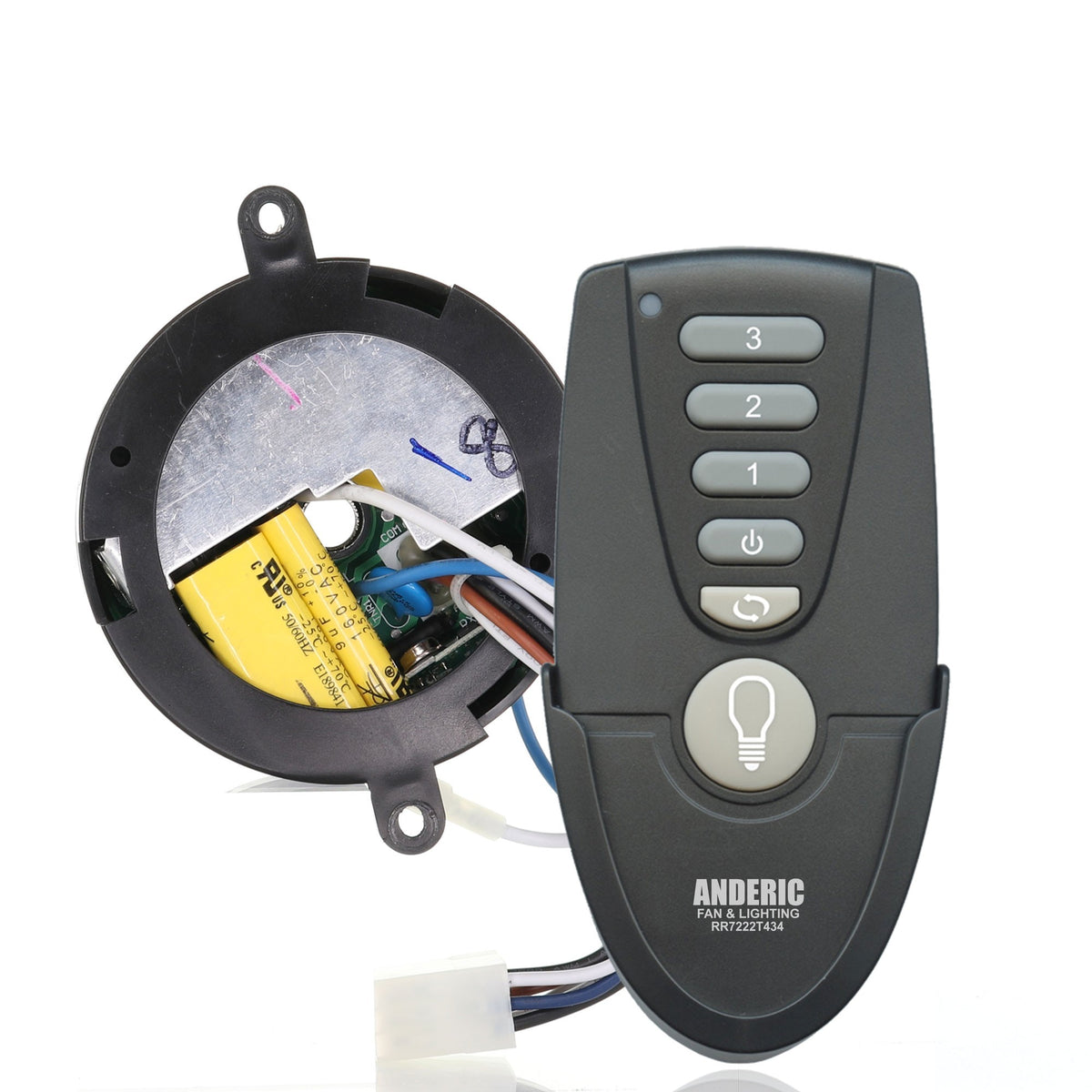

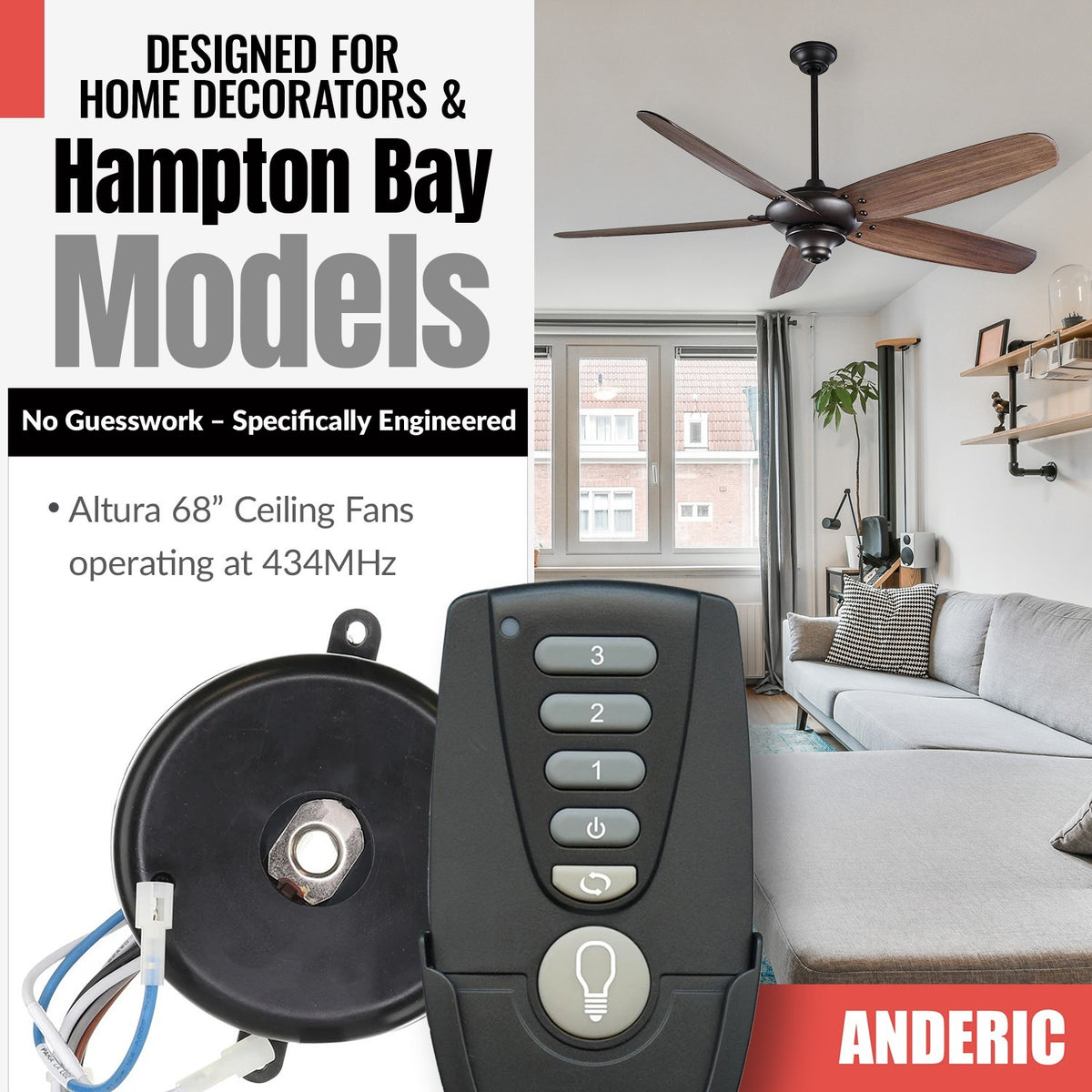

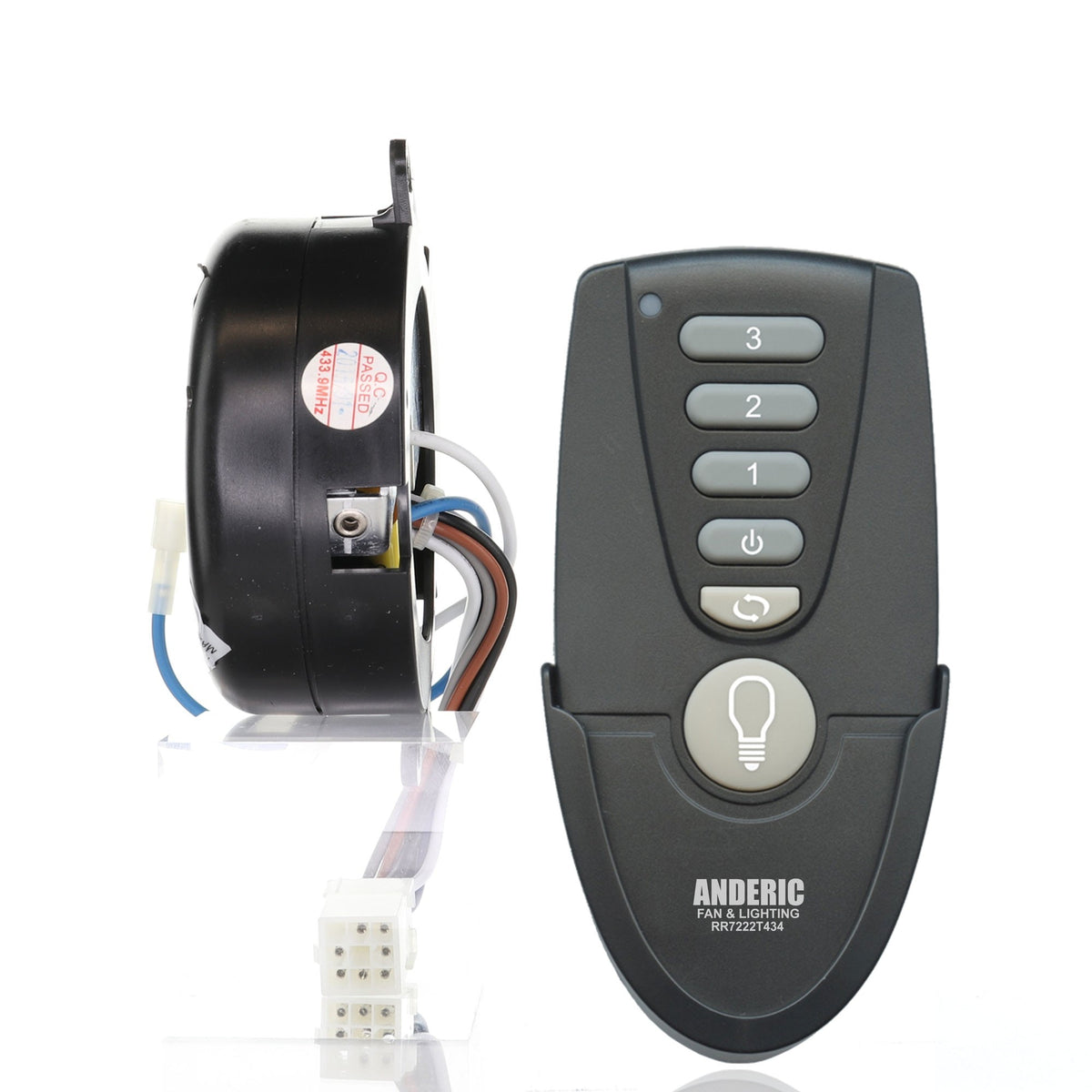

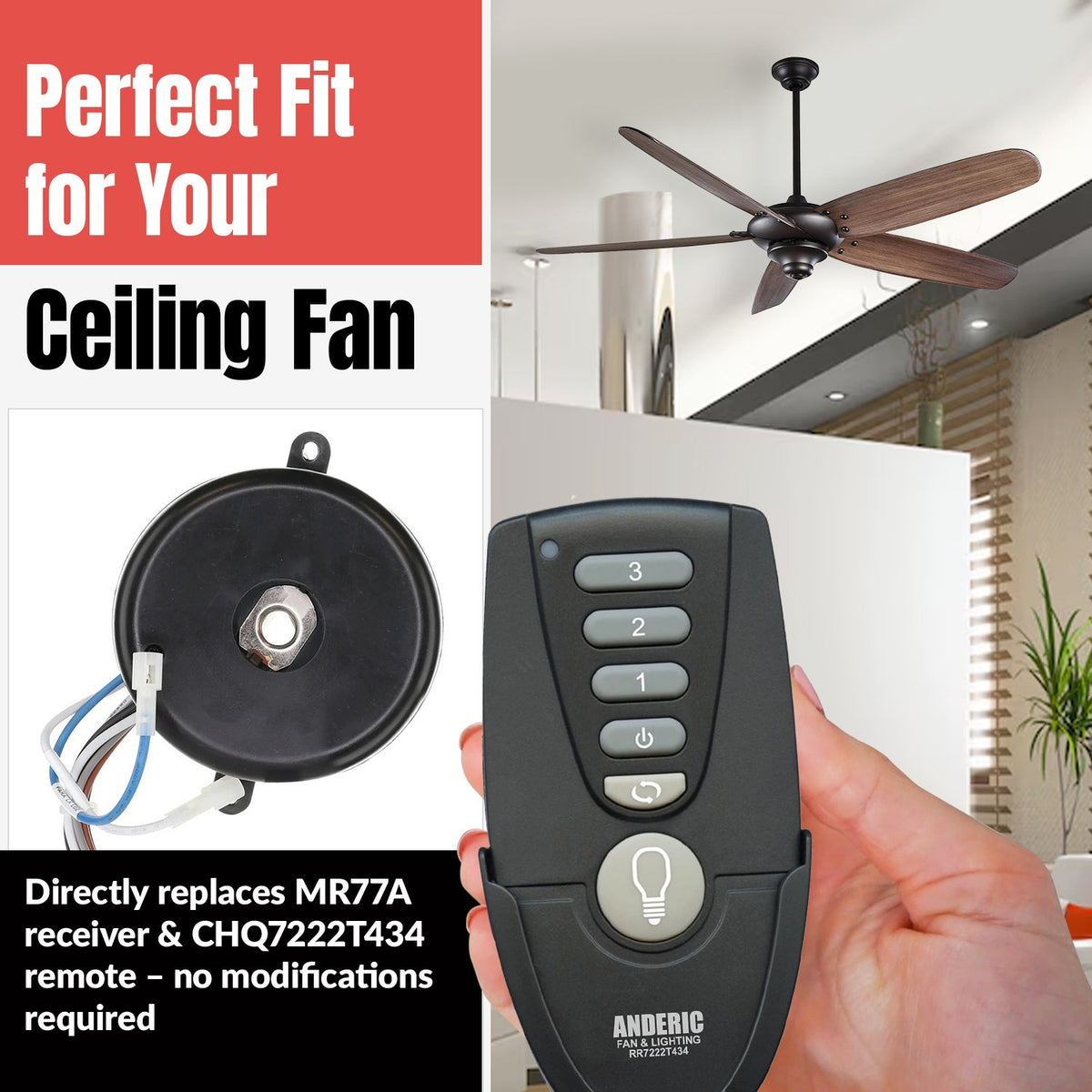

- The MR77A-RR7222T434-KIT is a complete replacement kit, featuring the RRMR77A receiver and RR7222T434 remote control.
- Fan speed, reverse, light and dimming.
- Takes 1 A23 battery, not included. Includes a wall mount.
Part/Model Number: IN2TX13 / 8509501/8509502
Power Information: 1 A23 Required, Not Included
Frequency (if applicable): 433.92 MHz
Compatible with models (if applicable): 8509501, 8509502, 85112-03, 85112-04, 85095-01, 85095-02
