Description
The Anderic MR77A-MOLEX-KIT is a substitute for the Hunter 7063-01A receiver. It is a 434 MHz ceiling fan remote/receiver set for MR77A-type fans.
Specifications
- Kit: Anderic MR77A-MOLEX-KIT
- Radio frequency (RF)
- Battery: 1 A23 (not included)
Good to Know
- 434 MHz only: do not mix with 304 MHz CHQ7222T-family parts
- Key names and layout may differ from the original. Compare your original's buttons before ordering.
Setup / Pairing
What's in the box includes the MR77A receiver, RR7222T434 remote, Molex-to-AMP adapter harness, wall mount, screws and instructions; battery not included. With the breaker off, inspect the original AMP connector and fit the supplied adapter according to its instructions; reassemble before restoring power.
- Turn off the power to the fan at the circuit breaker or wall switch. A qualified electrician is recommended.
- Open the fan housing, unscrew and unplug the old receiver, and keep the screws. Plug in the new receiver so the 9-pin square plug clicks into place; if you have a light kit, also connect the blue and white light wires (use wire nuts if the plugs do not line up). Secure the receiver with the screws and reinstall the housing.
- On the remote, press firmly on the arrow and slide the battery cover off. Insert an A23 (12V) battery (not included), matching the polarity marks.
- Slide the remote's four code switches to a pattern of your choice. Avoid the default position, and use a different pattern for each fan. The receiver has no switches; it learns the remote's pattern in the next steps.
- Turn the fan power off at the circuit breaker or wall switch, then restore it.
- Within 30 seconds, press and hold POWER (FAN OFF) for up to 10 seconds. The fan's downlight blinks twice when it pairs; a fan without a light gives no signal, so test with a speed key.
- If it does not pair, repeat the power cycle and the previous step. If it still fails, check that the remote is the RR7222T434 included in this kit; it works with MR77A receivers.
- To dim the light, set the DIM switch inside the battery compartment to ON, then press and hold LIGHT.

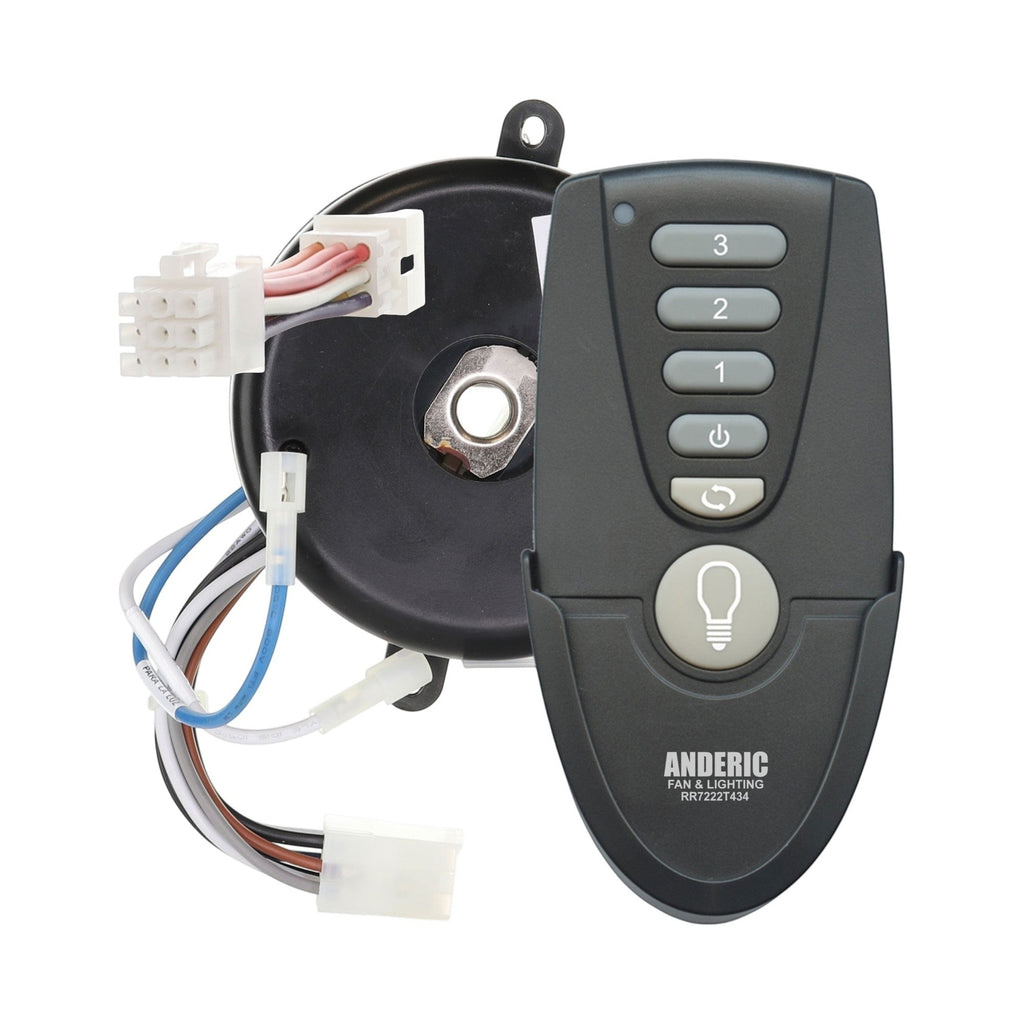

What's in the Box
- 1 remote and 1 receiver
- Battery not included
Compatible Models
- Hunter 7063-01A
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
Specifications
Product help/documentation (if applicable): Installation Instructions
Features:
- Replaces your Hunter 7063-01A with a 434 MHz ceiling fan remote/receiver set for MR77A-type fans.
- To replace the Hunter 7063-01A, set the four code switches under the battery cover (avoid the default). Turn the fan power off and back on, then within 30 seconds hold POWER (FAN OFF) up to 10 seconds until the fan light blinks twice.
- The included 433.9 MHz RR7222T434 remote selects fan speed, light and reverse (if supported by your fan).
- Fan speed, reverse, light and dimming.
- Takes 1 A23 battery, not included. Includes remote and receiver.
Part/Model Number: UC706301A / 7063-01A
Power Information: 1 A23 Required, Not Included
Compatible with models (if applicable): 7063-01A
