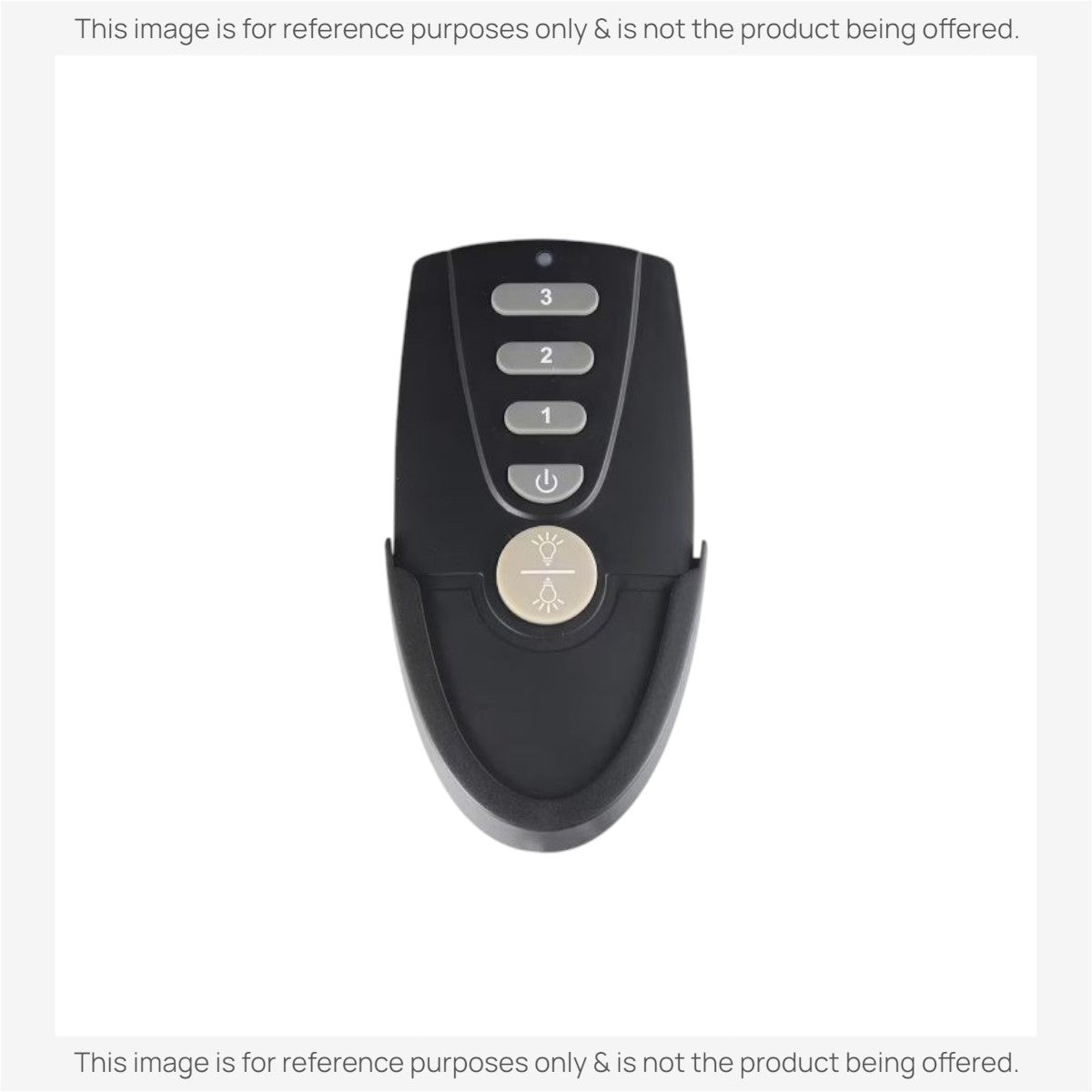

Anderic Substitute Kit for Home Decorators Collection UC7222TUDL Ceiling Fan Remote Control [RR7078TUDLKIT]

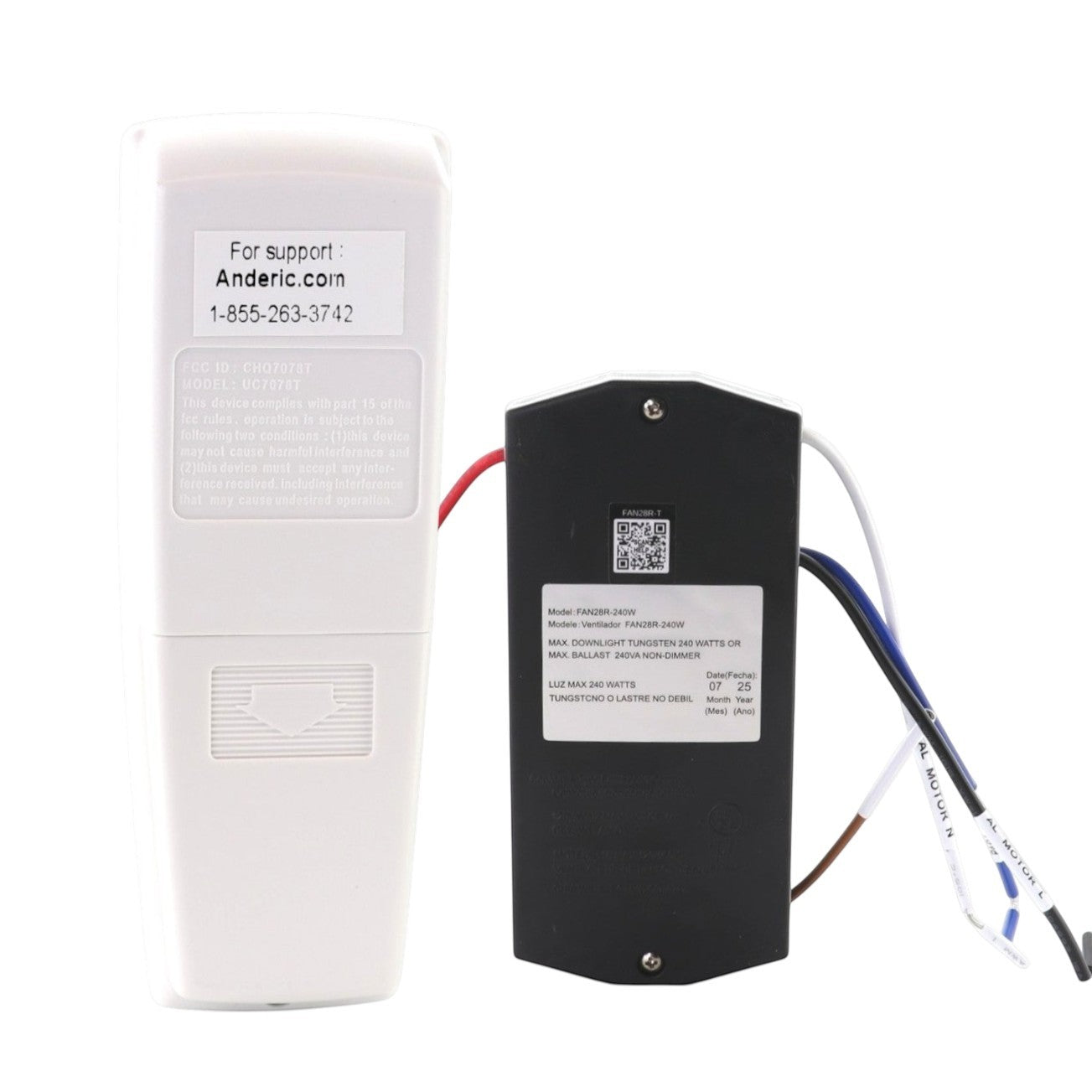

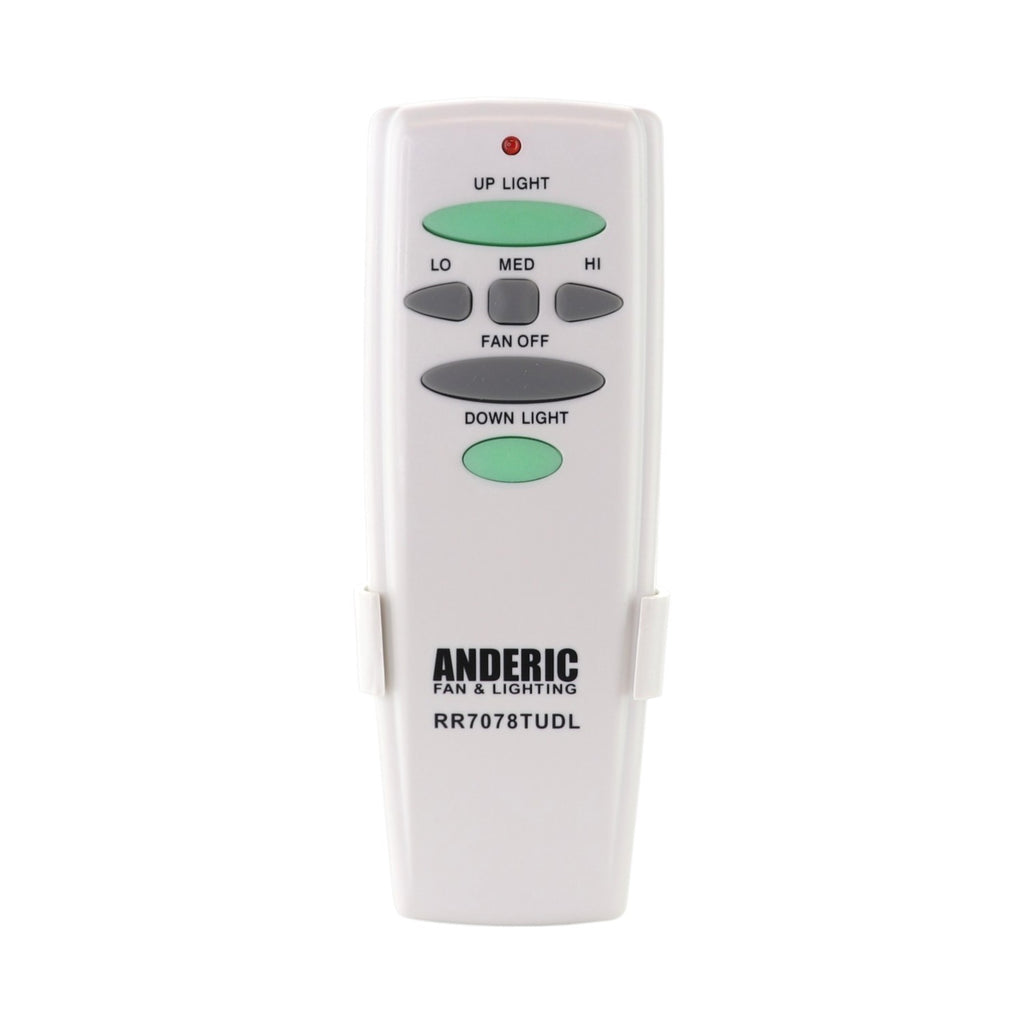

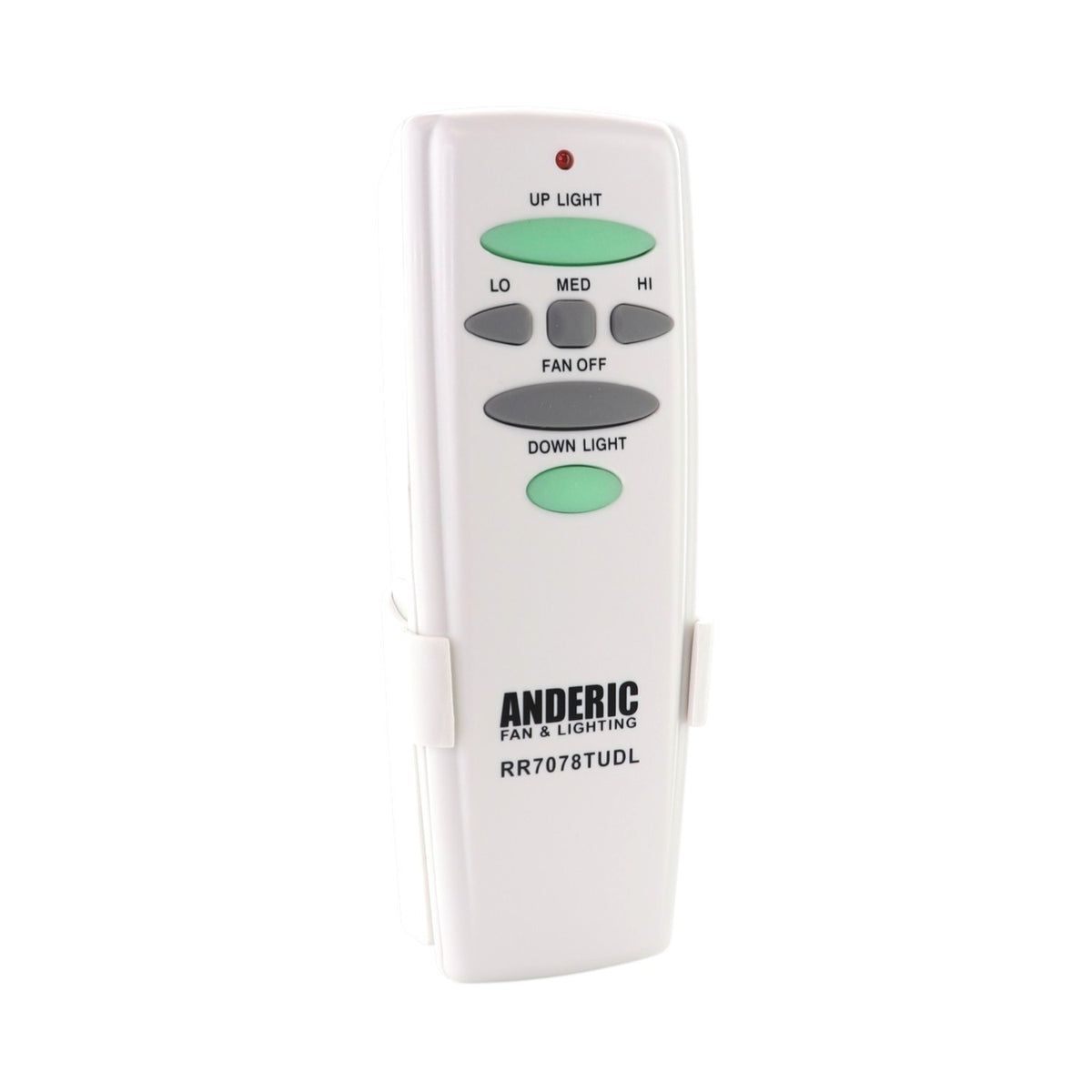

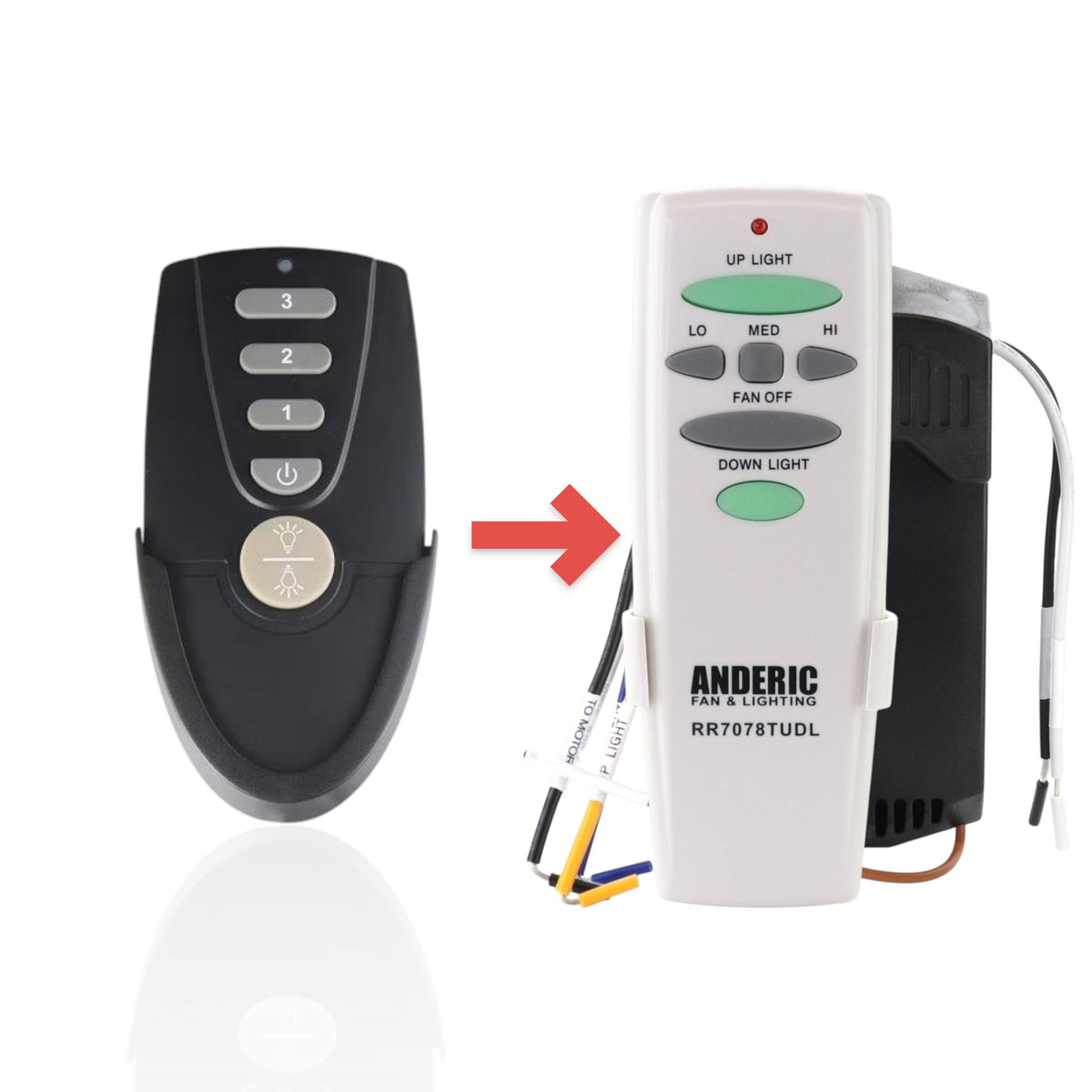

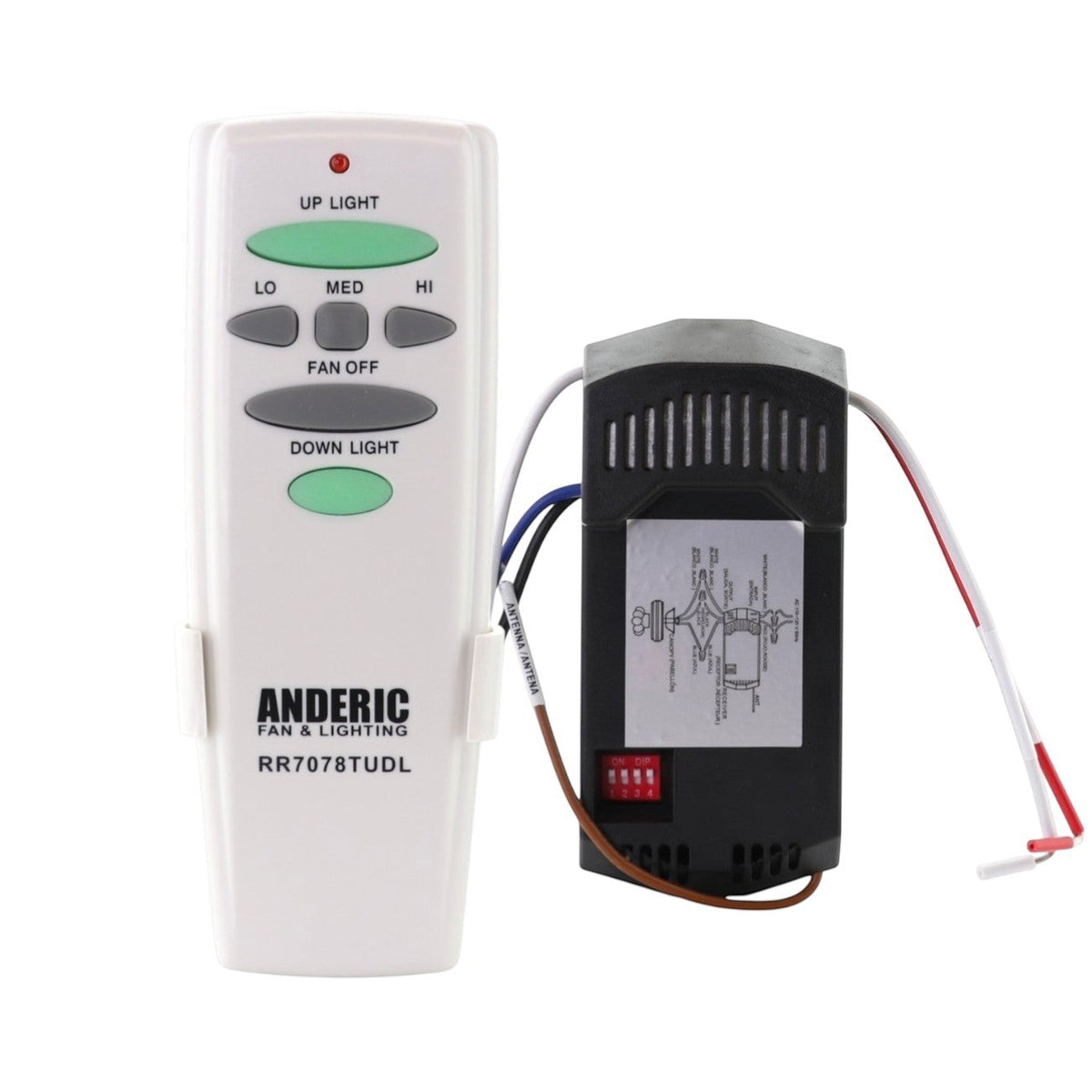

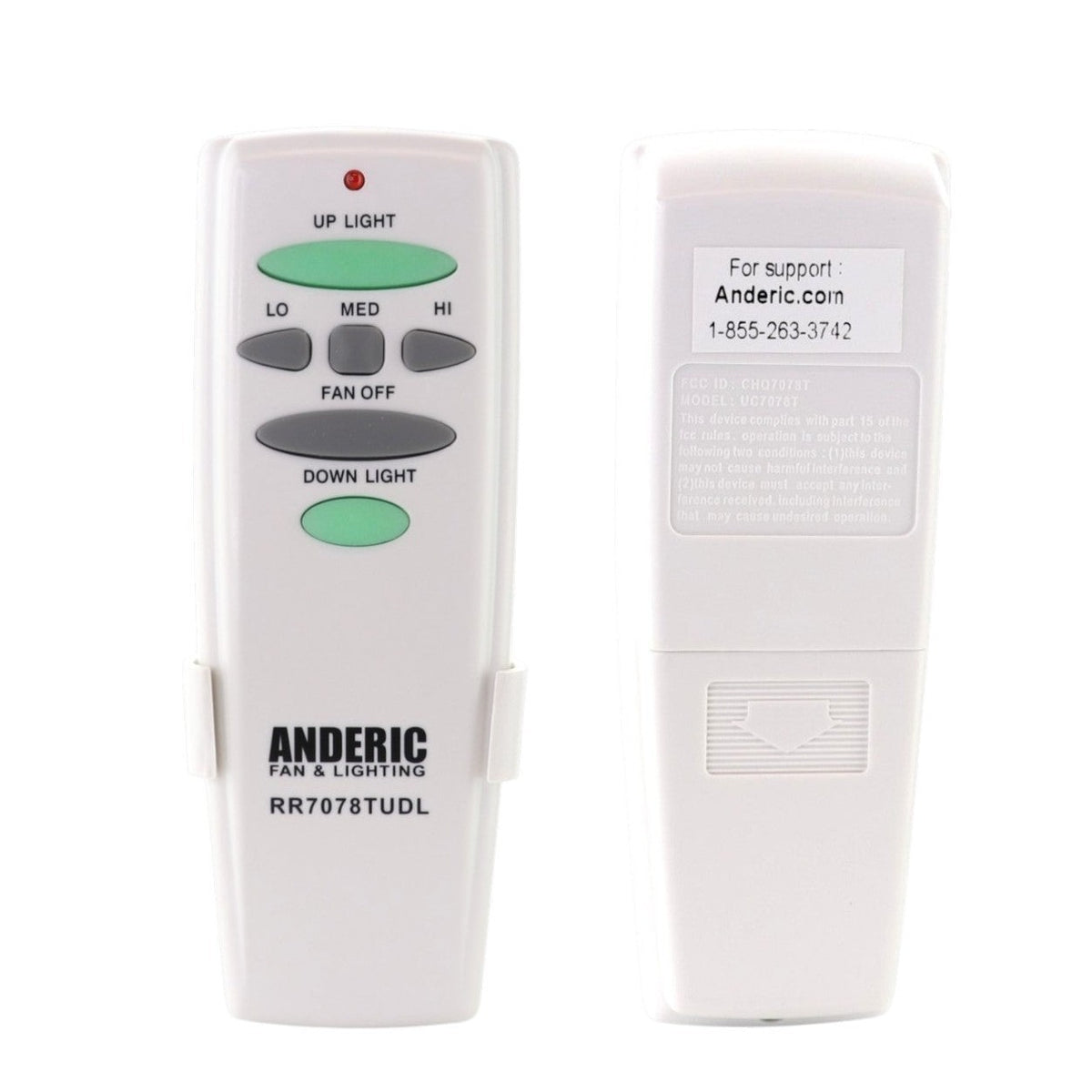

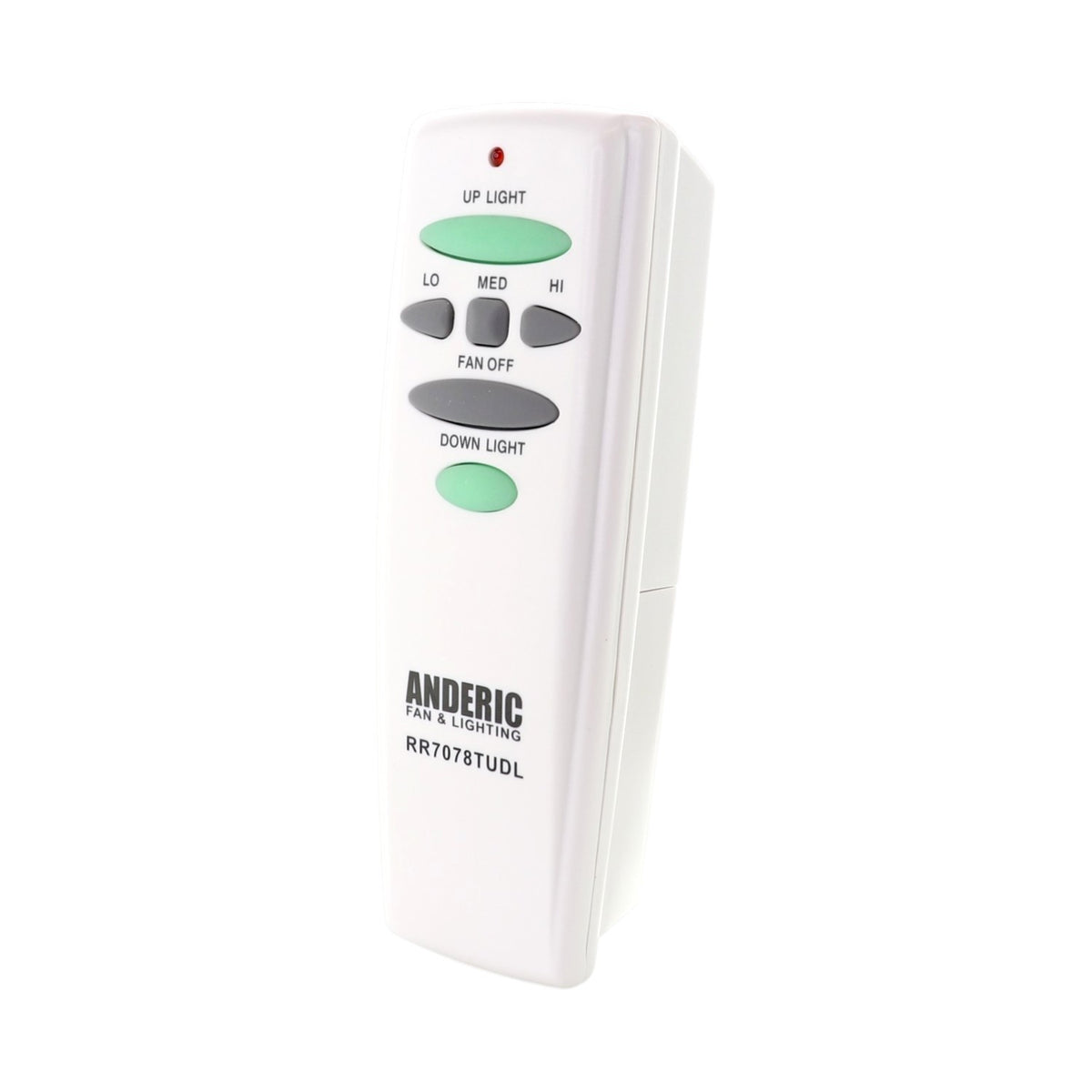

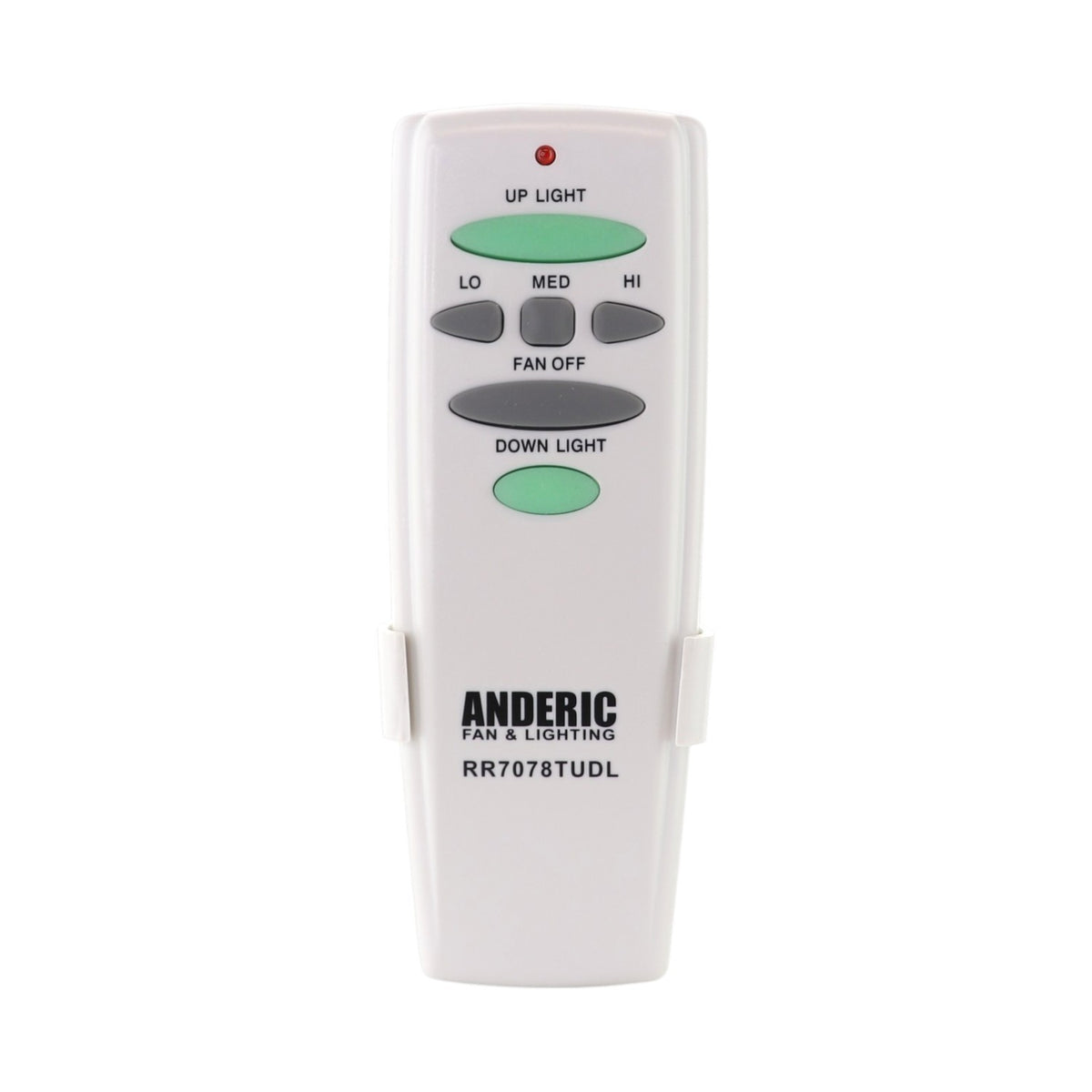

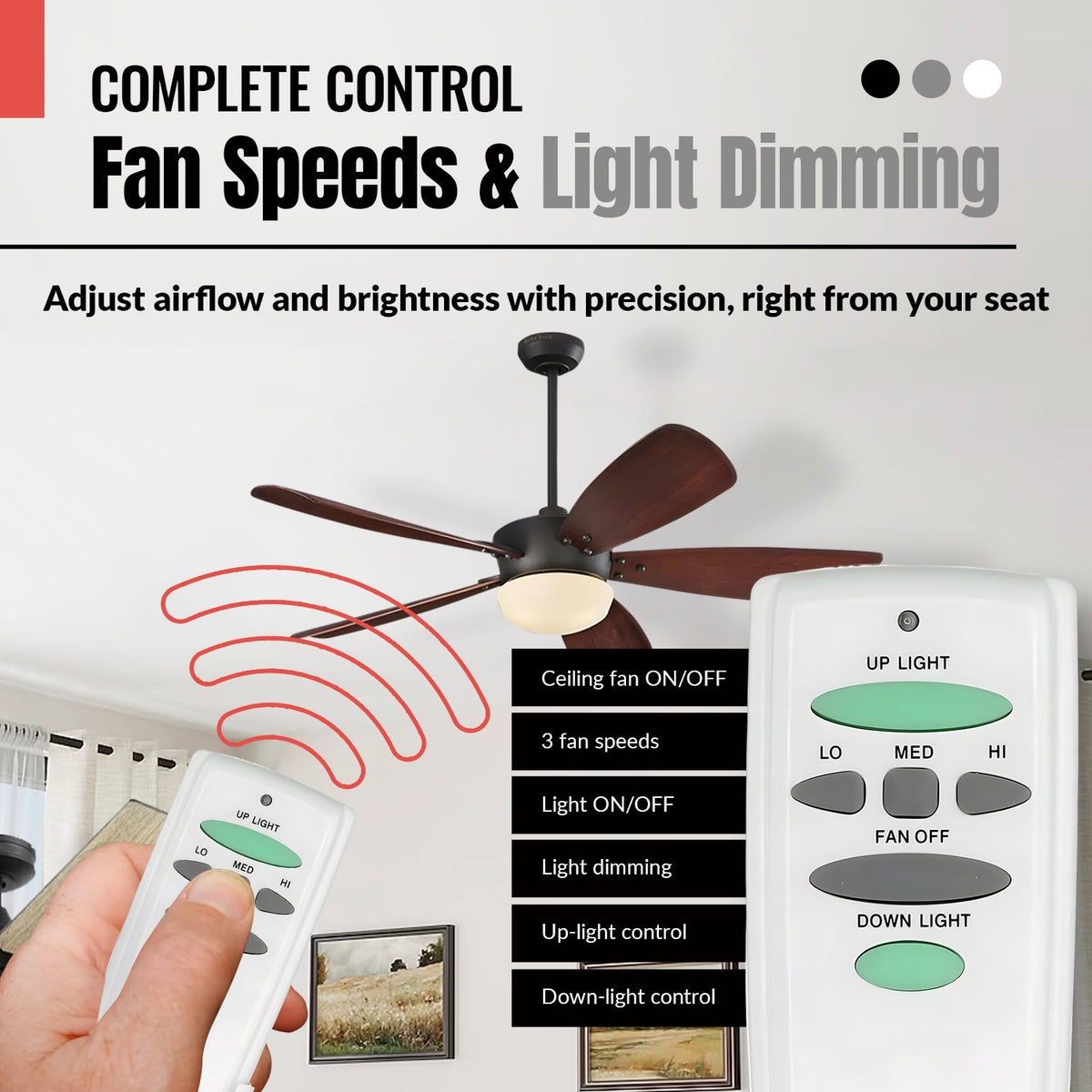

The Anderic RR7078TUDLKIT is a substitute for the Home Decorators Collection UC7222TUDL remote. It is a ceiling fan remote and receiver kit (RR7078TUDL remote, FAN28R-UD receiver and wall mount). It works with Home Decorators Collection ceiling fans such as 1004 589 999, 1004 590 018 and 1004 589 960.

Specifications

• Kit: Anderic RR7078TUDLKIT
• Radio frequency (RF): 304 MHz
• Battery: 1 9-Volt (not included)

Good to Know

• It comes with its own receiver and remote; the existing receiver and remote are not used.
• For 3-speed AC ceiling fans with up and down lights; the receiver is wired into the fan canopy.
• Key names, layout and the look of the case may differ from the original. Compare your original's buttons before ordering.

Setup / Pairing

Complete all receiver DIP, wiring, and canopy work with the circuit breaker off; reassemble, then restore power to test. If you later need to access the receiver again, isolate power at the breaker first.

Turn off power at the circuit breaker before opening the canopy or touching or adjusting the receiver. Match or record receiver switches with power off; close covers, then restore power to test. If you are not opening the receiver, you may try remote-only code patterns.

1. Turn the power to the fan off at the circuit breaker. Install the receiver in the fan canopy following the wiring instructions included with the kit, then restore power.

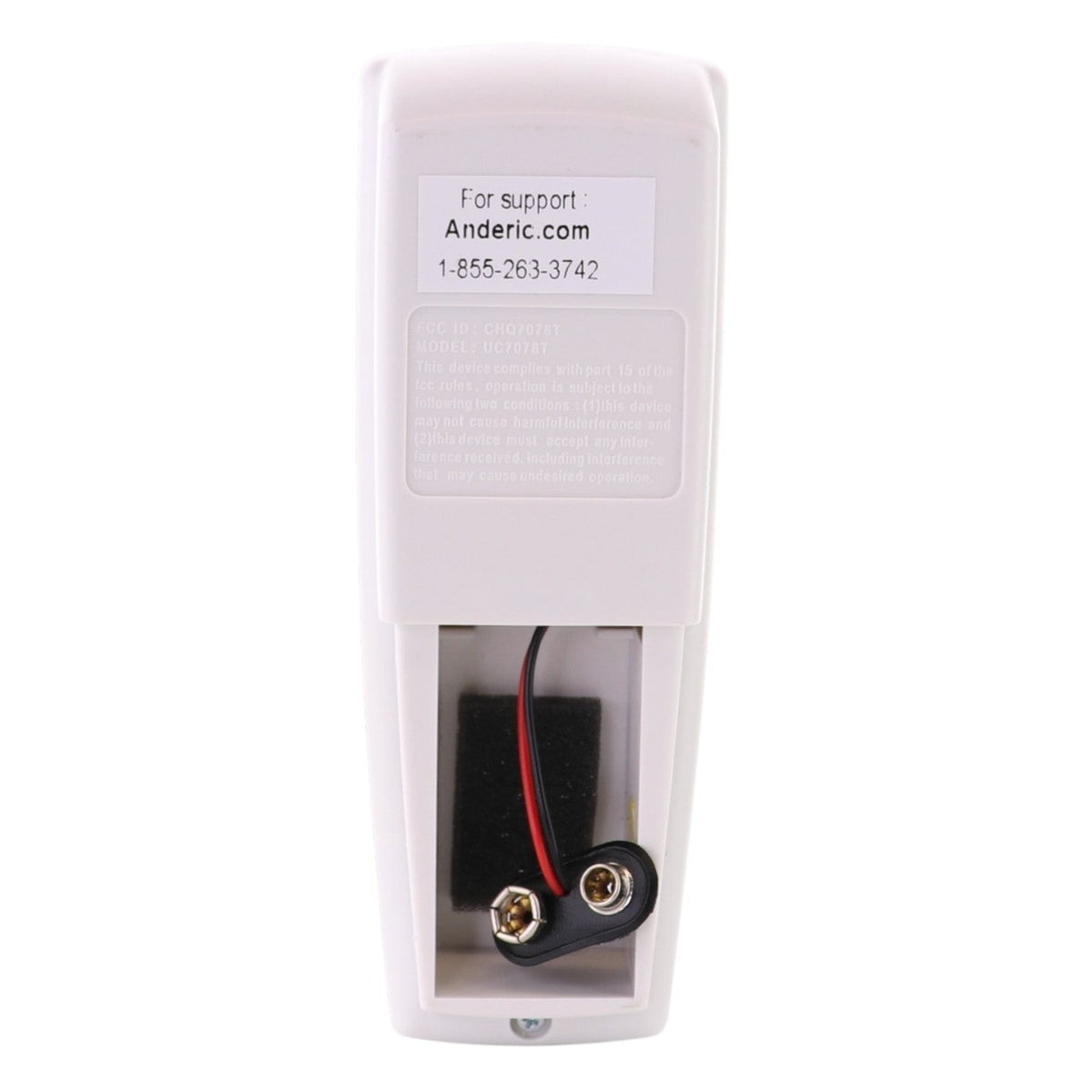

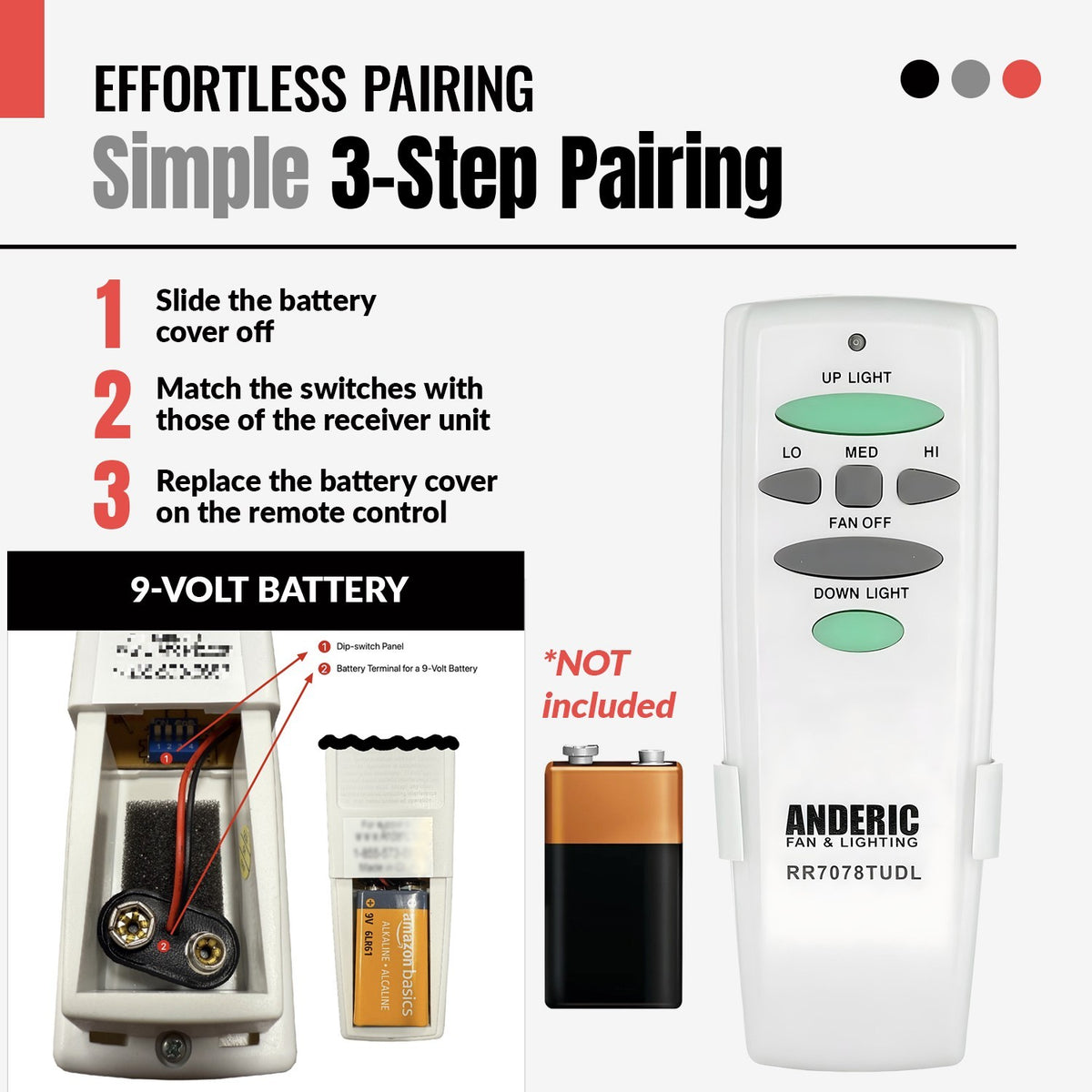

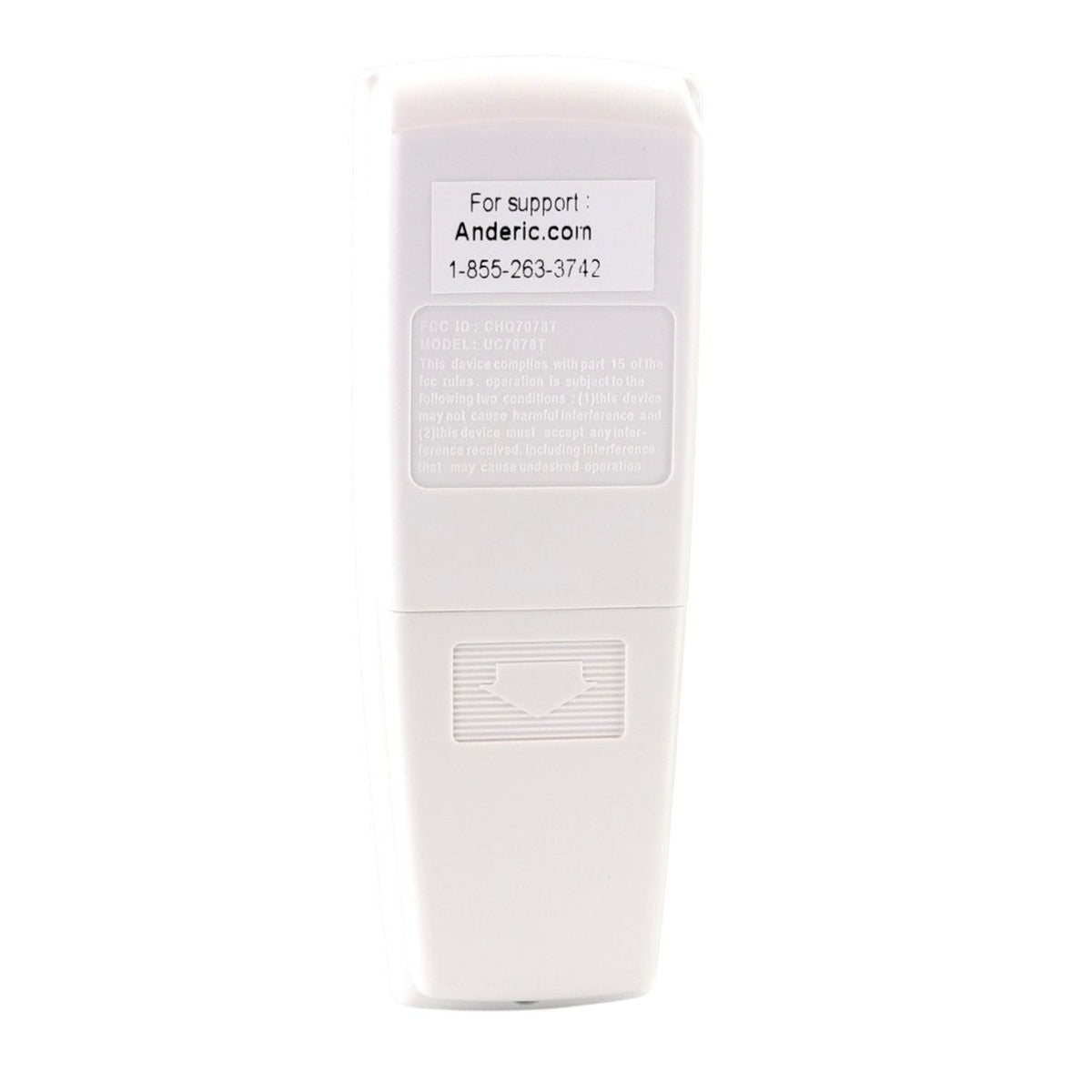

2. Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
3. With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
4. Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
5. Insert the battery (not included), matching the polarity marks, and replace the battery cover.
6. Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
7. If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
8. If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.

What's in the Box

• 1 remote and 1 receiver
• Battery not included

Compatible Models

• Home Decorators Collection UC7222TUDL
• Supplied with: Colemont 52 in. Integrated LED fans 51820, 51821, 51822, 51824, 52-BENT, 1004589999, 1004590018, 1004589960, 1004589953

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
