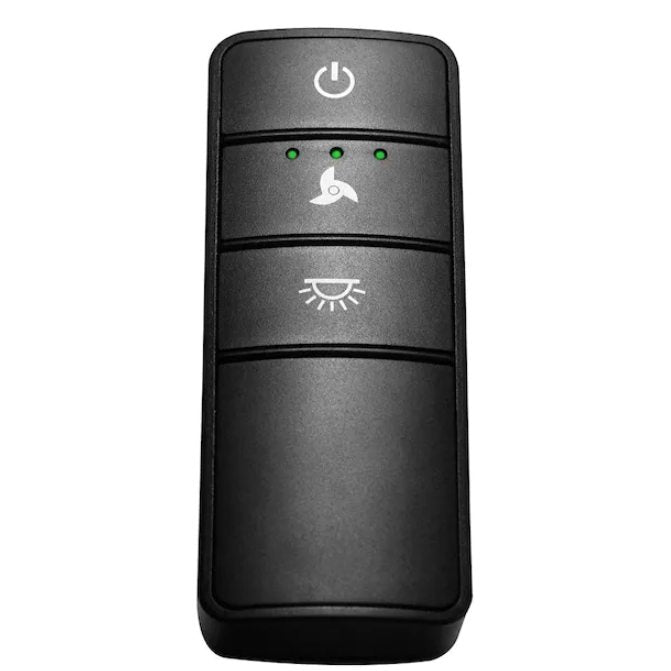

This is a TR220A 3-speed ceiling fan remote kit with a remote and a receiver. Codes are set with dip switches.
Specifications
- Radio frequency (RF)
- Batteries: 2 AAA (not included)
- Light: press to toggle, hold to dim
- Do not use it with a variable (rheostat) wall control.
Setup / Pairing
Complete all receiver DIP, wiring, and canopy work with the circuit breaker off; reassemble, then restore power to test. If you later need to access the receiver again, isolate power at the breaker first.
Turn off power at the circuit breaker before opening the canopy or touching or adjusting the receiver. Match or record receiver switches with power off; close covers, then restore power to test. If you are not opening the receiver, you may try remote-only code patterns.
Setting the code on the receiver
- Slide the receiver's dip switches to EXACTLY the same positions as the remote. The remote and receiver only work together when both patterns match.
- Insert the silicone rubber plug into the hole on the receiver to cover the dip switches.
Setting the code on the remote
- Remove the battery cover by pressing firmly on the arrow and sliding it off.
- Slide the code (dip) switches up or down to your choice. The factory setting is up.
- For incandescent bulbs, slide the O/D switch to "D"; otherwise set it to "O".
- Install the battery (not included) and replace the battery cover.
What's in the Box
- 1 remote and 1 receiver
- Batteries not included
Compatible Models
- ceiling fans wired with the included TR220A receiver
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
