Anderic Substitute for Hampton Bay TR240B Ceiling Fan Remote Control for HubSpace Wifi 2AQZU-18016 [RRTR227B]

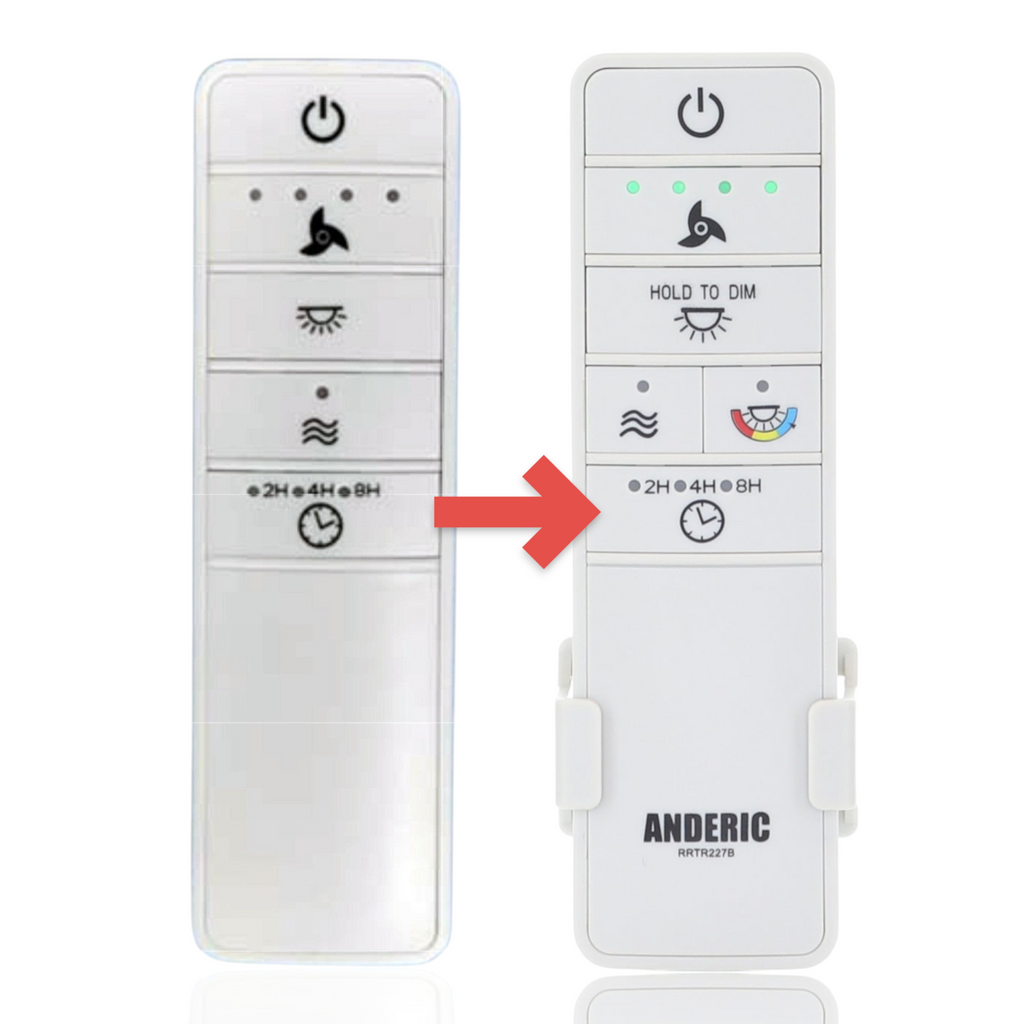

The Anderic RRTR227B is a substitute for the Hampton Bay TR240B (FCC ID 2AQZU-18016) handheld remote on HubSpace ceiling fans whose receiver has 4 DIP switches. It replaces the handheld only; the HubSpace app, Wi-Fi and voice control stay on your fan's receiver.

Specifications

• Shipped remote: Anderic RRTR227B
• Radio frequency (RF): 304.25 MHz
• Pairing: 4 DIP switches in the battery compartment
• Batteries: 2 AAA (not included)

Good to Know

• Works with HubSpace fans and the Hampton Bay 76278 smart remote kit that came with the TR240B, when the receiver in the fan canopy has 4 DIP switches.
• Will not work with a learn-only receiver (one that pairs with a learn or pair button instead of DIP switches).
• This remote has no Wi-Fi. The HubSpace app, Alexa and Google Assistant keep working through your fan's receiver, as before.

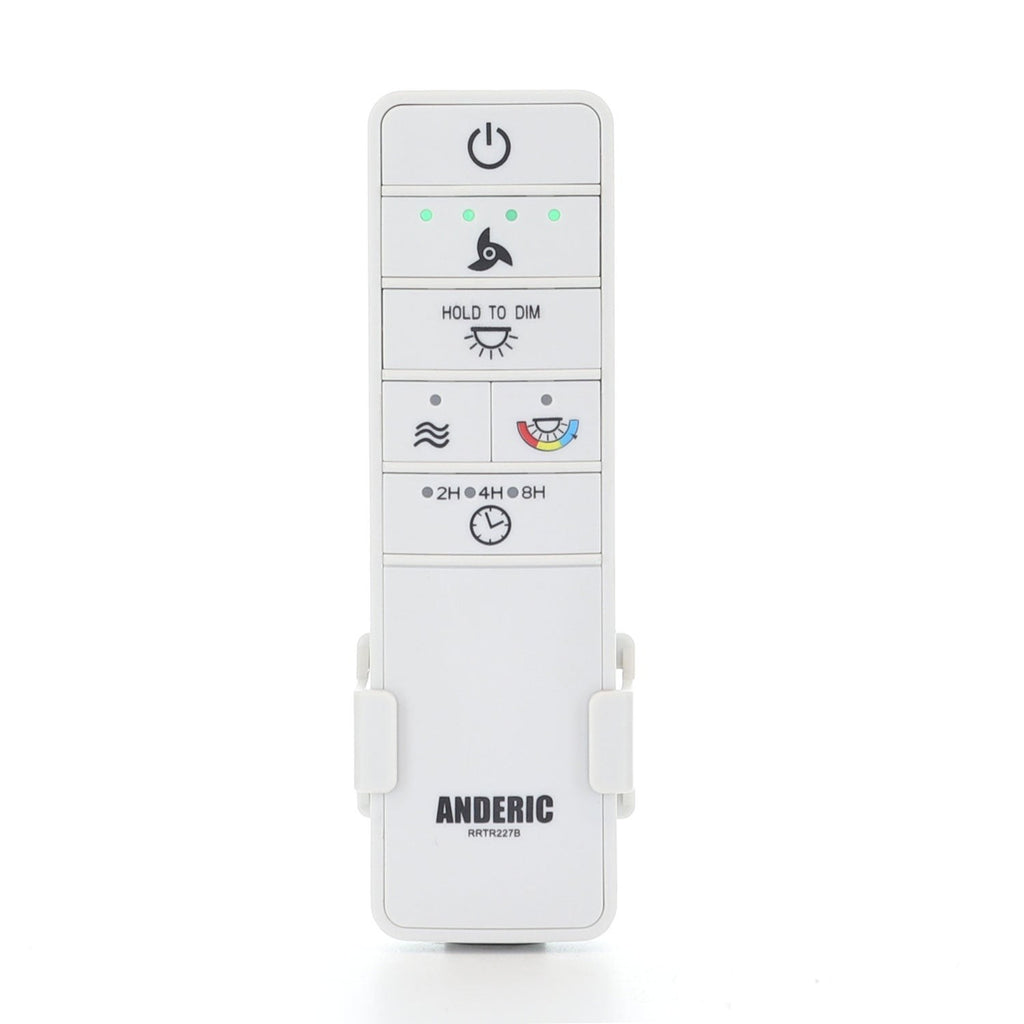

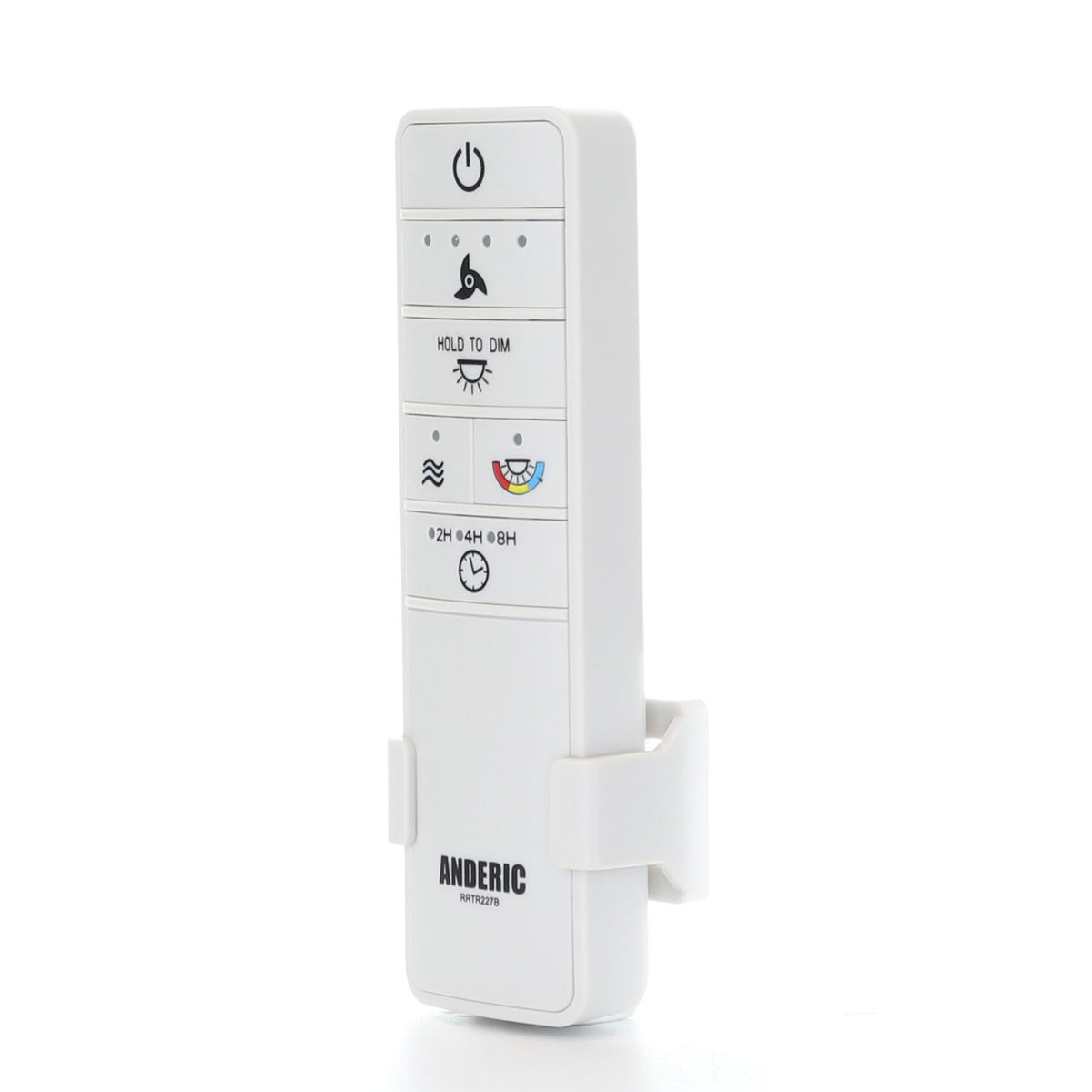

• Buttons: power on/off, fan speed 1-4 with speed lights, light on/off (press and hold to dim), Comfort Breeze, 2/4/8-hour fan timer, and light color temperature (2700K to 6500K). The color button works only if your fan's light supports color change.
• Fan direction (reverse) is set with the slide switch on the fan's motor housing, not on the remote.
• Set the fan's pull chain (if it has one) to high speed and the light to on before using the remote.

Setup / Pairing

1. Turn off power to the fan at the breaker before opening the canopy to reach the receiver.
2. Remove the remote's battery cover by pressing firmly on the arrow and sliding it off.

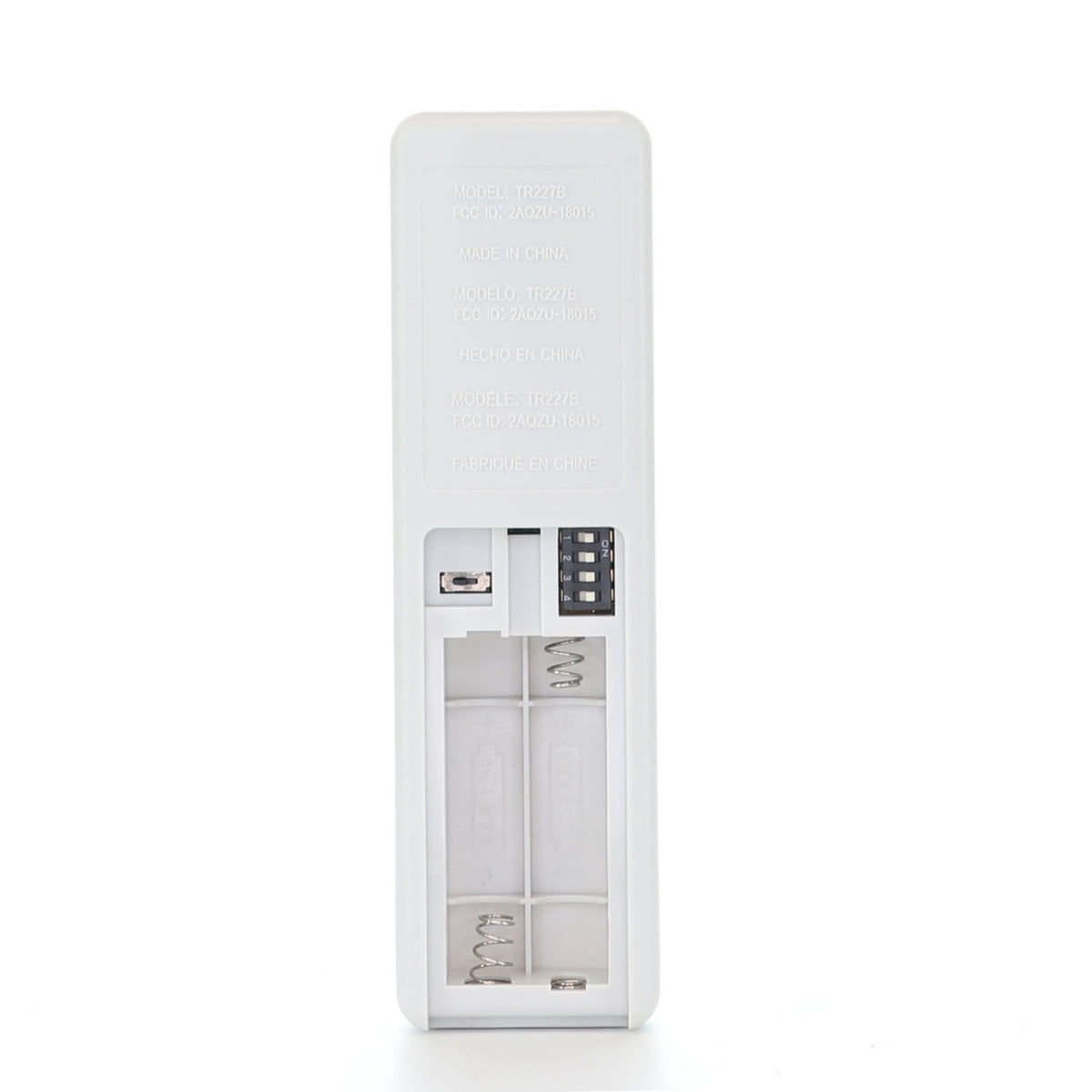

3. Slide the 4 DIP switches in the battery compartment up or down to a pattern of your choice. The factory setting is all up. You can also copy the pattern from your old TR240B.
4. Pull the rubber plug from the receiver and set its 4 DIP switches to exactly the same pattern. Replace the plug.
5. Set the D/O switch in the battery compartment: D turns light dimming on (dimmable bulbs or LED), O turns it off (non-dimmable bulbs).
6. Install 2 AAA batteries (not included), matching the polarity marks, and replace the battery cover.
7. Restore power and test the fan speeds and light. If you cannot reach the receiver, try the 16 switch patterns one at a time until the fan responds.

What's in the Box

• 1 Anderic RRTR227B remote

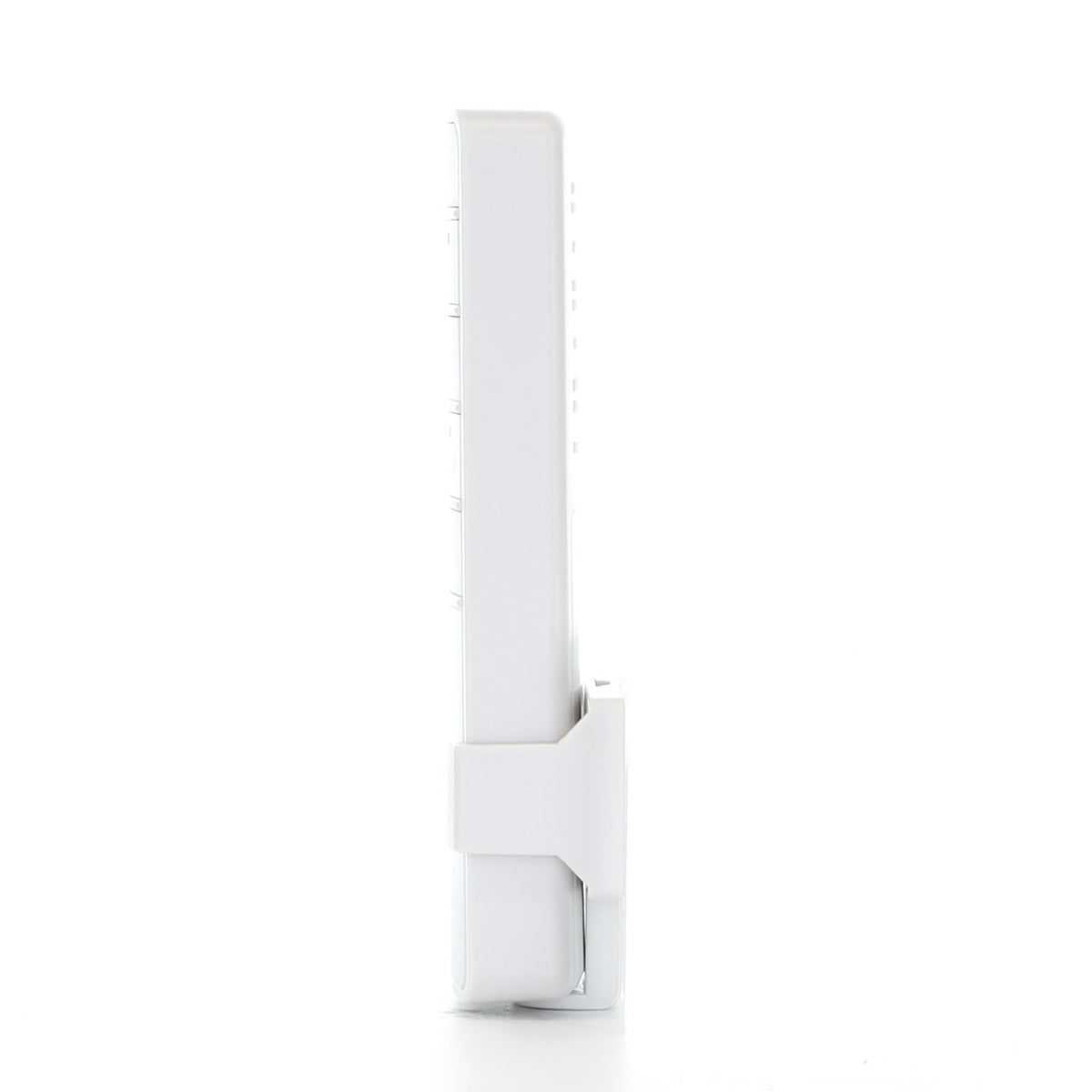

• Wall mount bracket
• Batteries not included

Compatible Models

• Hampton Bay TR240B, 2AQZU-18016
• Hampton Bay 76278 Universal Smart Wi-Fi 4-Speed Remote Control Kit (TR240B handheld)

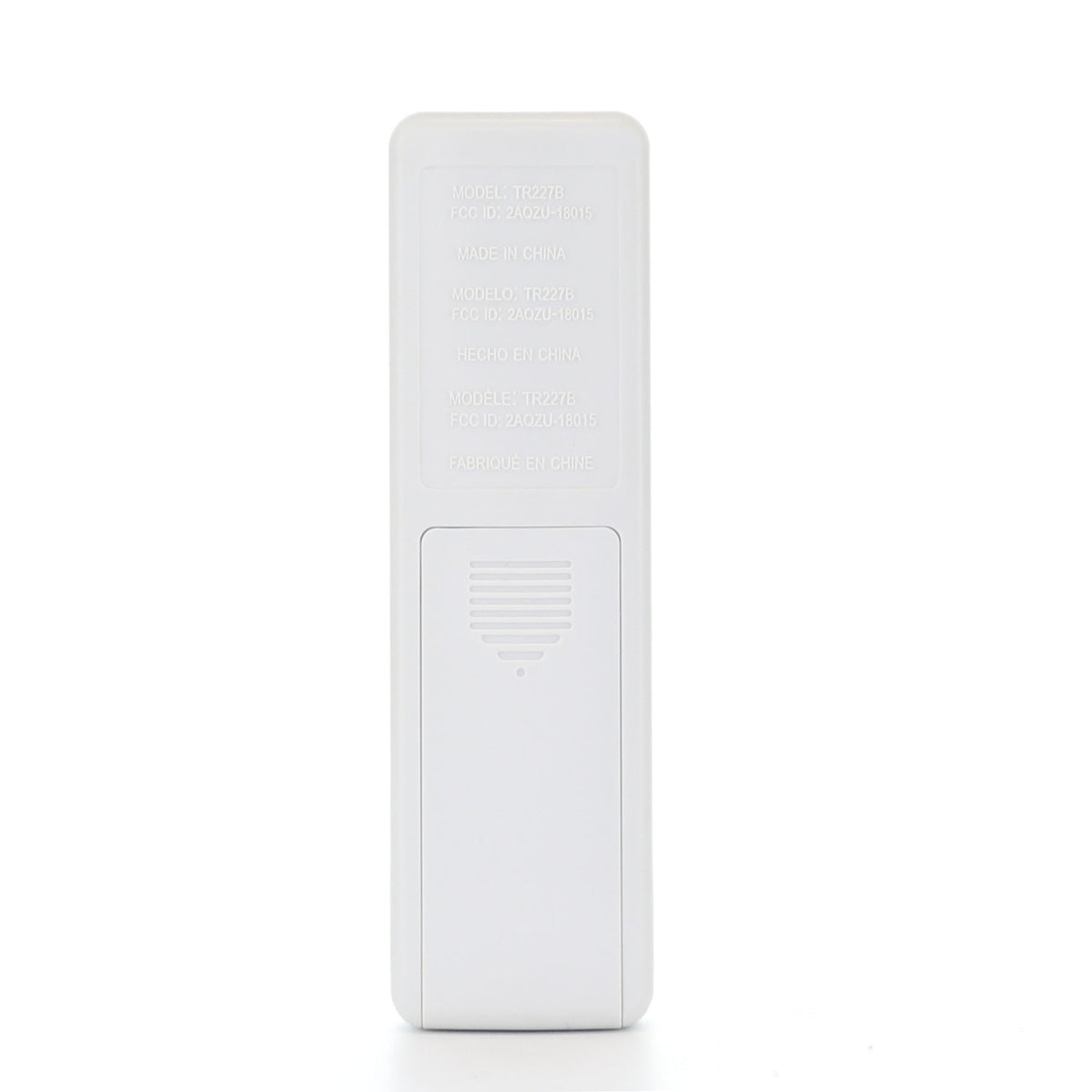

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
