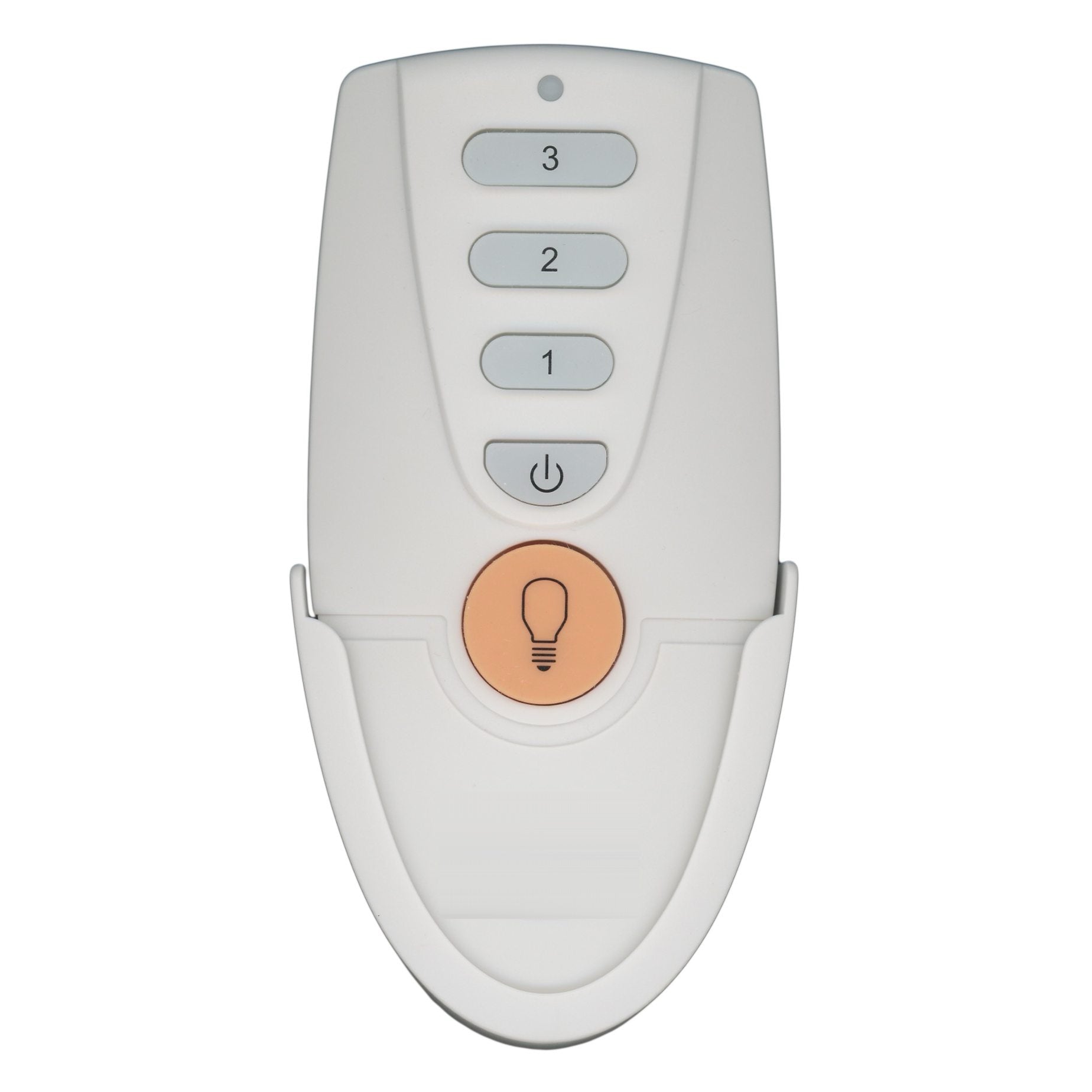

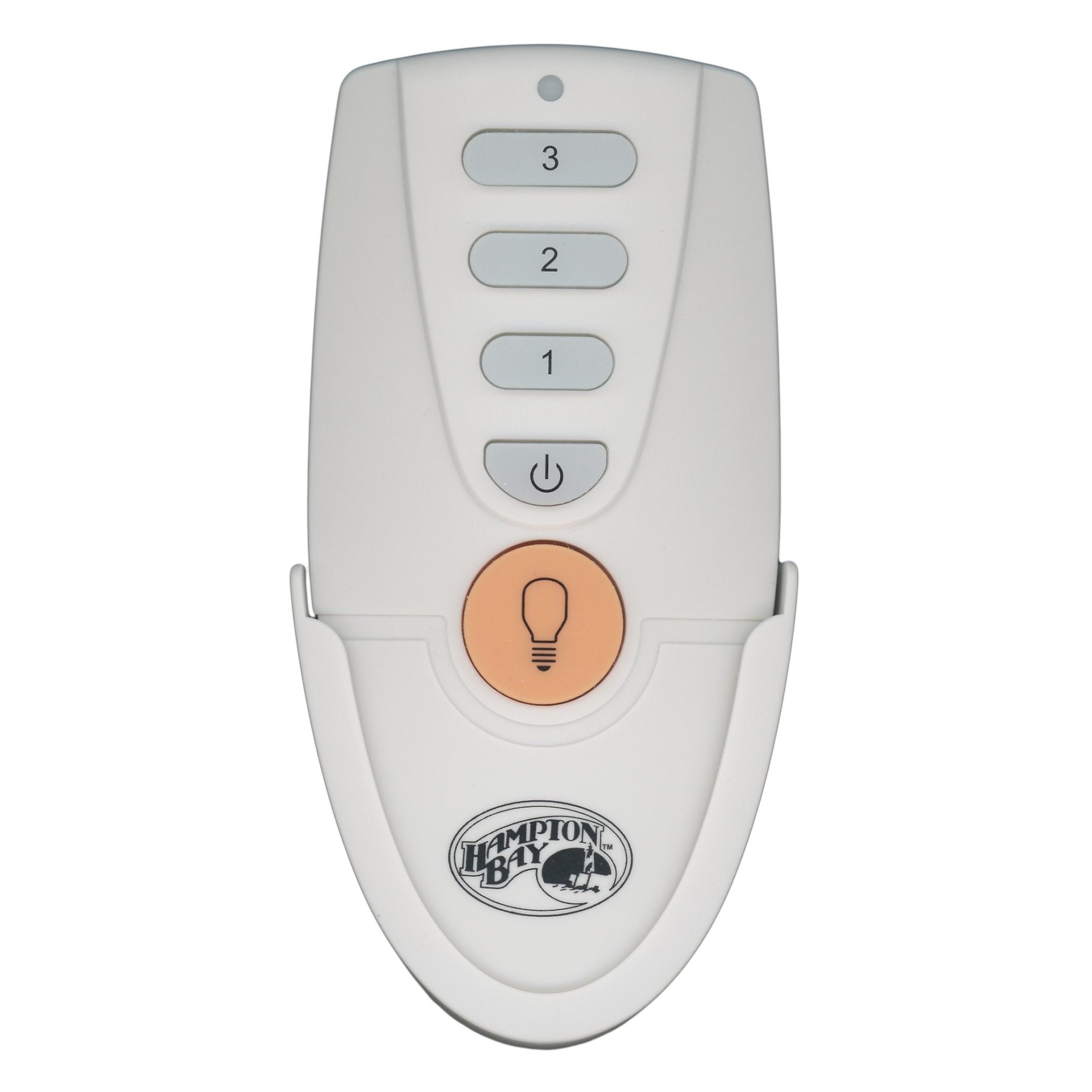

This is the Hampton Bay UC7222T remote that came with Hampton Bay ceiling fans.
How to confirm the fit
Find the FCC ID on the back of your old remote or inside its battery compartment. It should match CHQ7222T. If your remote shows a different FCC ID, this remote will not work with your fan's receiver.
Specifications
- Radio frequency (RF): 303.78 MHz
- FCC ID: CHQ7222T
- Battery: 1 A23 (not included)
Good to Know
- Works only with fans that have an MR7703, UC7301R, UC7301R-01, UC7301R-03 or UC7305R receiver (304 MHz); it does not work with the 434 MHz MR77A / MR77A.2 receivers.
- It is not a universal remote.
Setup / Pairing
Pair the remote
- Remove the remote's battery cover (press firmly on the arrow and slide it off) and install the A23 battery (not included).
- Slide the four code switches to your choice of up or down. Avoid the default position, and use a different pattern for each fan.
- Turn the fan power off at the circuit breaker or wall switch, then restore it.
- Within 30 seconds, press and hold POWER (FAN OFF) for up to 10 seconds. The receiver learns the remote's pattern, and the downlight (if any) blinks twice.
The remote and receiver must be on the same frequency: CHQ7222T remotes (304 MHz) work with MR7703, UC7301R, UC7301R-01, UC7301R-03 and UC7305R receivers; CHQ7222T434, TR171B and KUJCE10205 remotes work with MR77A and MR77A.2 receivers.
What's in the Box
- 1 Hampton Bay UC7222T remote
- Battery not included
Compatible Models
- Hampton Bay / Home Decorators Collection UC7222T remotes with FCC ID CHQ7222T (304 MHz)
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
