Description

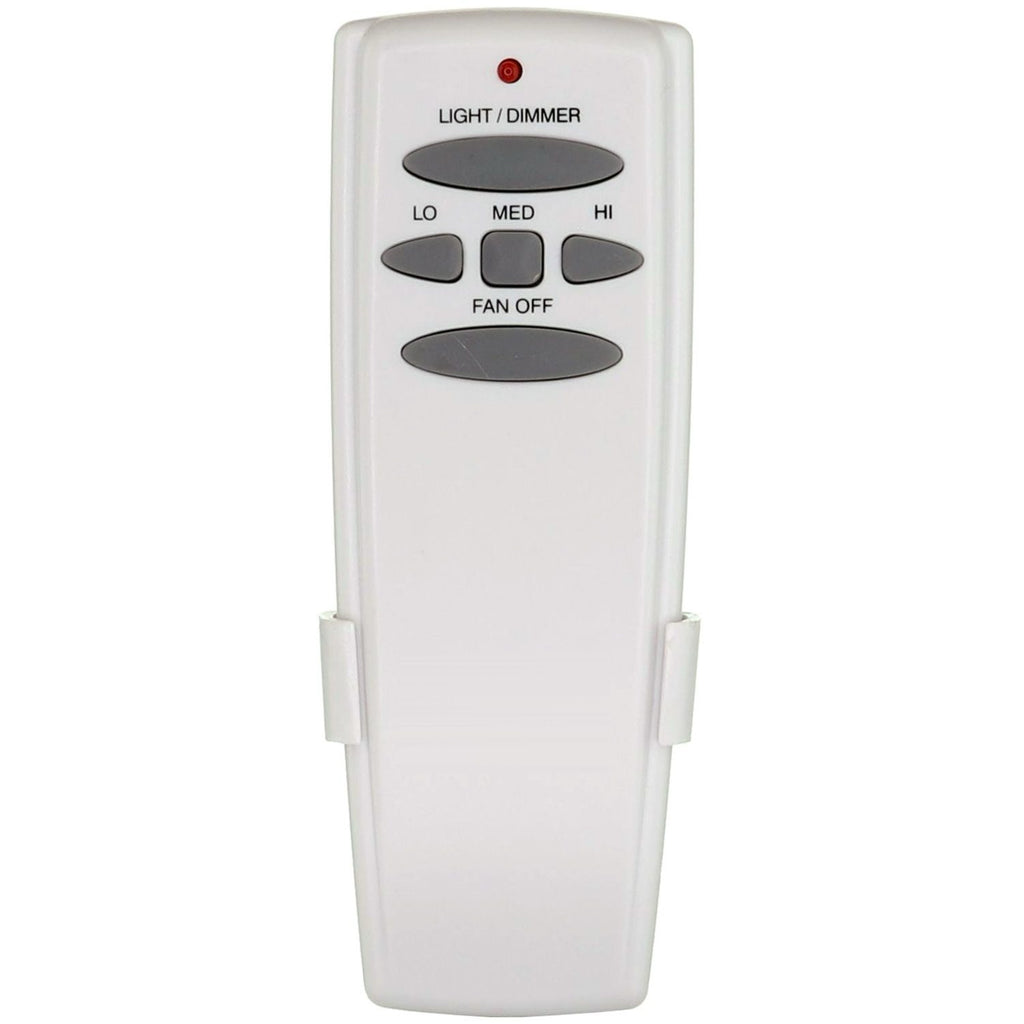

The Anderic RR7079T is a substitute for the Hampton Bay UC7078T / CHQ7078T remote. It is a 304 MHz ceiling fan remote that pairs by matching dip switches.
How to confirm the fit
Find the FCC ID on the back of your old remote or inside its battery compartment. It should match CHQ7078T. If your remote shows a different FCC ID, this remote will not work with your fan's receiver.
Specifications
- Shipped remote: Anderic RR7079T
- FCC ID: CHQ7078T
- Radio frequency (RF): 303.835 MHz
- Battery: 1 9-Volt (not included)
Good to Know
- 304 MHz only
- Key names and layout may differ from the original. Compare your original's buttons before ordering.
Setup / Pairing
Turn off power at the circuit breaker before opening the canopy or touching or adjusting the receiver. Match or record receiver switches with power off; close covers, then restore power to test. If you are not opening the receiver, you may try remote-only code patterns.
- Make sure the fan has power and works with its wall switch on.
- Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
- With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
- Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
- Insert the battery (not included), matching the polarity marks, and replace the battery cover.
- Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
- If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
- If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.
What's in the Box
- 1 Anderic RR7079T remote
- Battery not included
Compatible Models
- Hampton Bay UC7078T / CHQ7078T
- Works with many Hampton Bay ceiling fans, including models such as F569, F569BS and F569BSDW.
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to the full compatible models list.
Specifications
Product help/documentation (if applicable): Installation Instructions
Features:
- Replaces your Hampton Bay UC7078T / CHQ7078T with a 304 MHz ceiling fan remote that pairs by matching dip switches. Fits units such as MinkaAire F569 SUPRA 52 5 Blade, MinkaAire F569BS SUPRA 52 5 Blade and MinkaAire F569BSDW SUPRA 52 5 Blade.
- To set it up in place of your Hampton Bay UC7078T / CHQ7078T, remove the remote's battery cover and set the code (dip) switches up or down in a pattern of your choice. The factory setting is all up, then set the receiver's code switches to the same pattern, and replace the battery cover.
- The Anderic RR7079T remote control is designed as a replacement for the Hampton Bay UC7078T and FAN-HD ceiling fan remotes.
- Controls fan speed and light.
- Takes 1 9-Volt battery, not included.
Part/Model Number: UC7078THD5 / UC7078T / CHQ7078T
Power Information: 1 9-Volt Required, Not Included
FCC ID (if applicable): CHQ7078T
Frequency (if applicable): 303.835 MHz
Supplied with models (if applicable): 14425 Petersford 52 in. LED Brushed Nickel Ceiling Fan, 14426 Petersford 52 in. LED Oil Rubbed Bronze Ceiling Fan, 26600 Trieste 52 in. Ceiling Fan, 26600 Trieste 52 in. OilRubbed Bronze Ceiling Fan, 26602 Asbury 60 in. Ceiling Fan, 26602 Asbury 60 in. OilRubbed Bronze Ceiling Fan, 26611 Minorca 52 in. Ceiling Fan, 26611 Minorca 52 in. Indoor Brushed Nickel Ceiling Fan, 26612 Asbury 60 in. Indoor Brushed Nickel Ceiling Fan, 26612 Asbury 60 in. Indoor Ceiling Fan, 26691 Minorca 52 in. Ceiling Fan, 26691 Minorca 52 in. Indoor Gilded Mahogany Ceiling Fan, 26692 Asbury 60 in. Ceiling Fan, 26692 Asbury 60 in. Indoor Gilded Espresso Ceiling Fan, 34314 Escape 68 in. Indoor/Outdoor Brushed Nickel Ceiling Fan, 51221 Minorca 52 in. Ceiling Fan, 51221 Minorca 52 in. Indoor Brushed Nickel Ceiling Fan, 51315 Latham 52 in. Brushed Nickel Ceiling Fan, 51315 Latham 52 in. Ceiling Fan, 51353 Latham 52 in. Ceiling Fan, 51353 Latham 52 in. Oil Rubbed Bronze Ceiling Fan, 51398 Marlowe 52 in. Brushed Nickel Ceiling Fan, 51398 Marlowe 52 in. Ceiling Fan, 51399 Marlowe 52 in. Ceiling Fan, 51399 Marlowe 52 in. Oil Rubbed Bronze Ceiling Fan, 52371, 52371 Southwind 52 in. Ceiling Fan, 52371 Southwind 52 in. Venetian Bronze Ceiling Fan, 52372, 52372 Southwind 52 in. Ceiling Fan, 52372 Southwind 52 in. Matte White Ceiling Fan, 52379, 52379 Southwind 52 in. Brushed Nickel Ceiling Fan, 52RMG, 68042 Trieste 52 in. Ceiling Fan, 68042 Trieste 52 in. Indoor Brushed Nickel Ceiling Fan, 68044 Midili 44 in. Indoor Brushed Nickel Ceiling Fan, 68100 Midili 44 in. Gilded Espresso Ceiling Fan, 786/756 Hampton Bay 54 in. Metro Ceiling Fan, 786756, 813545, 813677, 813875, 904384, AC288L San Lorenzo 52 in. Ceiling Fan, AC288LRU San Lorenzo 52 in. Rustic Ceiling Fan, Altura 68 inch Oil Rubbed Bronze, CF546KR Bryant 46 in. Oiled Rubbed Bronze Ceiling Fan, Hyde Park II 52 in Pewter, Metro 54 in. Indoor/Outdoor Rustic Copper Ceiling Fan, Pendleton 52 in Indoor Walnut Oil Rubbed bronze, PETERSFORD LED 52 INCH CEILING FAN, Pilot 60 in Brushed Nickel, SOUTHWIND 52INCH CEILING FAN, YG092 Preston 52 in. Ceiling Fan, YG092VPW Preston 52 in. Vintage Pewter Ceiling Fan
Compatible with models (if applicable): UC7078T, CHQ7078T, F569, F569BS, F569BSDW, F569ORB, F569WH, 14425, 14426, 26600, 26602, 26611, 26612, 26691, 26692, 34314, 51221, 51315, 51353, 51398, 51399, 52371, 52372, 52379, 52RMG, 68042, 68044, 68100, 786, 756, 786756, 813545, 813677, 813875, 904384, AC288L, AC288LRU, CF546KR, YG092, YG092VPW, 42010, 52SKV
