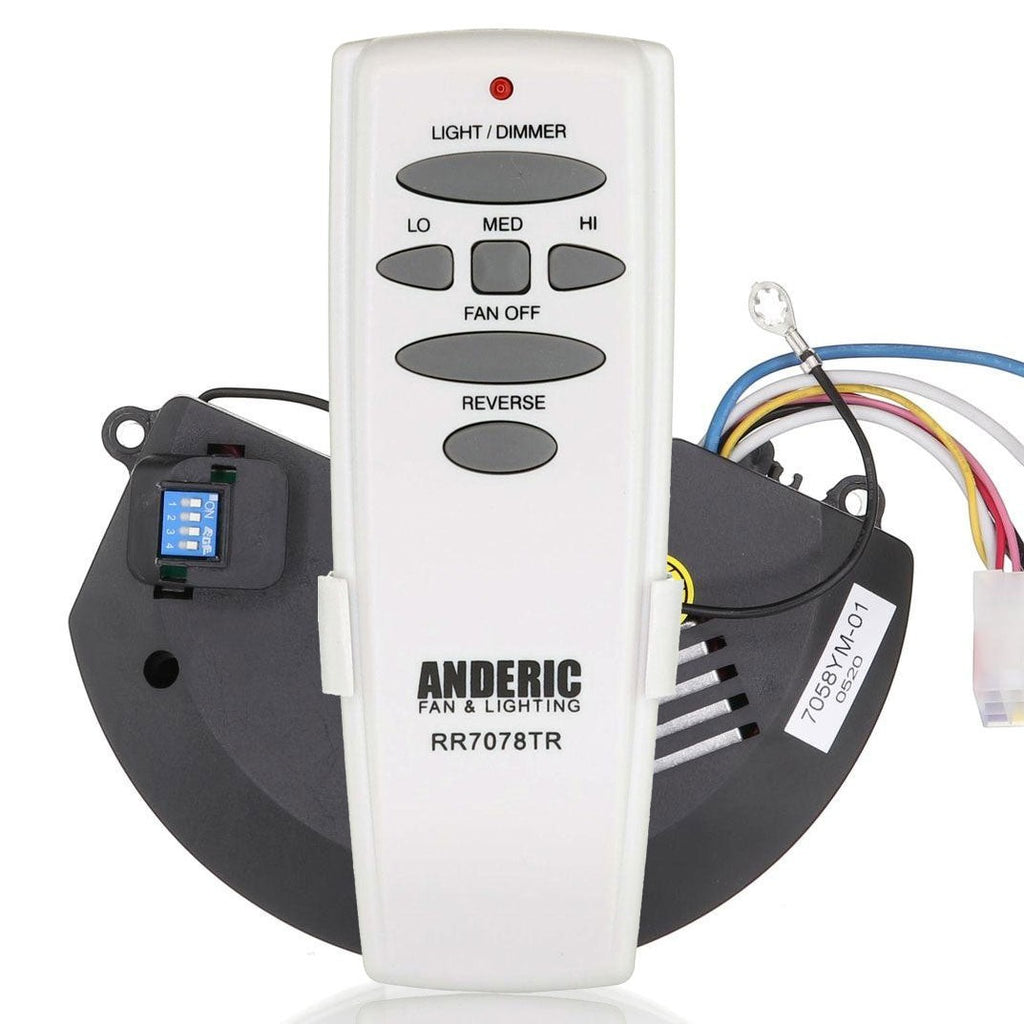

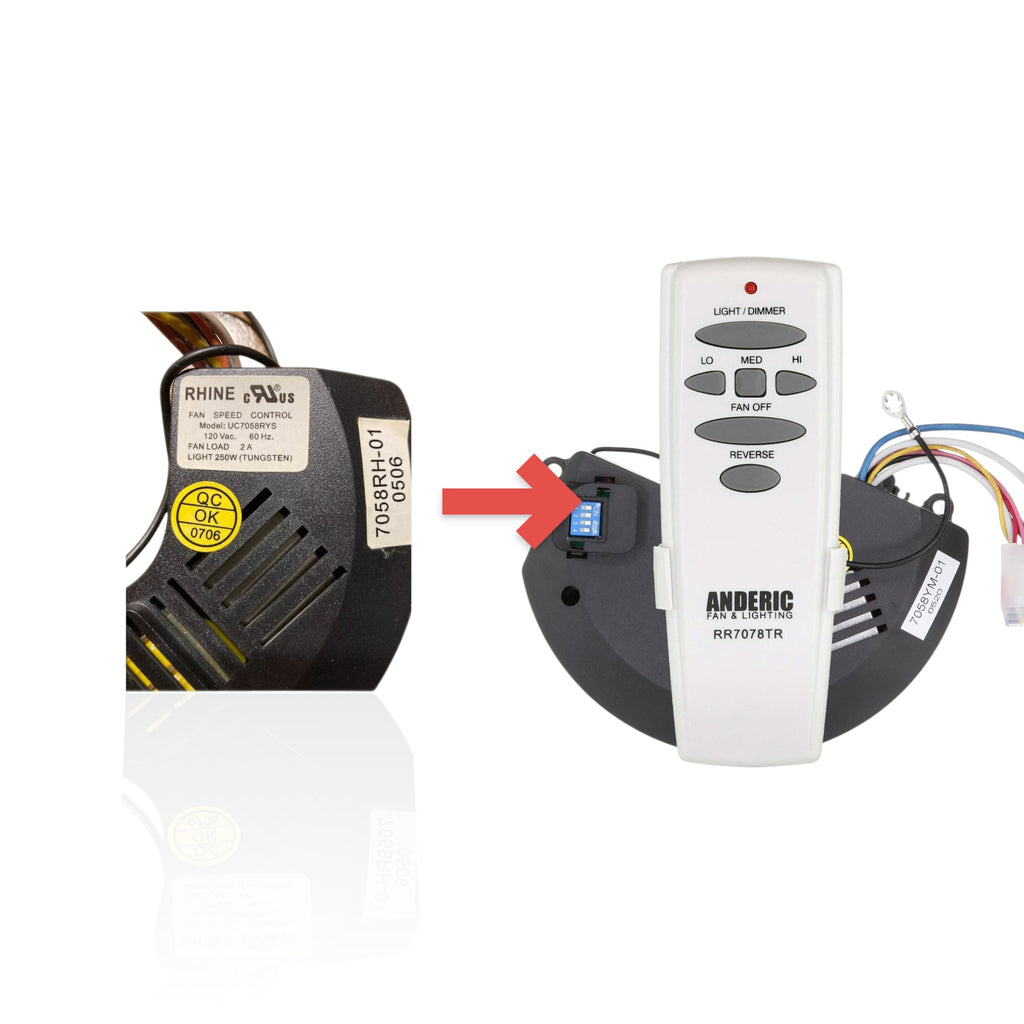

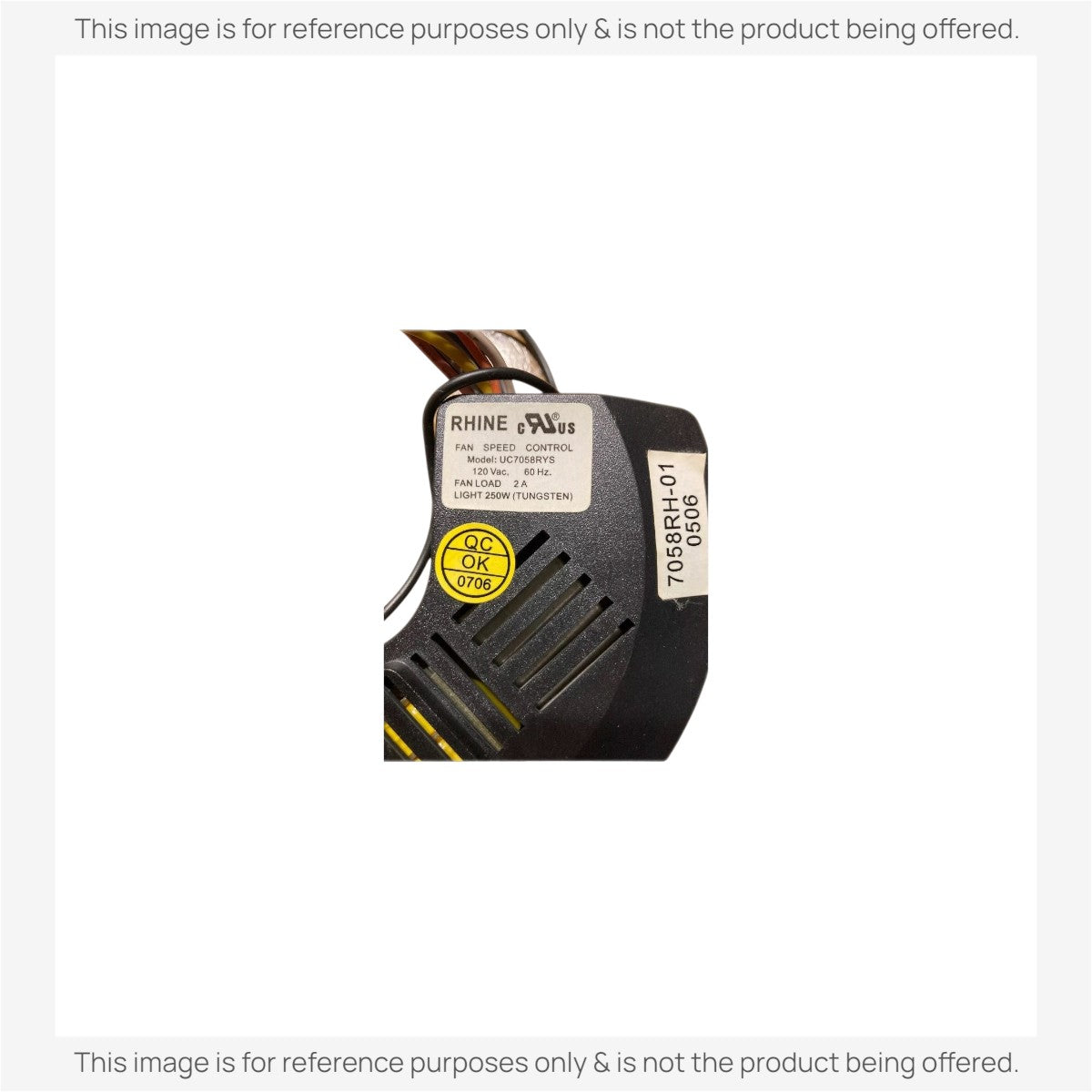

The Anderic UC7058RKIT is a substitute kit for the Hampton Bay UC7058RYS receiver: a UC7058RY receiver and an RR7078TR remote on 304 MHz.
Specifications
- Kit: Anderic UC7058RKIT
- Radio frequency (RF)
- Battery: 1 9-Volt (not included)
Good to Know
- It comes with its own receiver and remote; your existing remote does not pair with the new receiver.

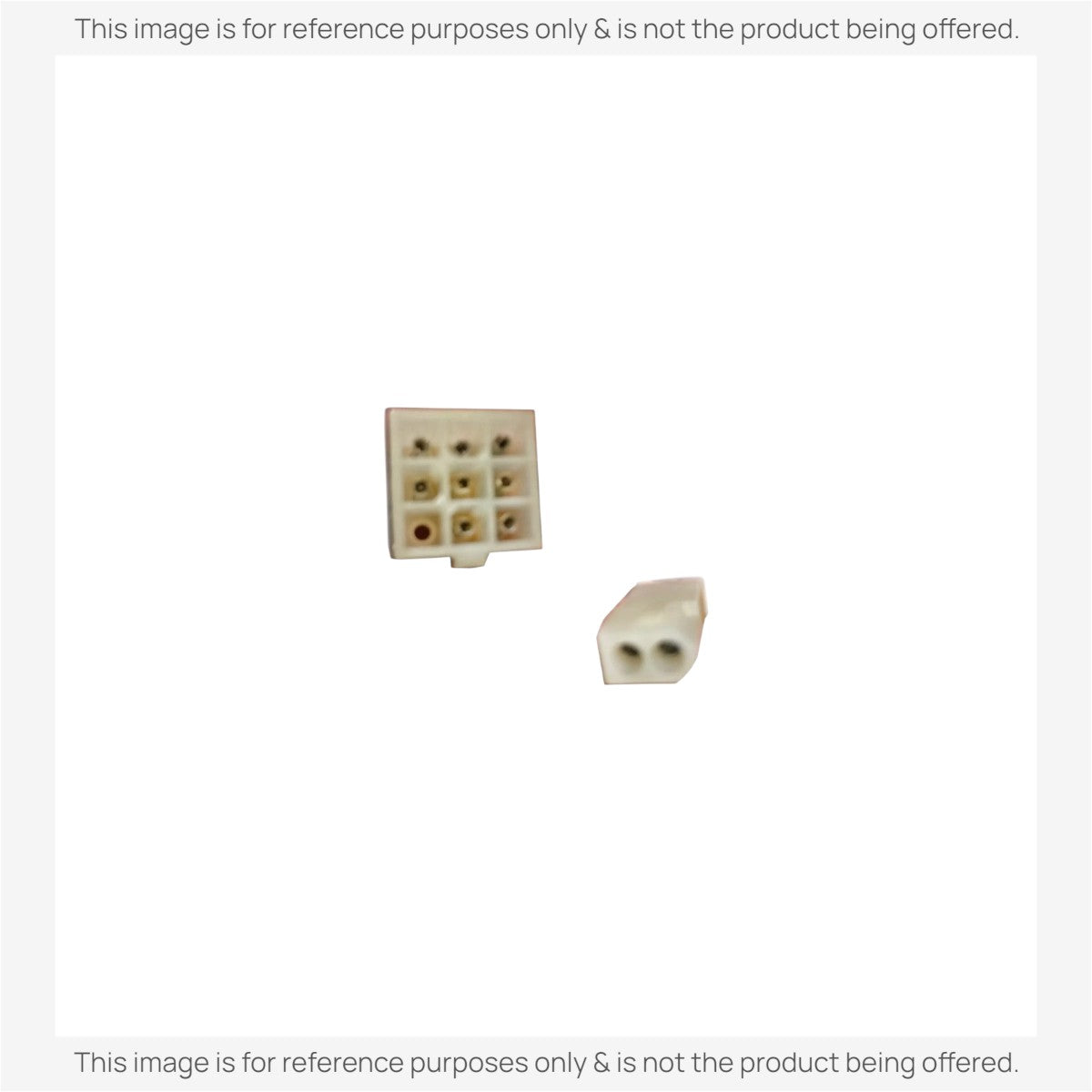

- If the 9-pin plugs do not match, a Molex to AMP adapter cable is needed (not included).
- It works on 304 MHz only and pairs by dip switches.
Setup / Pairing
This receiver does not work with an existing handheld already paired to another receiver of a different type. Replace both the receiver and a matching compatible remote. Down-light output only; not independent upper lights.
A new kit comes with the remote and receiver already set to matching patterns. Check that both patterns match before closing the fan.
Installing the UC7058RY receiver
- Turn off power to the fan at the circuit breaker.
- Open the fan housing. Remove any zip ties holding the wires.
- Loosen the screw holding the clip that secures the power and antenna wires, if needed.
- Use pliers to remove the crimps on the receiver's blue and white wires.
- Remove the two screws holding the receiver and take it out.
- Install the new receiver in reverse order, joining its blue and white wires to the fan's blue and white wires with wire nuts.
Setting the codes

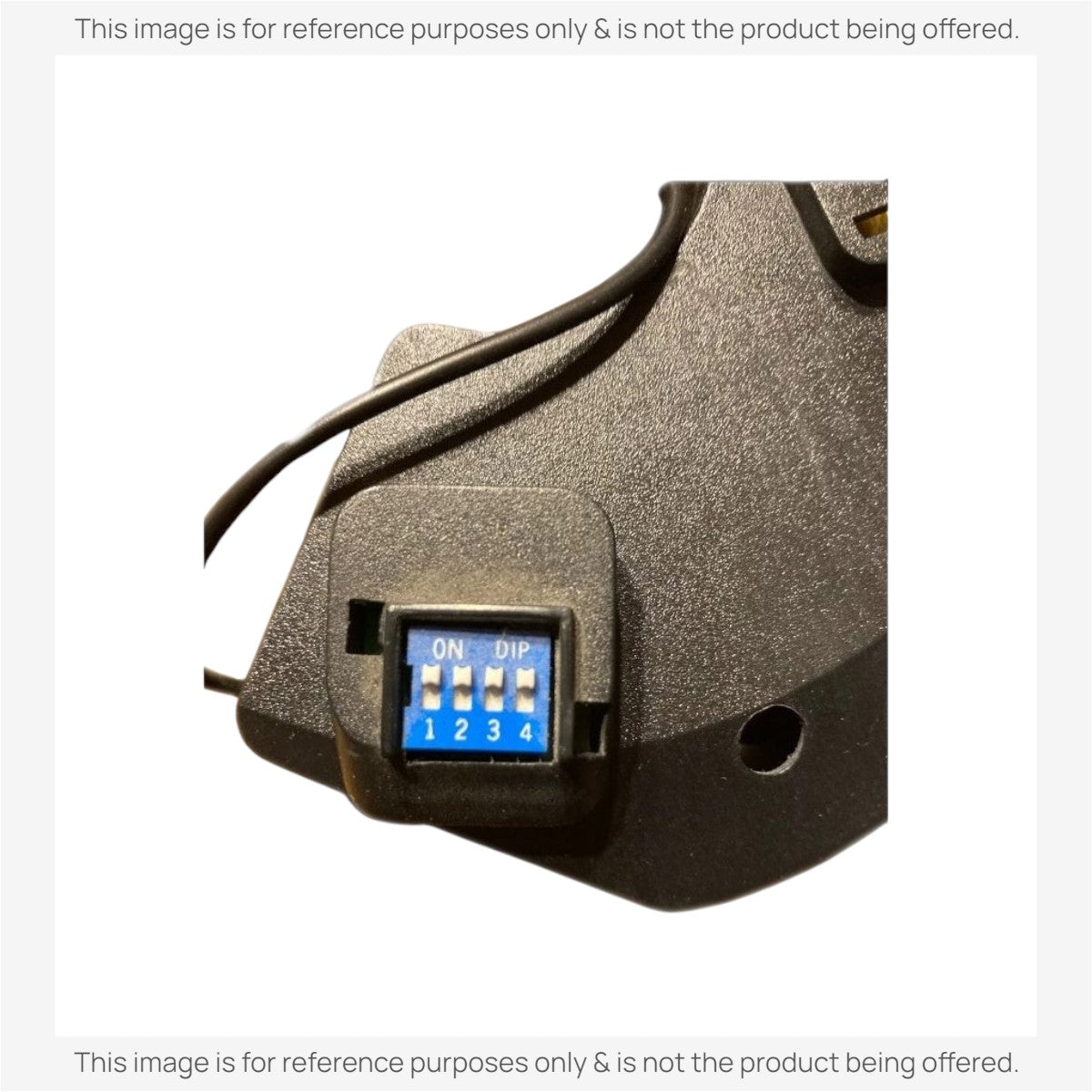

- Before reinstalling the fan housing or canopy, note the dip switch pattern on the UC7058RY receiver (or set it to the pattern you want).
- On the remote, remove the battery cover and slide the 4 dip switches up or down. The factory setting is all switches up; we recommend using a different combination.
- Set the switches on the remote to EXACTLY match the switches on the UC7058RY receiver. The remote and receiver will only work together when both patterns are the same.
- Replace the battery cover, restore power and test the fan and light.
What's in the Box
- 1 remote and 1 receiver
- Battery not included
Compatible Models
- Hampton Bay fans that use a UC7058RY-style receiver (Windward II 54 in.)
- Also works with: HARLEY DAVIDSON CEILING FAN
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
