Anderic Substitute for Hampton Bay UC7058R / 7058RLCK-06 Ceiling Fan Receiver [UC7058RY]

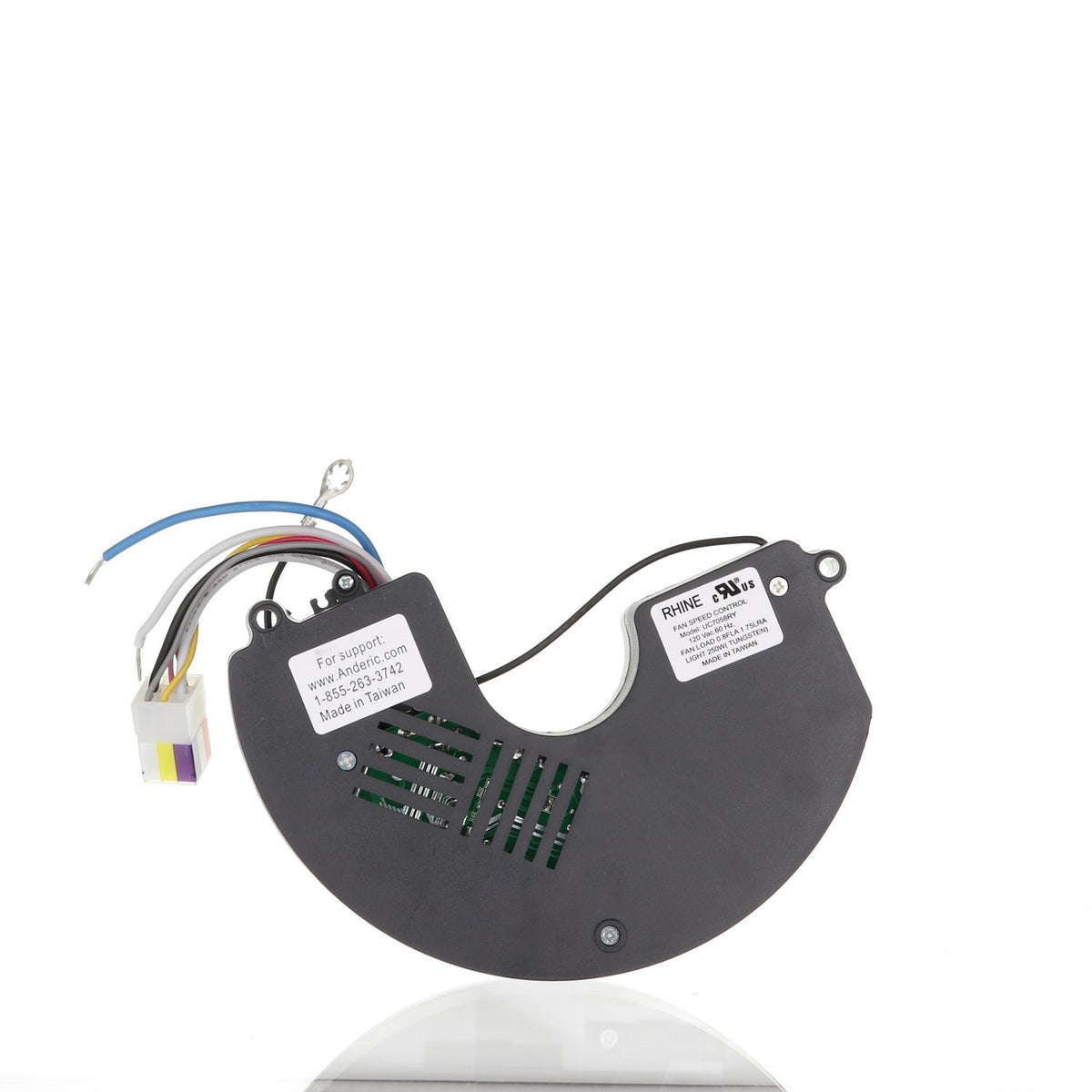

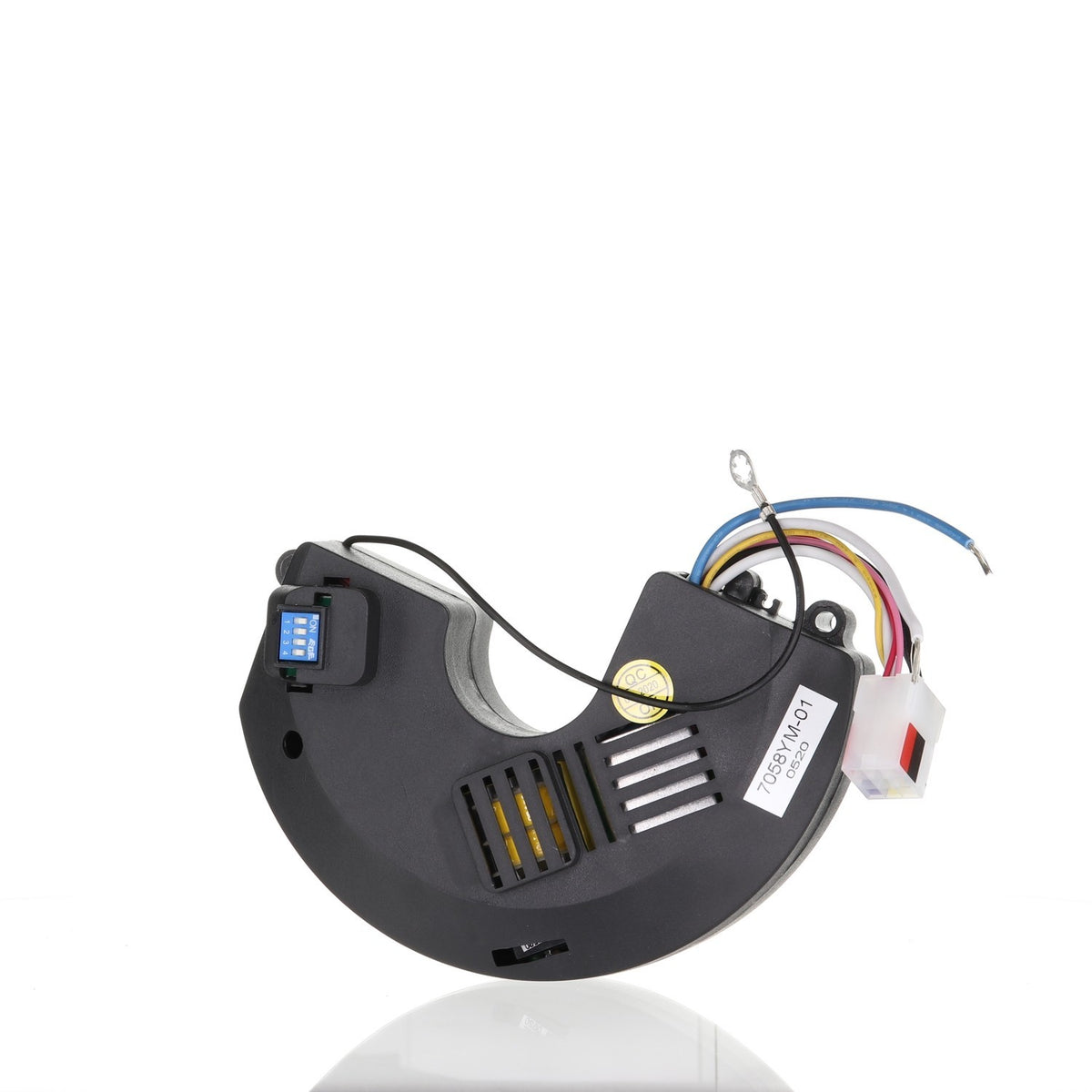

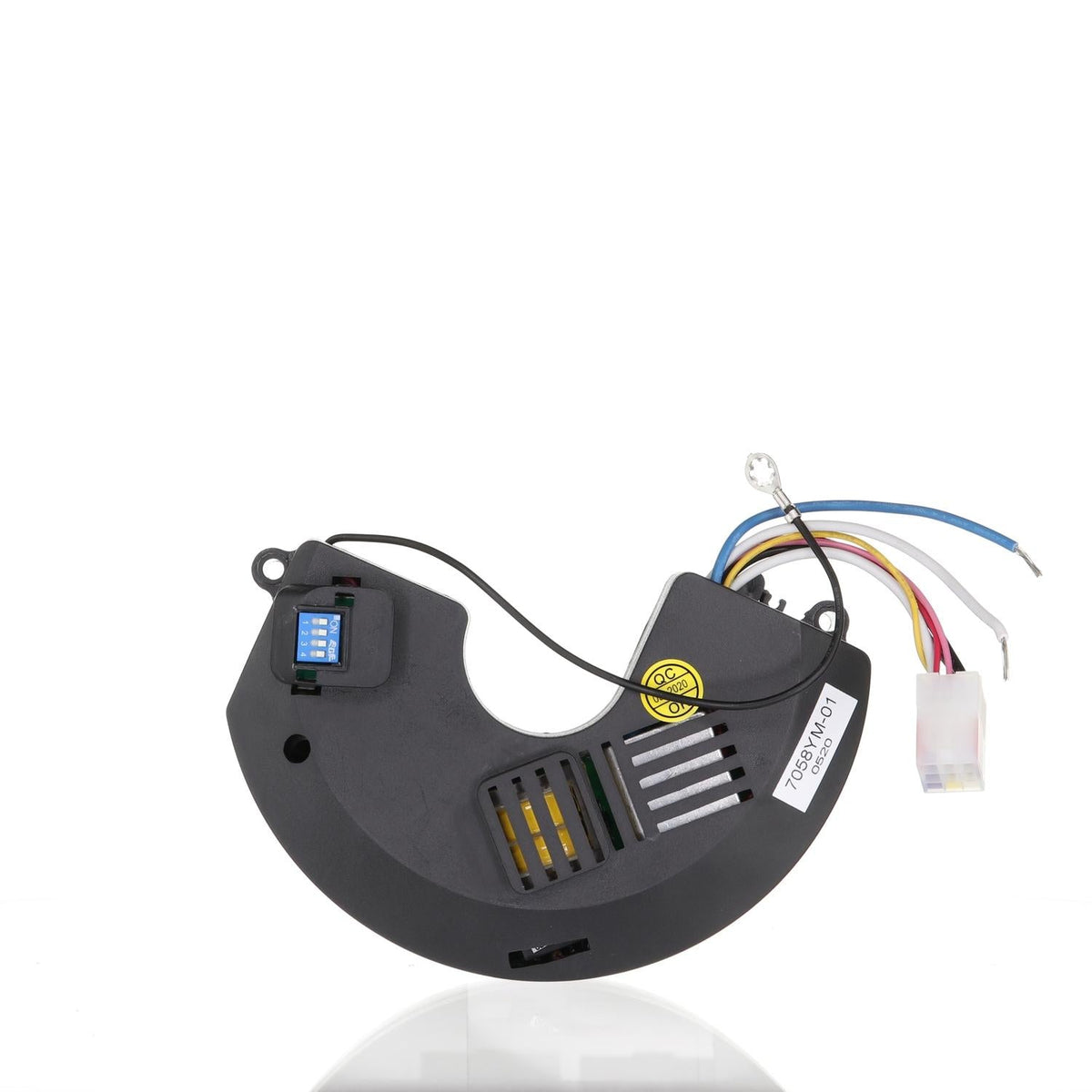

The Anderic UC7058RY is a substitute for the Hampton Bay UC7058R / 7058RLCK-06 receiver. It is a ceiling fan receiver that pairs with its remote by matching dip switches.

Specifications

• Shipped receiver: Anderic UC7058RY
• Radio frequency (RF)

Good to Know

• Receiver only: it needs a compatible remote
• It is installed inside the fan housing; a Molex-to-AMP adapter cable may be needed if the 9-pin plugs do not match
• Key names and layout may differ from the original. Compare your original's buttons before ordering.

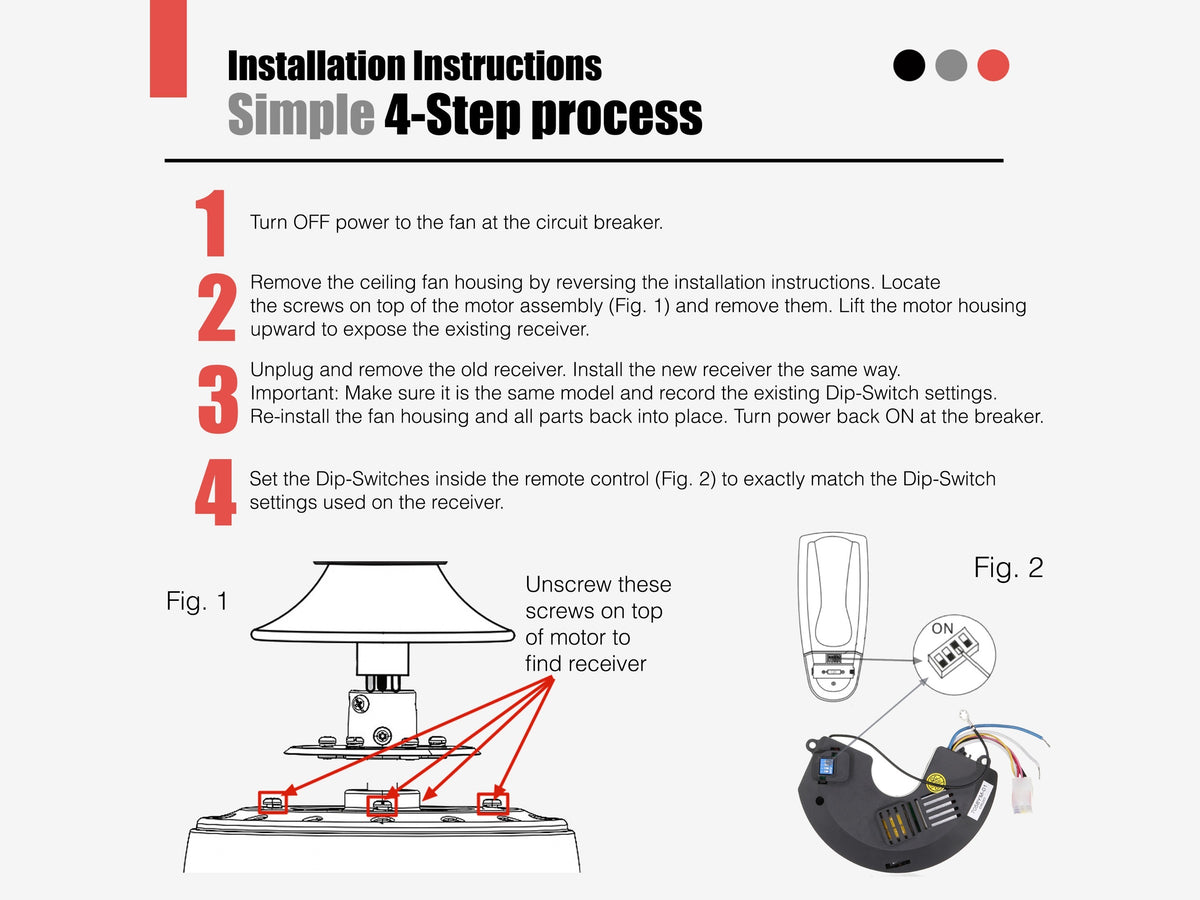

Setup / Pairing

Works with RR7078TR and compatible UC7078T / UC7083T remotes. Older KUJCE-family and thermostatic CHQ7096T remotes are incompatible. Down-light output only; not upper lights. This listing is the receiver only and requires no batteries.

1. Turn off the power to the fan at the circuit breaker box.
2. Install the receiver in place of the old one, joining its blue and white wires to the fan's blue and white wires with wire nuts (use a Molex-to-Amp adapter if the 9-pin plugs do not match).
3. On the remote, remove the battery cover and set the 4 dip switches to any pattern.
4. On the receiver, set the 4 dip switches to exactly the same pattern as the remote.
5. Restore power and test the fan and light keys. If the fan does not respond, turn the power off and recheck that the patterns match.

What's in the Box

• 1 Anderic UC7058RY receiver

Compatible Models

• Hampton Bay UC7058R / 7058RLCK-06

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
