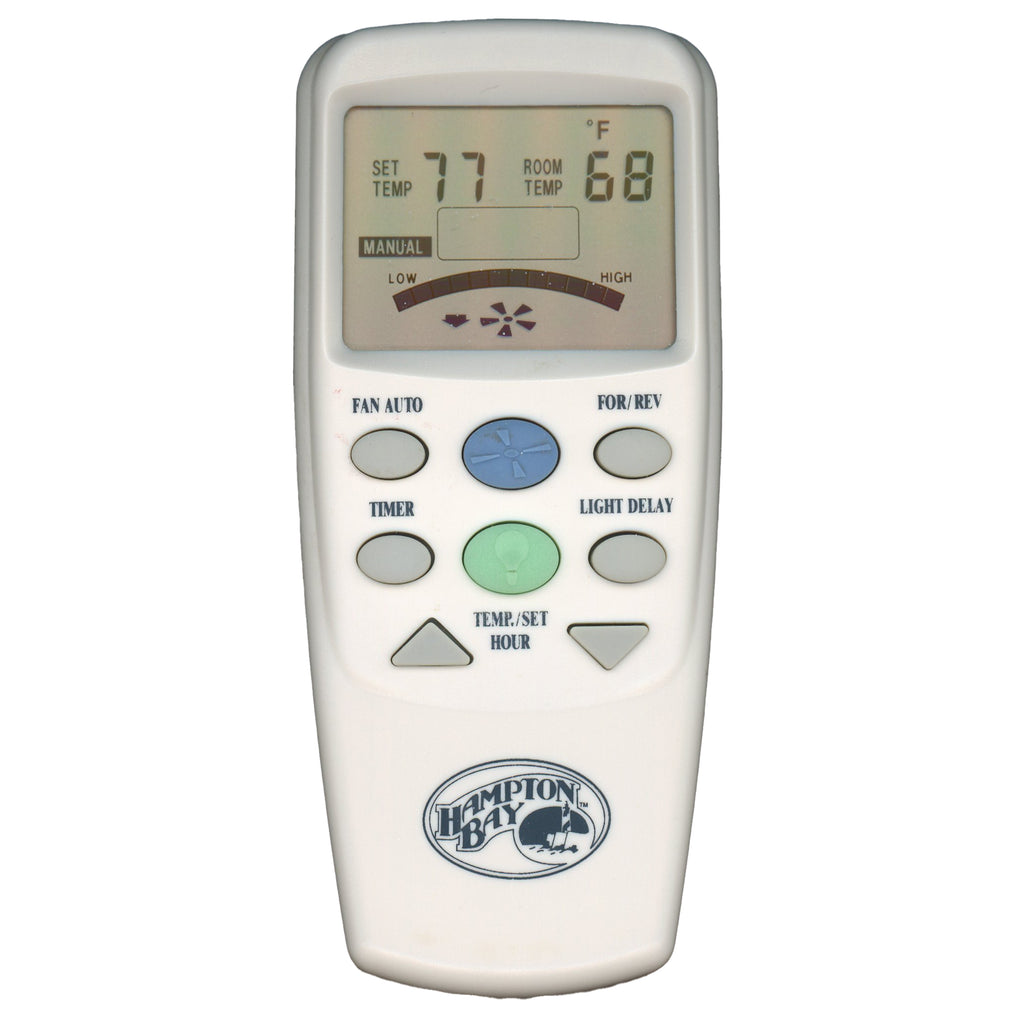

This is the Hampton Bay CHQ8BT7096T remote that came with Hampton Bay ceiling fans.
Specifications
- Radio frequency (RF); it does not need to be aimed
- Batteries: 4 AAA (not included)
Good to Know
- Works only with fans that have a UC7067FCRX receiver (3-speed AC fans).
- It is not a universal remote.
Setup / Pairing
Turn off power at the circuit breaker before opening the canopy or touching or adjusting the receiver. Match or record receiver switches with power off; close covers, then restore power to test. If you are not opening the receiver, you may try remote-only code patterns.
Pairing by matching the dip switches (4 switches, 16 codes)
- Make sure the fan has power and works correctly.

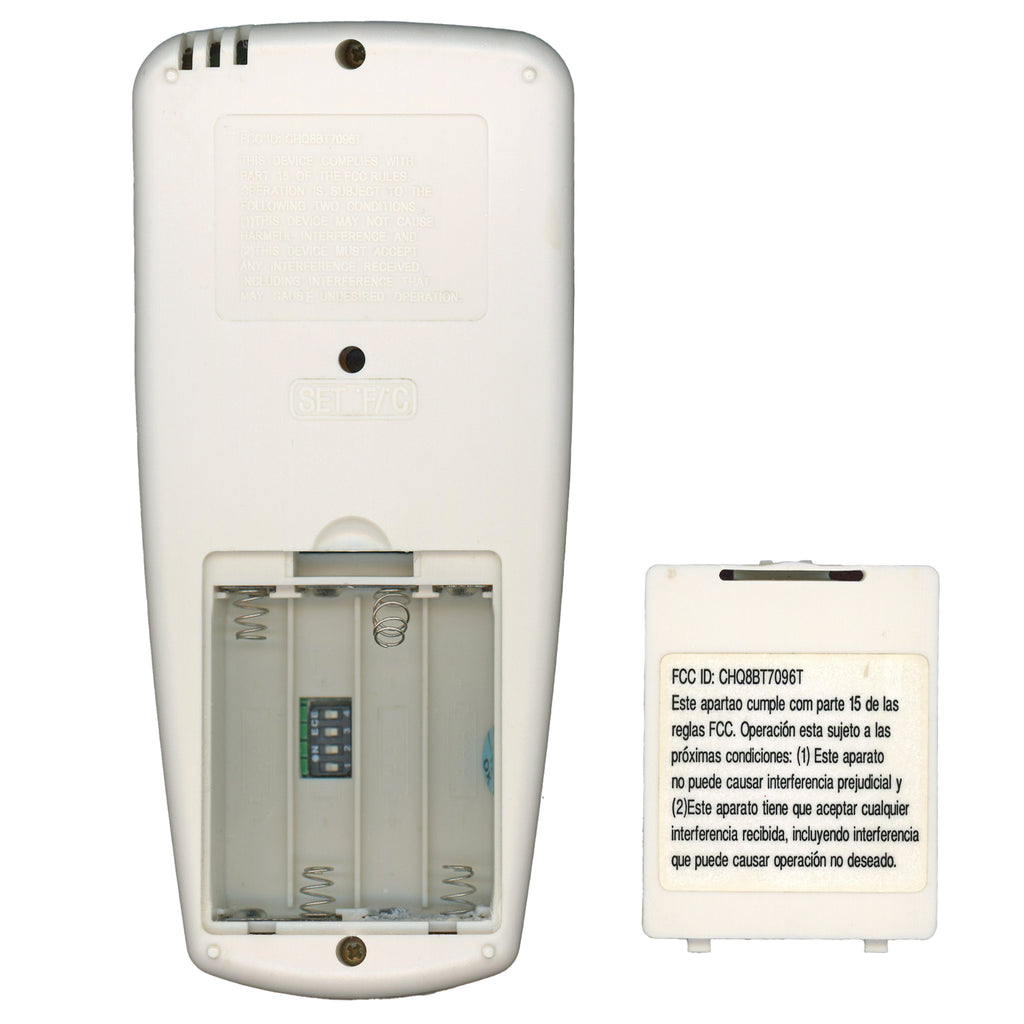

- Open the battery compartment on the remote.
- Set the remote's 4 dip switches to EXACTLY the same up/down pattern as the switches on your fan's receiver. The factory setting is all up.
- Install the battery (not included), matching the polarity marks, and close the battery compartment.
- Test the fan and light keys.
What's in the Box
- 1 Hampton Bay CHQ8BT7096T remote
- Batteries not included
Compatible Models
- Hampton Bay CHQ7096T / CHQ8BT7096T thermostatic remotes
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
