Product help/documentation (if applicable): User Guide
Features:

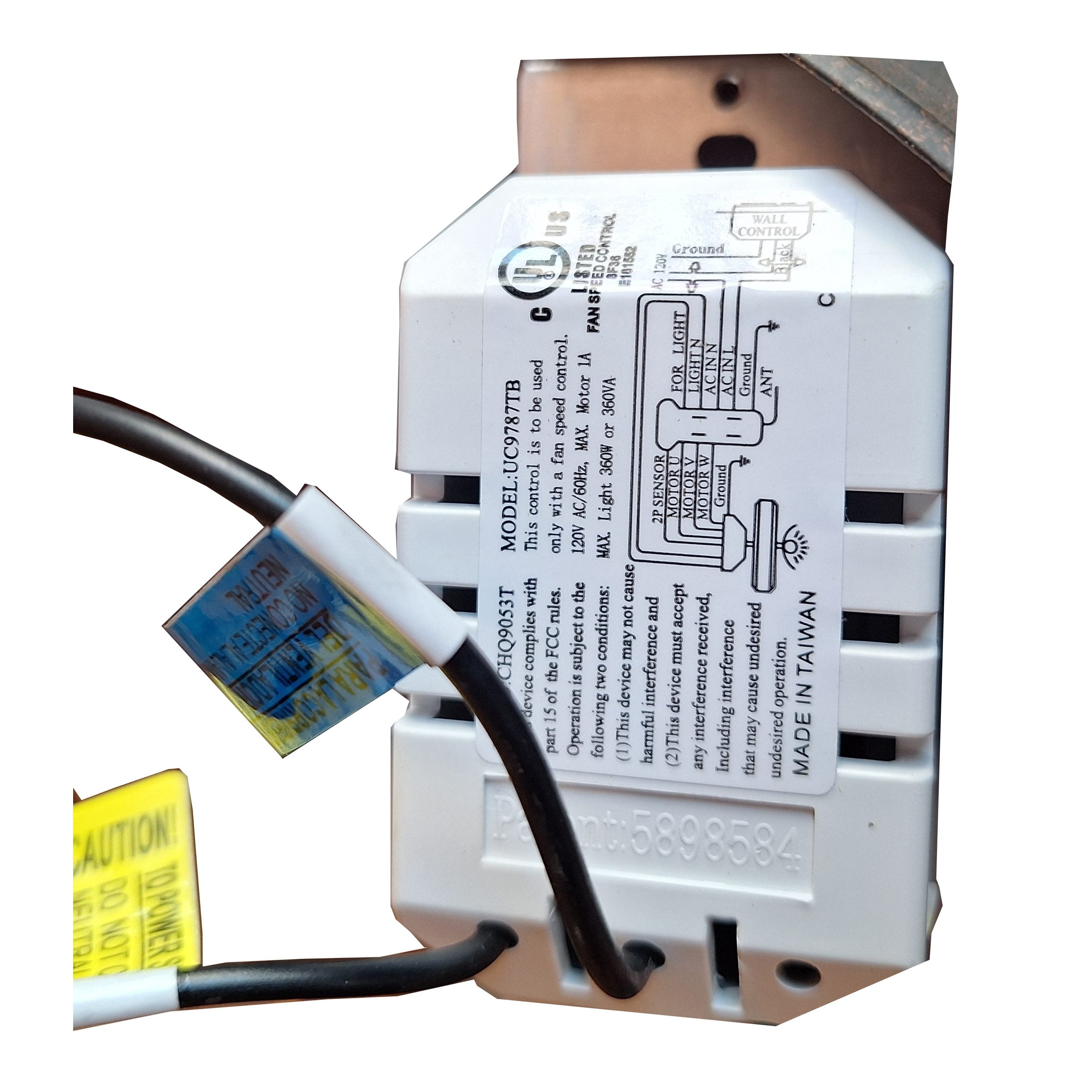

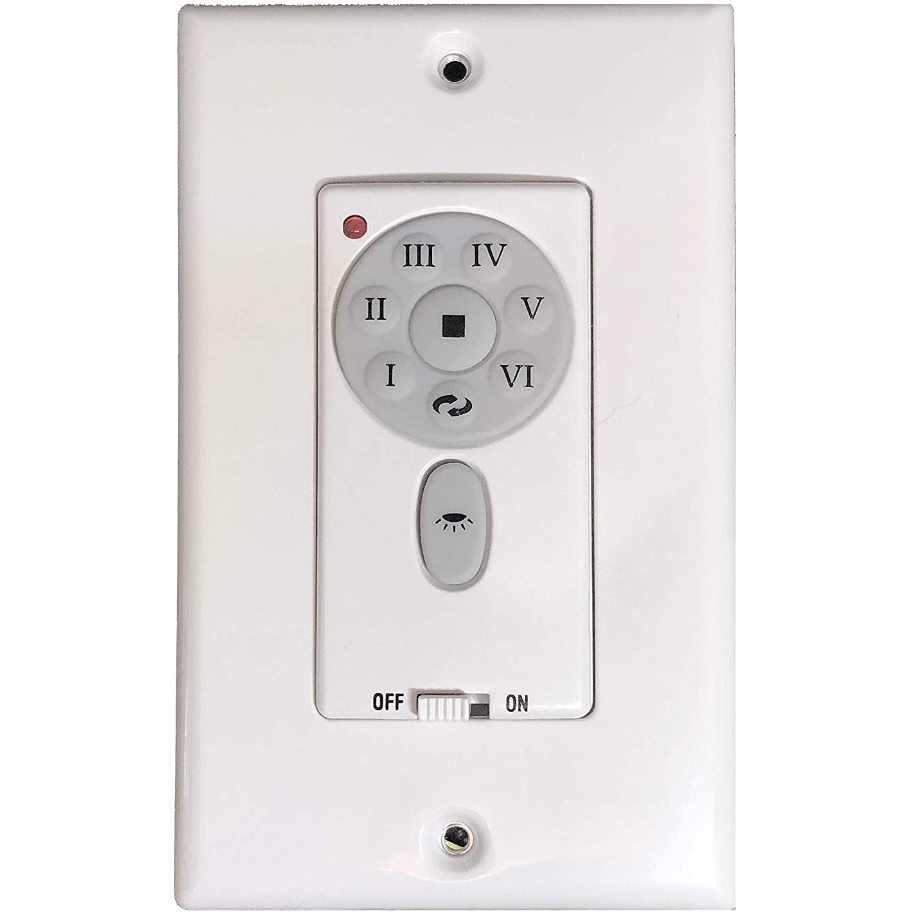

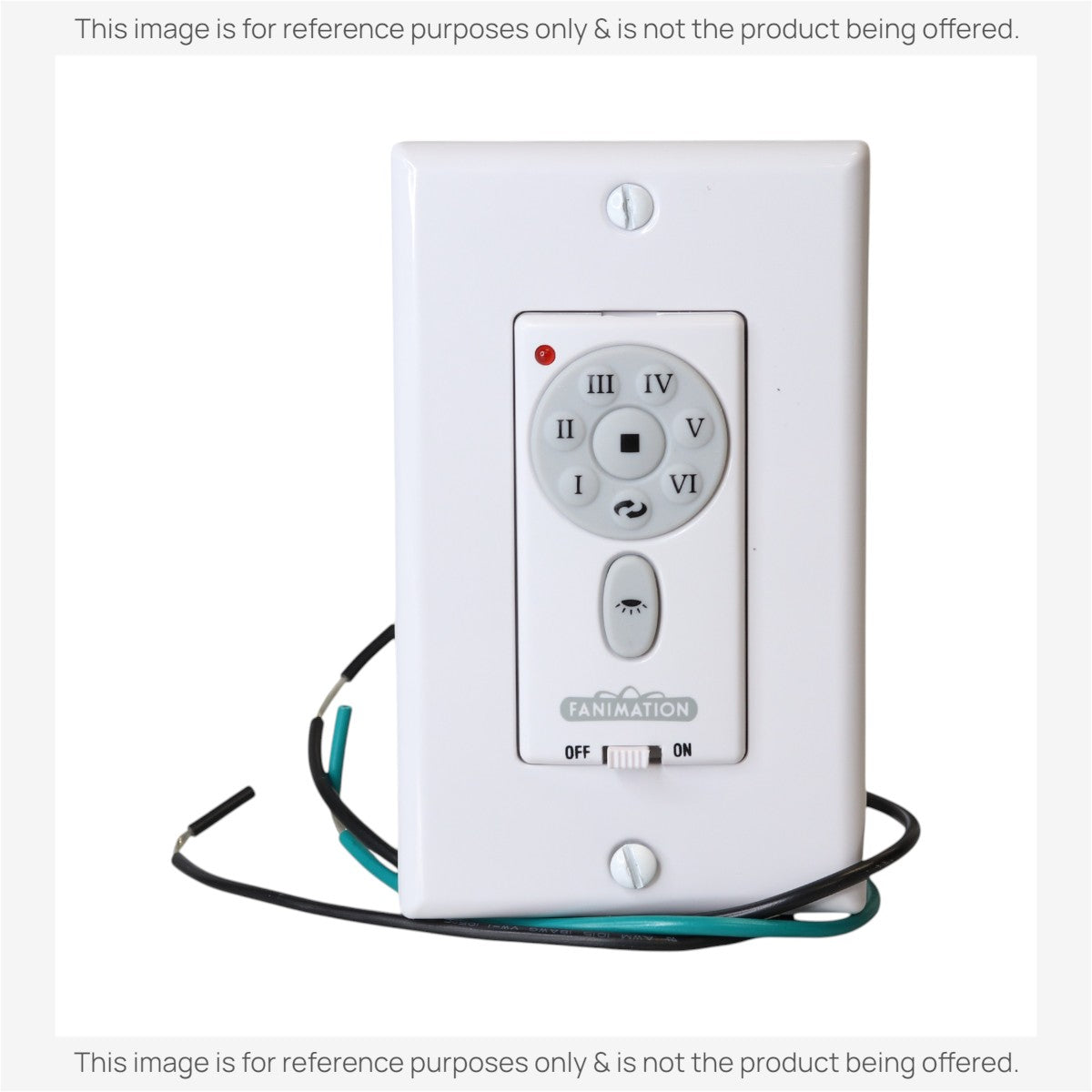

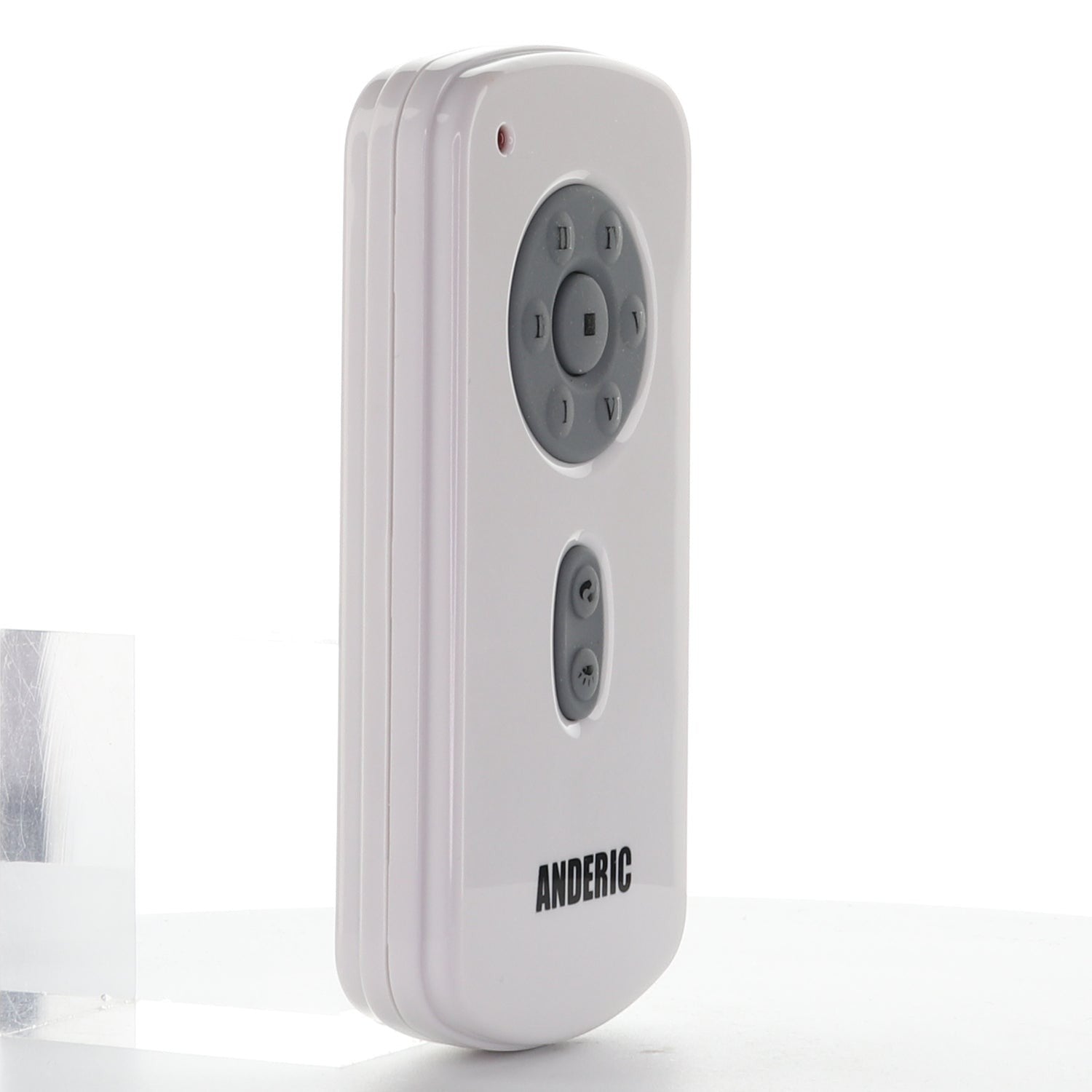

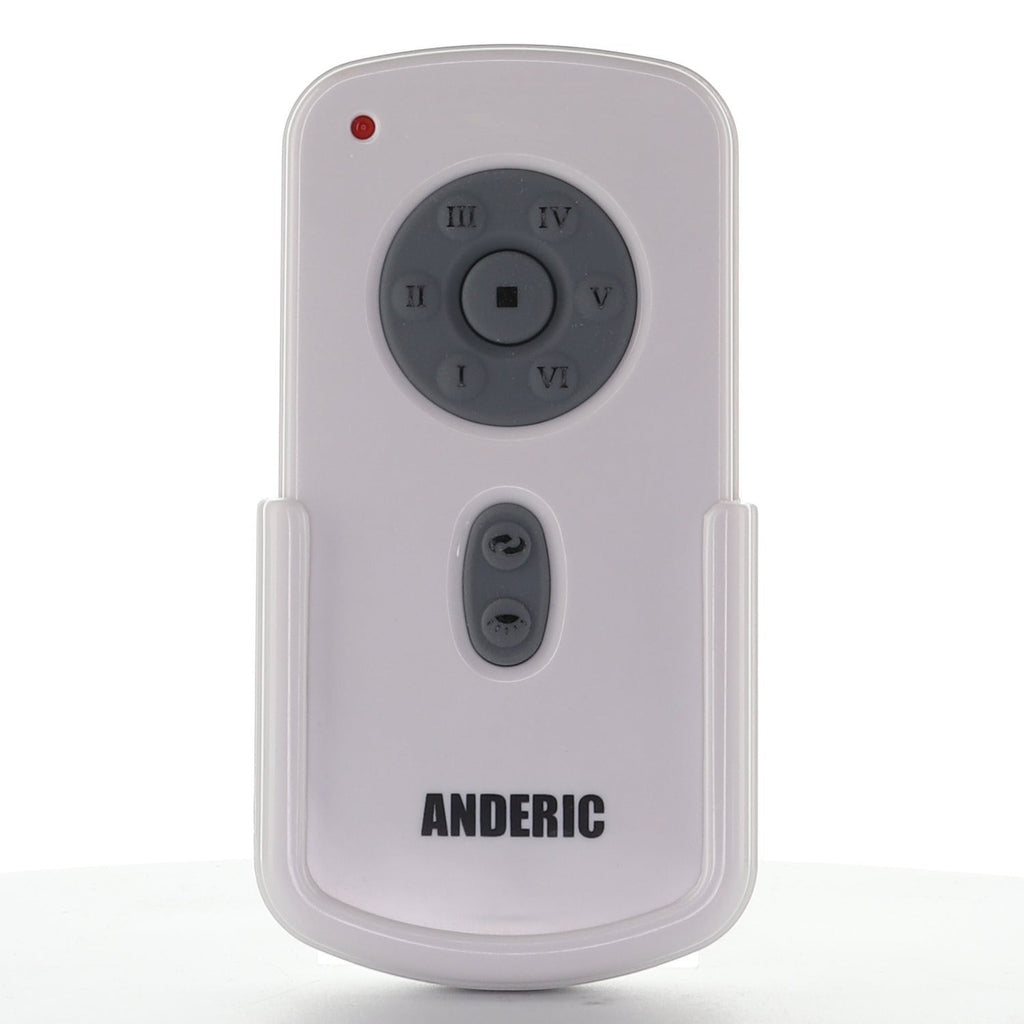

- Wireless Handheld Instead of a Wired Wall Plate: Substitutes for the Fanimation TW30WH / UC9787T / CH9787TB / CHQ9053T wired wall-plate control with a battery-powered RR787T RF handheld that pairs wirelessly—no wall rewiring.
- Full Six-Speed DC Control with Light and Reverse: Dedicated keys cover all six fan speeds, light on/off with dimming on compatible bulbs, and forward/reverse for seasonal airflow. Layout may differ from the wall plate—compare buttons before ordering.

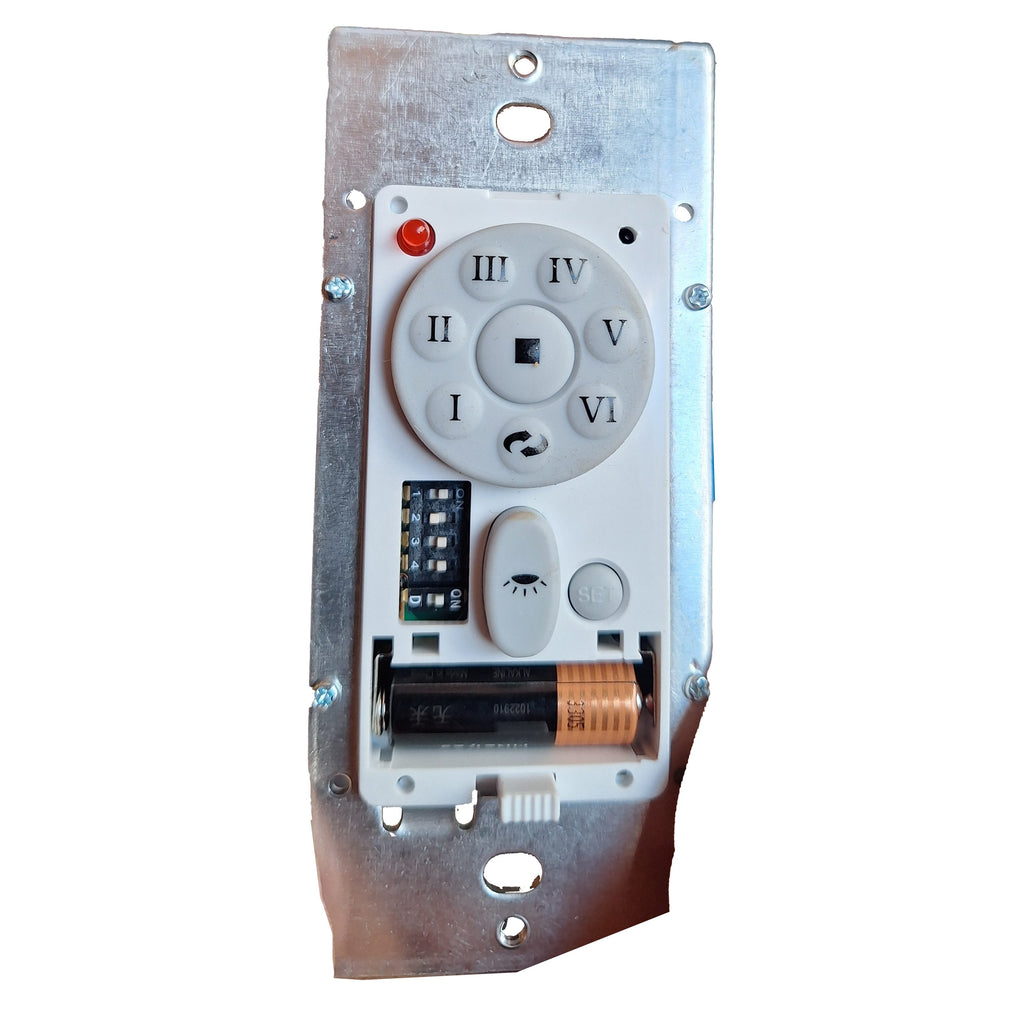

- Pairs with the SET Button: Turn power off, install the 23A battery, restore power, then within 60 seconds press and hold SET for 1–5 seconds until the light blinks twice. This remote has DIP switches, but for this replacement they usually don't need to be changed.

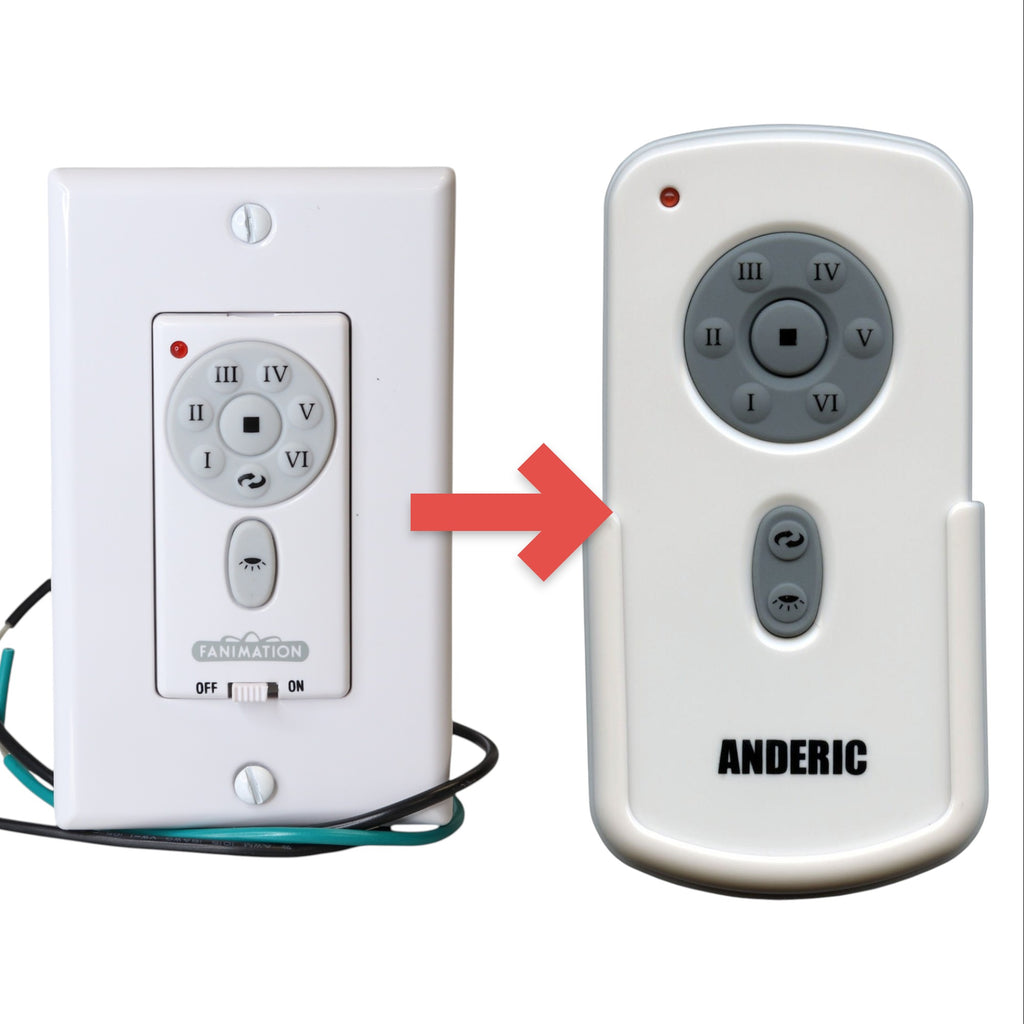

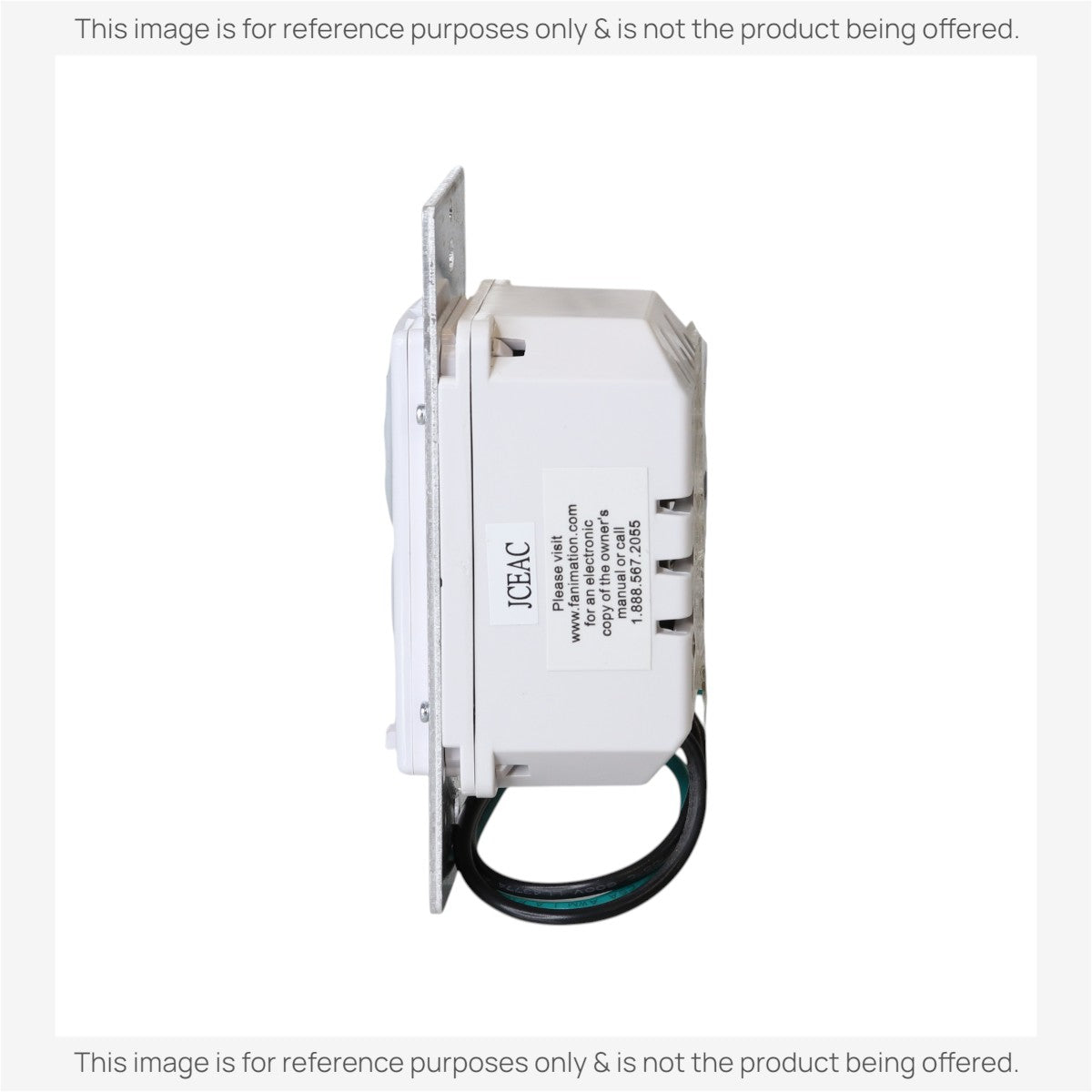

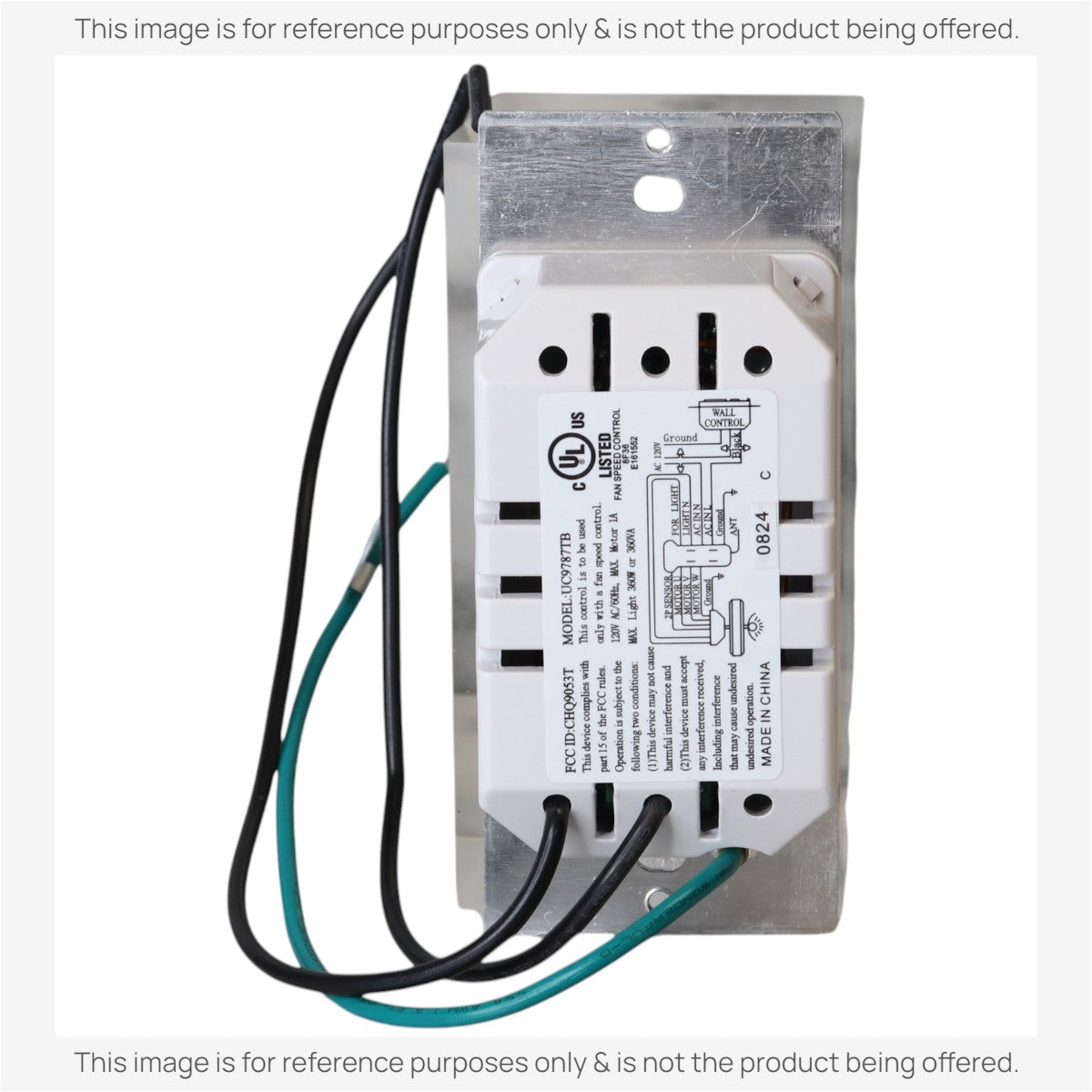

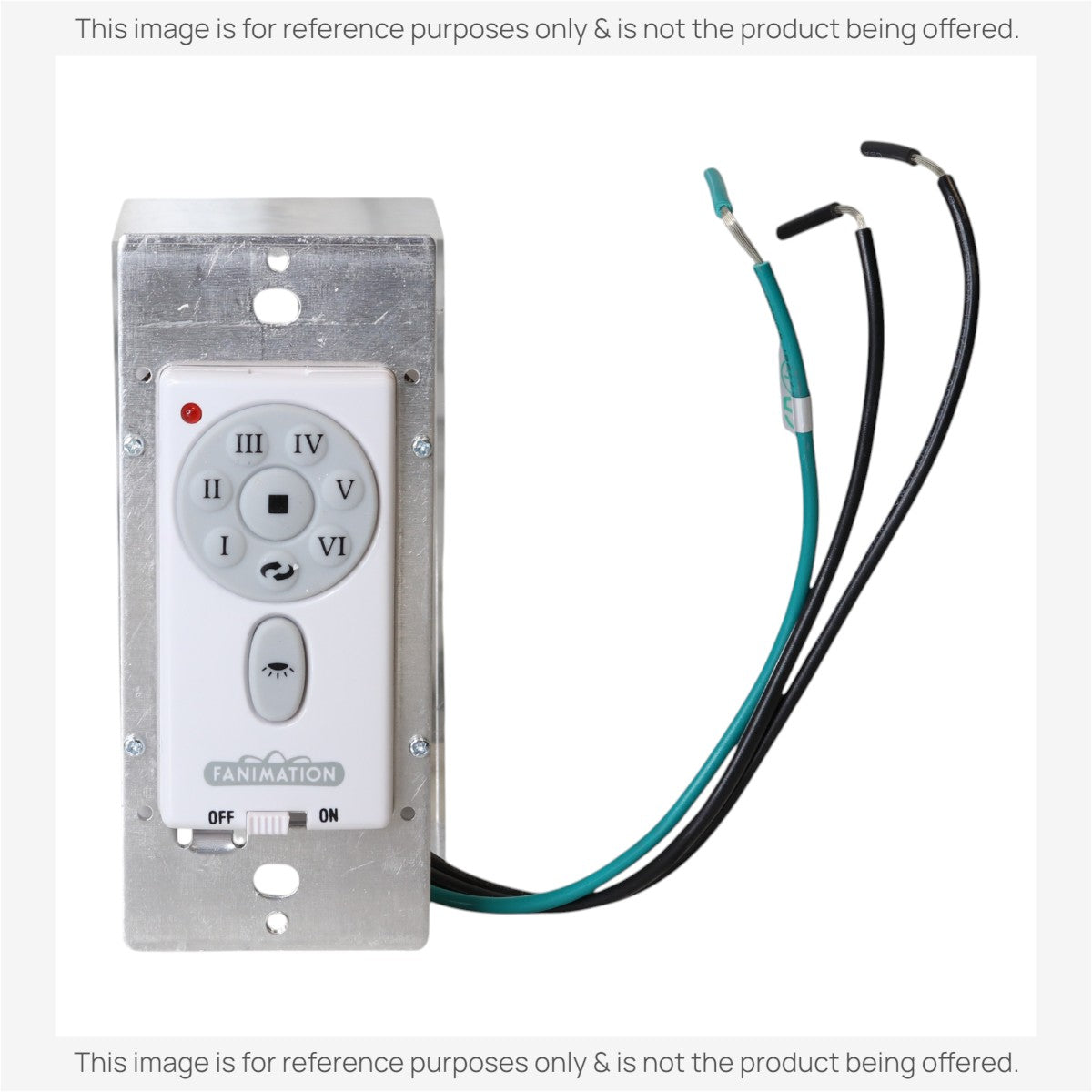

- Wired Wall Plate vs. Wireless Handheld: The original TW30WH / UC9787T / CHQ9053T is hardwired to the wall; this RR787T is a handheld for RH786R-style receivers. Match your old control's model or FCC ID (CHQ9053T) before ordering. No up-light control.

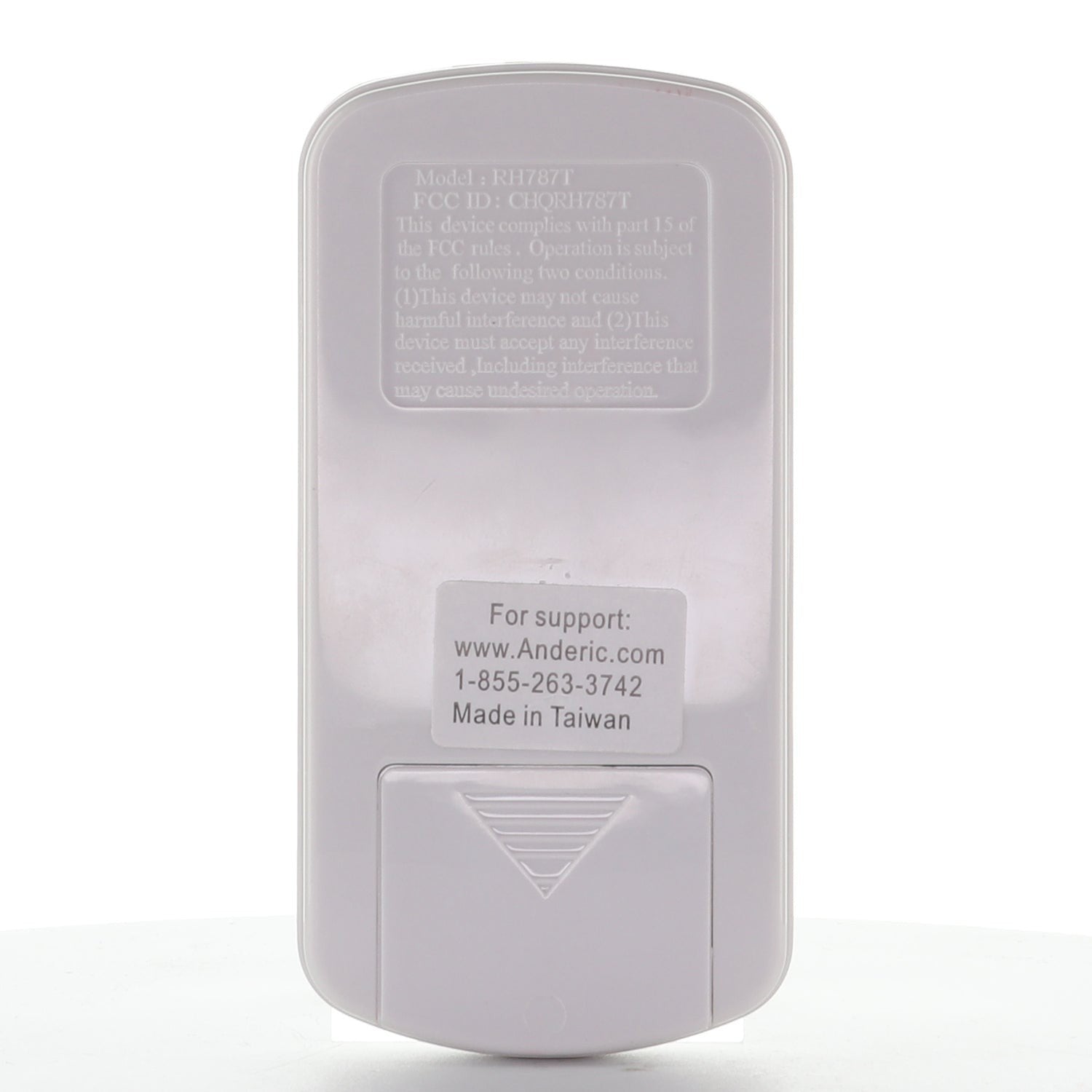

- Battery-Powered Handheld Convenience: Takes 1 23A / A23 battery, not included. RF control means you adjust speed and light from across the room without aiming or installing a new wall plate.
Part/Model Number: UC9787TB / UC9787T / CH9787TB / CHQ9053T
Power Information: 1 A23 Required, Not Included
FCC ID (if applicable): CHQ9053T
Frequency (if applicable): 303.947 MHz
Compatible with models (if applicable): TW30WH, UC9787T, CHQ9053T, UC787GT, TR29, RH787T, CH9787TB, 2AQZU-18006, 5VMR72RZWD, 5VMR72OZD, 5VMR72BSD, 3ARR68BS, 3ARR68MBK, 3ARR68RZWBBS, 3HCKR60BNZHABD, 3HCKR60HABD, 4LMR56D, 4LMR56DWZD, 5DVR60AGP, 5DVR60BS, 5DVR60OZ, 5DVR60RZW, C31U11B, C31U45B, C31U546B, LP8147SLBN, 59105, 59106, 59107, C45G11B, C45G45B, C45G695B, 59164, 59165, 55067, 55068, 55069, 55070, 59143, 59144, 688757, AG804LN, AM175ORB, GL3, LP8147SLBL
