Anderic Substitute Kit for DL-4114T Ceiling Fan Remote Control | Up & Down Light - DL-4114T [RR7078TUDLKIT]

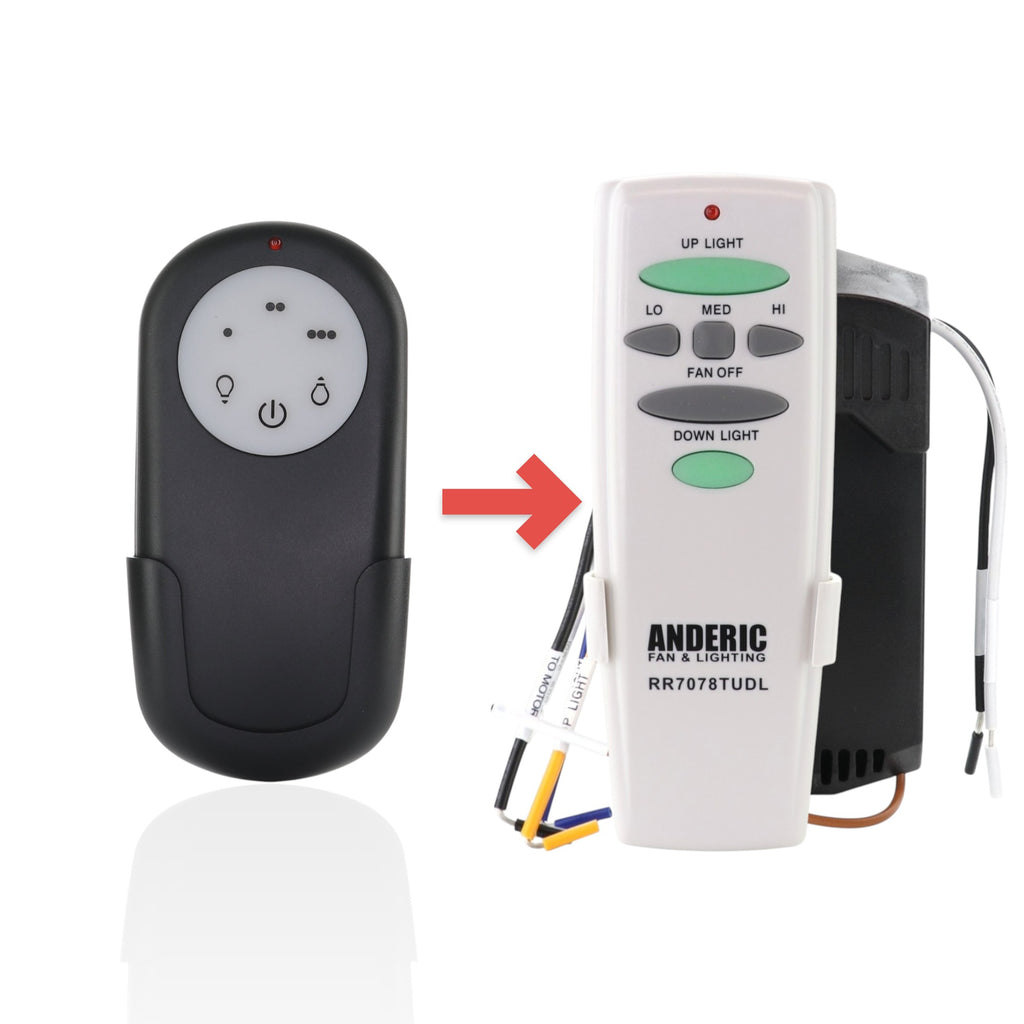

The Anderic RR7078TUDLKIT is a substitute kit for the DL-4114T remote. It is a 304 MHz ceiling fan remote and receiver kit that pairs by matching dip switches.

Specifications

• Kit: Anderic RR7078TUDLKIT
• Radio frequency (RF): 303.916 MHz
• Battery: 1 9-Volt (not included)

Good to Know

• 304 MHz only
• Key names and layout may differ from the original. Compare your original's buttons before ordering.

Setup / Pairing

1. Turn the power to the fan off at the circuit breaker. Install the receiver in the fan canopy following the wiring instructions included with the kit, then restore power.
2. Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
3. With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
4. Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
5. Insert the battery (not included), matching the polarity marks, and replace the battery cover.
6. Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
7. If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
8. If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.

What's in the Box

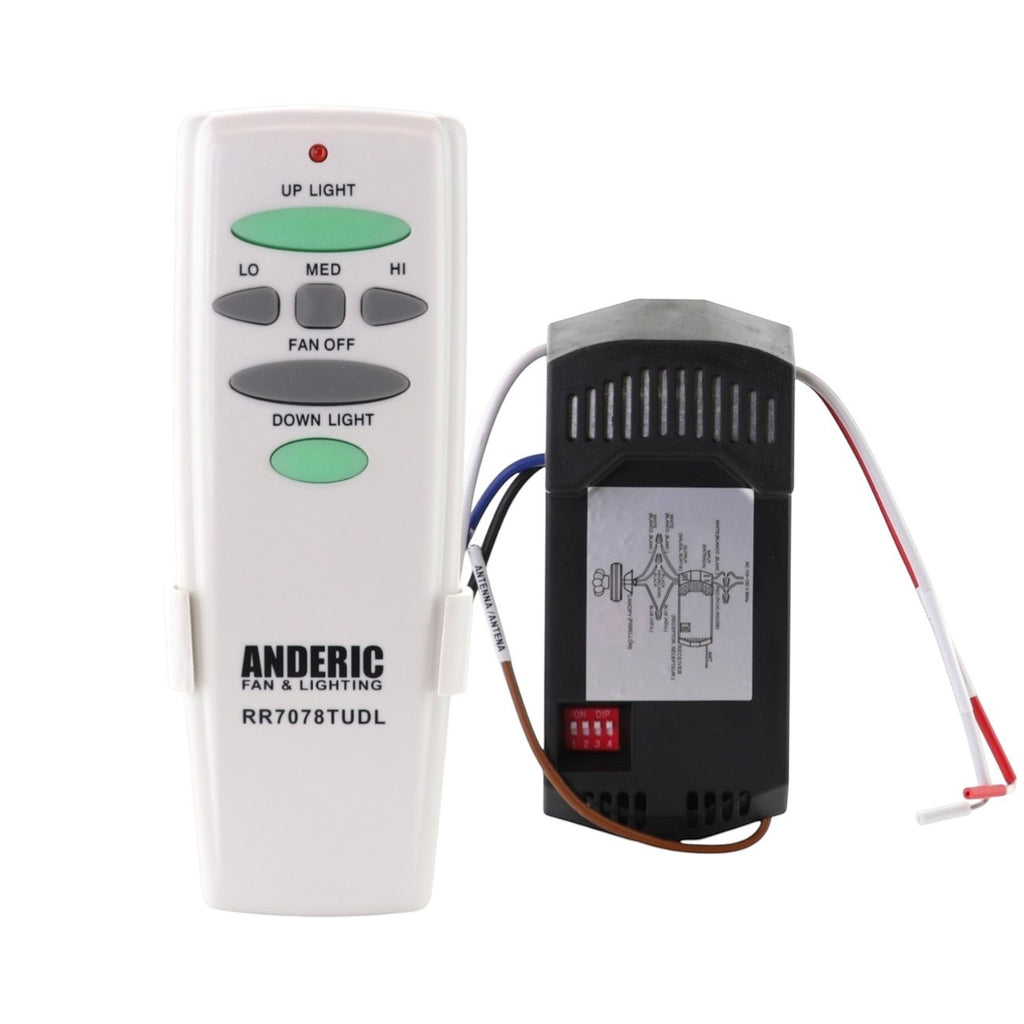

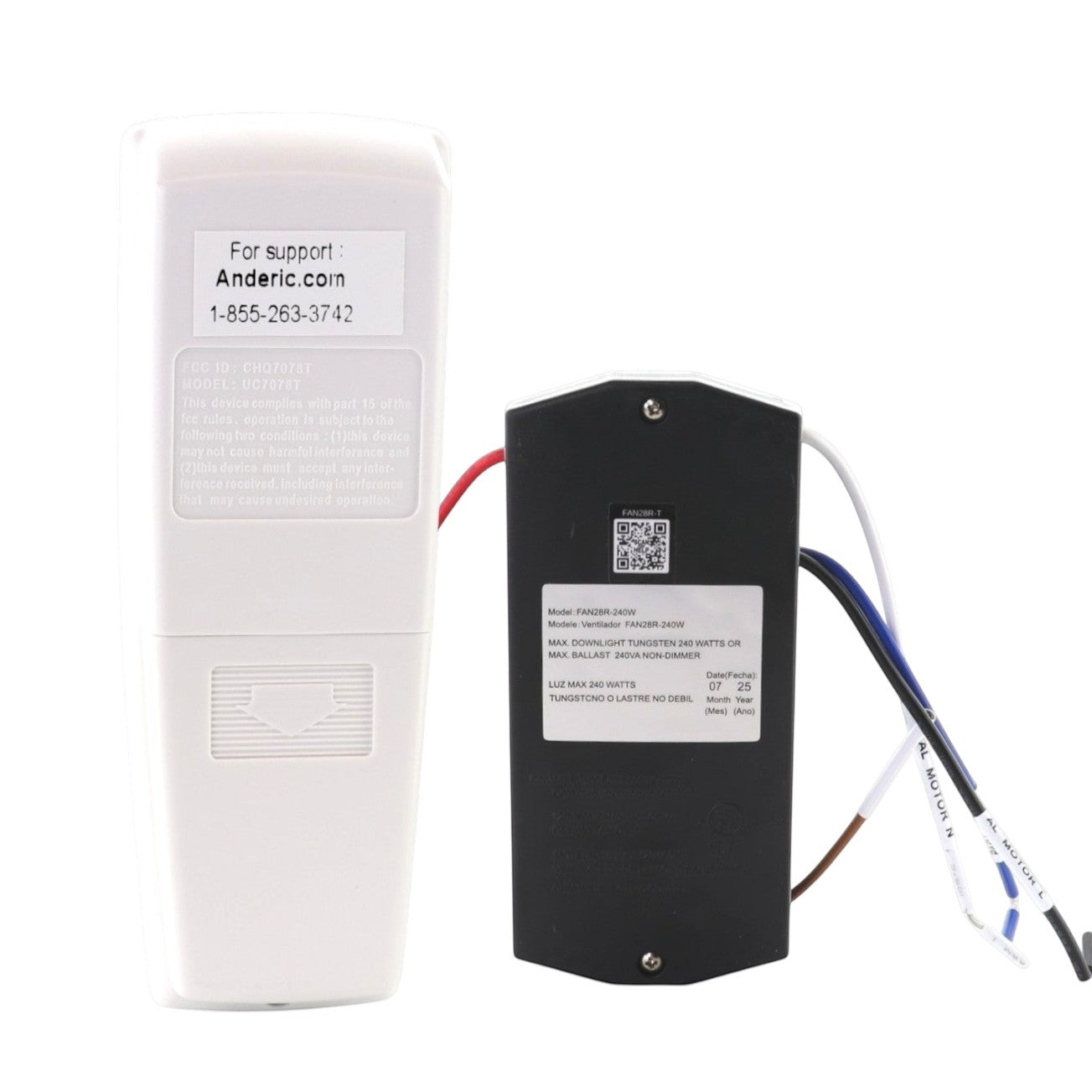

• 1 remote and 1 receiver
• Battery not included

Compatible Models

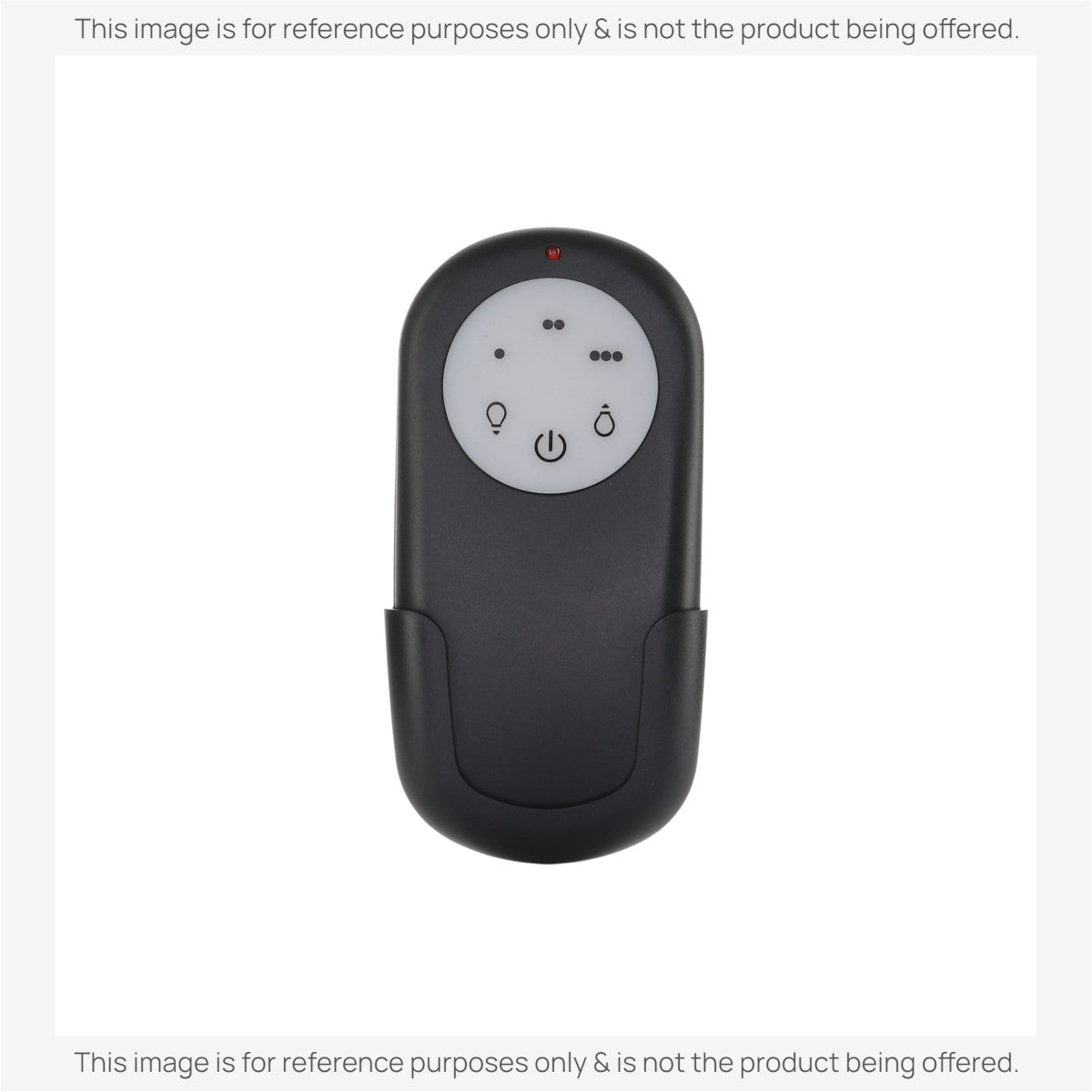

• DL-4114T

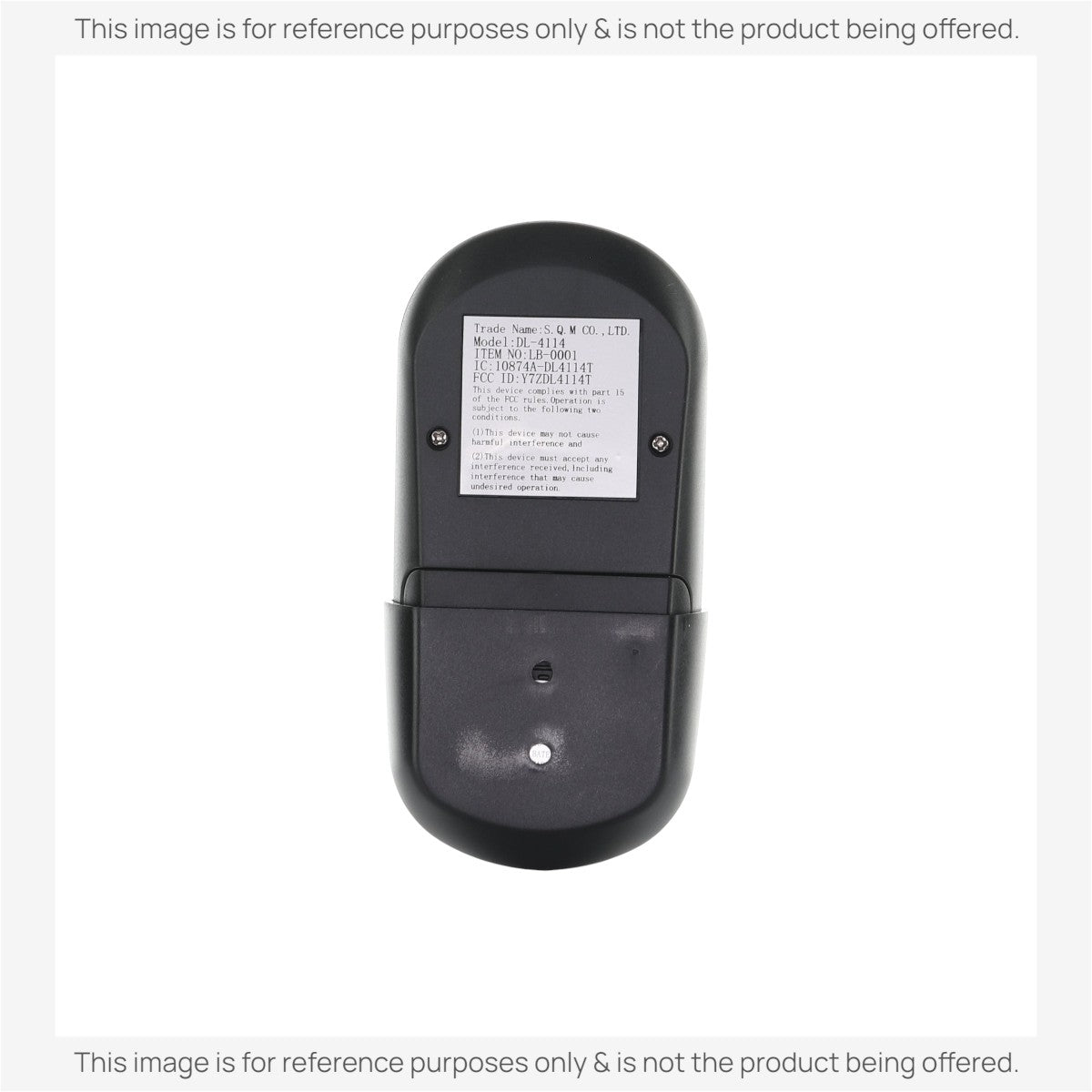

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
