Anderic UC789N-07 Ceiling Fan Receiver for Home Decorators Collection | YG493A Kensgrove 54 Inch

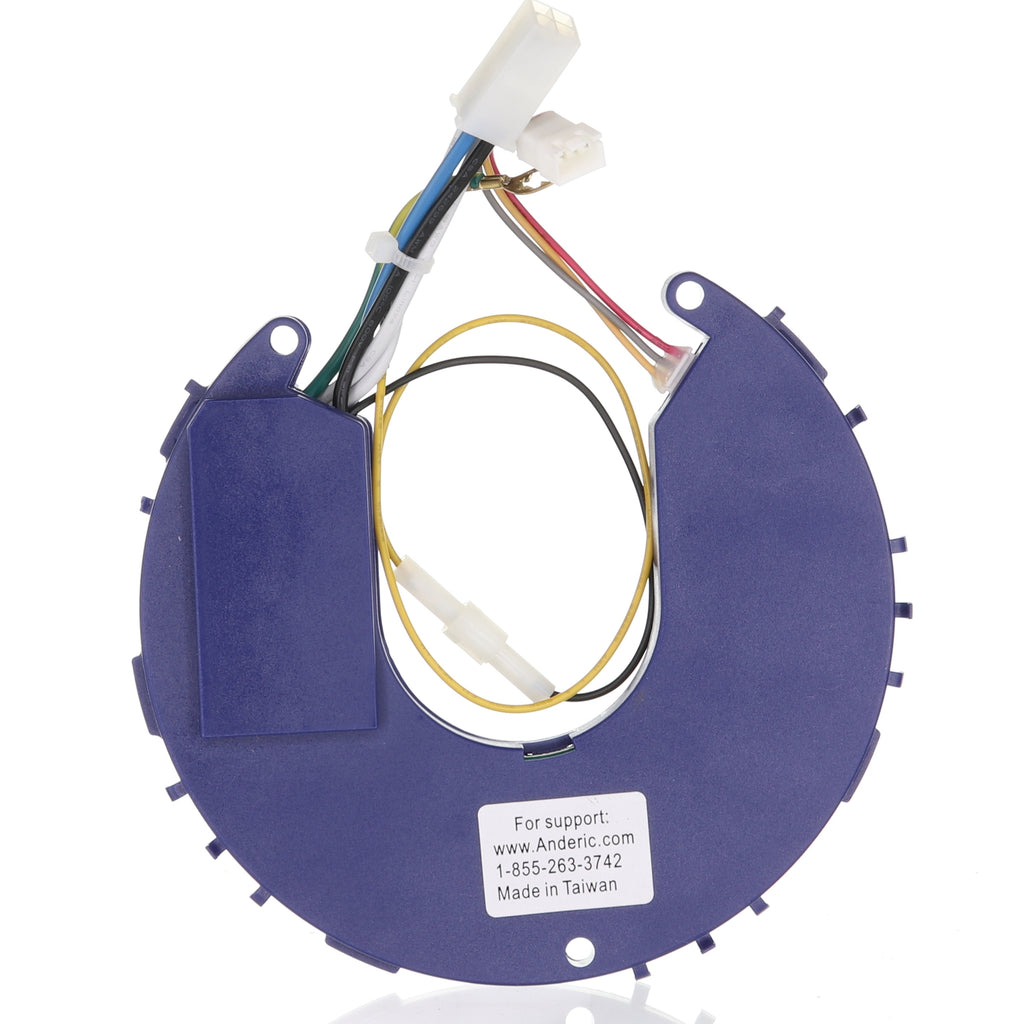

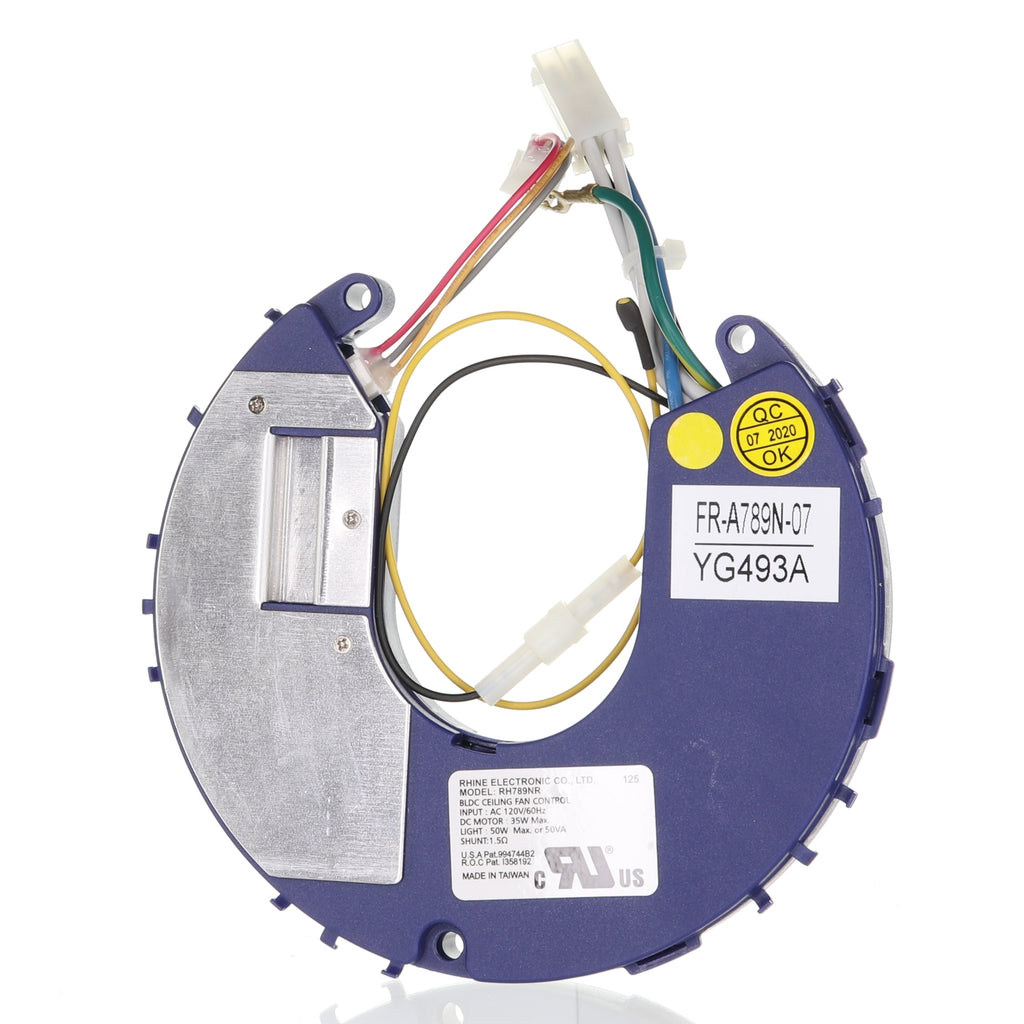

The Anderic UC789N-07 is a replacement receiver for select Home Decorators Collection YG493A Kensgrove 54-inch ceiling fans.

Specifications

• Shipped receiver: Anderic UC789N-07
• Fan and light control with the Anderic RR7225T 9-speed remote

Good to Know

• Receiver only; no remote is included.
• Not for non-matching Home Decorators Collection models.
• If you use the Fanimation RH787T remote, get the Anderic RR7225T remote; the UC7225T remote also works.
• Follow the installation instructions included with the kit; for wiring questions, use a licensed electrician.

Setup / Pairing

1. Turn the power to the fan off at the circuit breaker. Install the receiver in the fan housing following your fan's instructions, then reinstall the housing.
2. Remove the remote's battery cover by pressing firmly on the arrow and sliding it off. Insert the battery (not included), matching the polarity marks.
3. To pair (learning process): with the fan's power OFF, slide the dip switch in the battery compartment to the "1" position.
4. Turn the fan's power ON. If you have several fans, turn on power only to the fan you are pairing, so the other fans do not learn this remote.
5. Within 60 seconds of turning the power on, press and release the PAIRING button in the remote's battery compartment.
6. When the fan detects the remote, the down light (if your fan has one) blinks and the blades start to spin. The fan now accepts commands from this remote. A fan can learn up to five remotes.
7. To reset the fan to its old setting and drop other remotes: turn the power off, slide the dip switch to "0", turn the power on, and within 60 seconds press and release PAIRING.
8. If it does not pair, turn the power off and repeat the steps, pressing PAIRING within 60 seconds of restoring power.
9. Your existing remote will not work with this receiver; use the Anderic RR7225T remote.

What's in the Box

• 1 Anderic UC789N-07 receiver

Compatible Models

• Supplied with: YG493A-BN Kensgrove 54 in. Integrated LED Brushed Nickel Ceiling Fan, YG493A-EB Kensgrove 54 in. Integrated LED Espresso Bronze Ceiling Fan, YG493A-WH Kensgrove 54 in. Integrated LED White Ceiling Fan

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
