Anderic UC786N-37 Ceiling Fan Receiver for Home Decorators Collection | YG493B Kensgrove 64 Inch | FR-A786N-37, RH786NRW, UC786N37

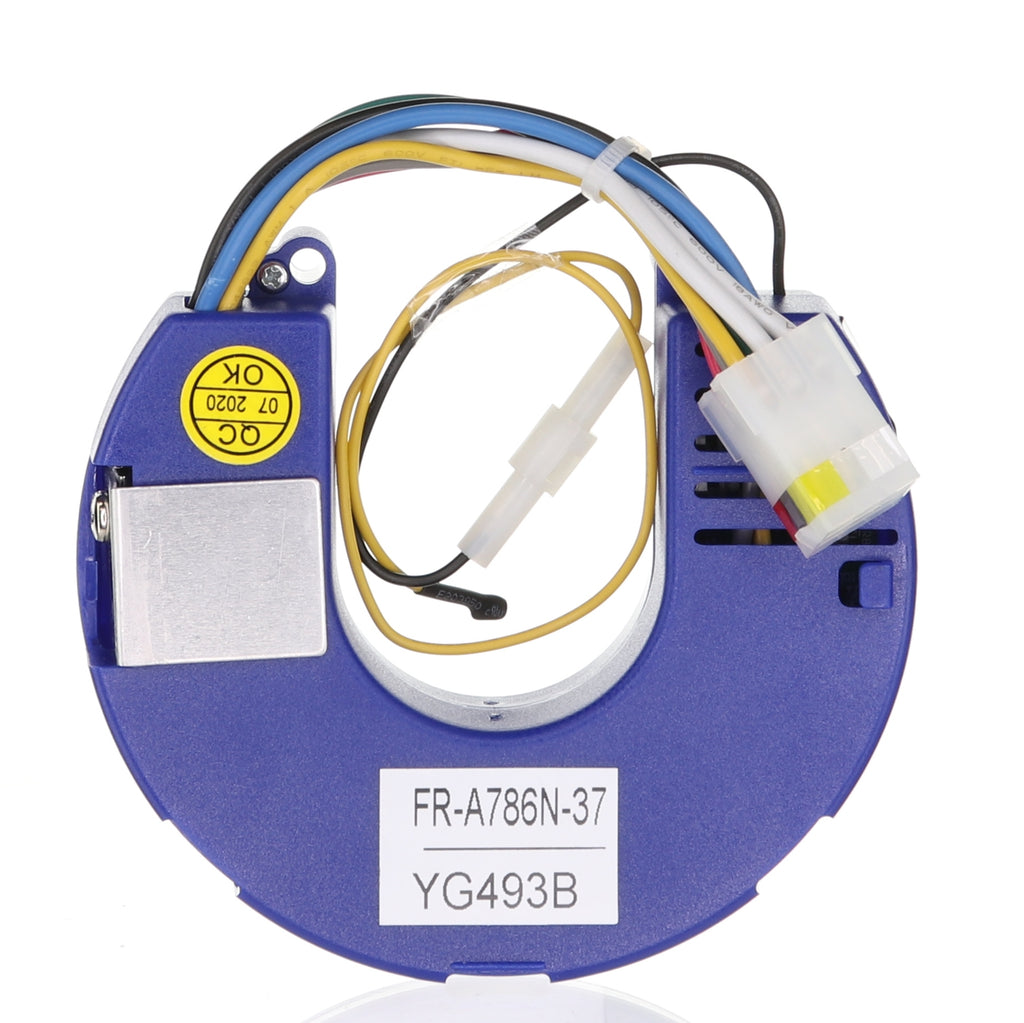

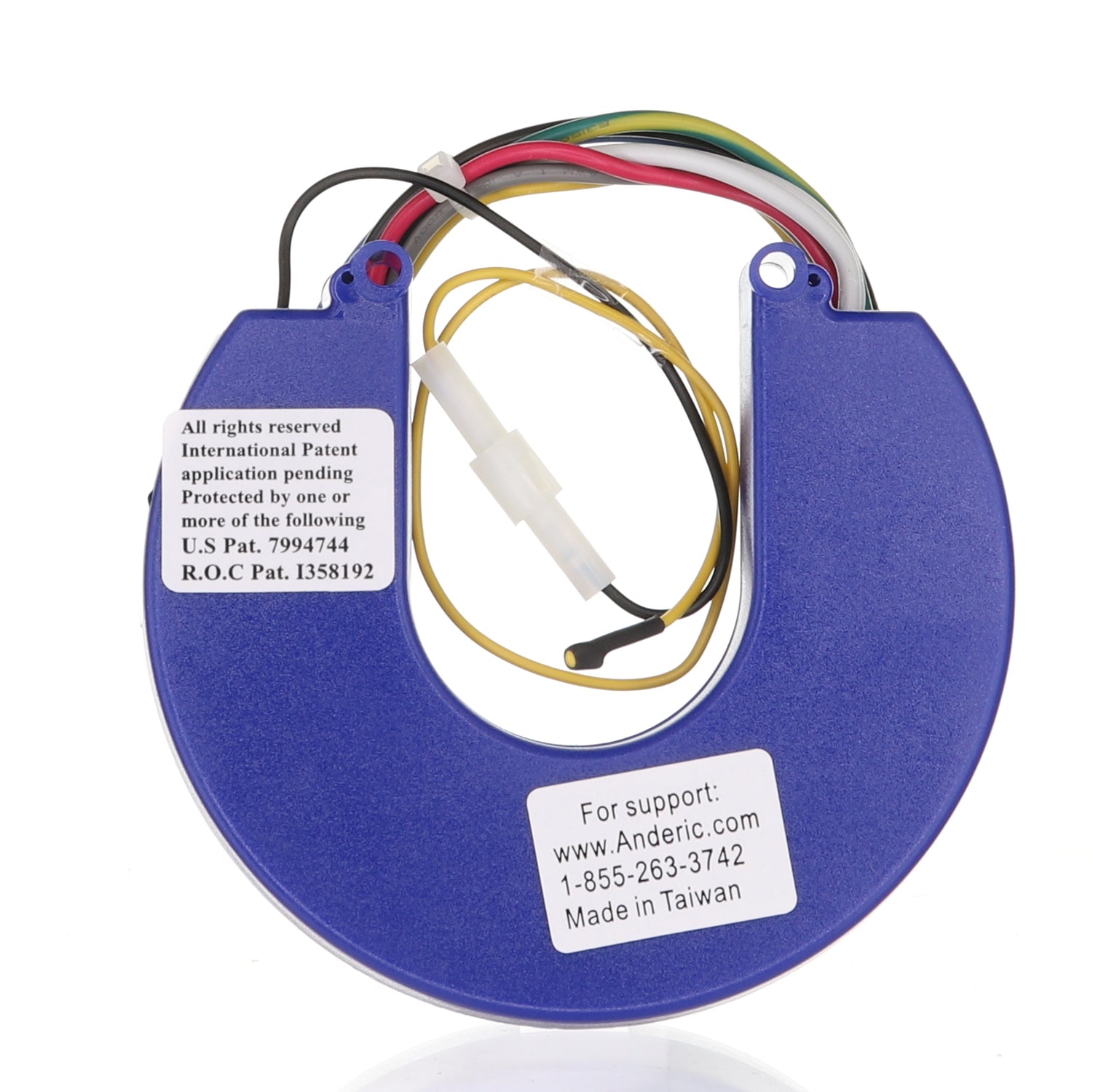

The Anderic UC786N-37 (FR-A786N-37 / RH786NRW) is a replacement receiver for select Home Decorators Collection Kensgrove 64-inch LED fans and select Fanimation fans.

Specifications

• Shipped receiver: Anderic UC786N-37

Good to Know

• Receiver only; no remote is included.
• Does not work with the Fanimation RH787T remote.
• Fanimation fans with a UC786N-04A receiver need a new RR7225T remote.
• Follow the installation instructions included with the kit; for wiring questions, use a licensed electrician.

Setup / Pairing

1. Turn the power to the fan off at the circuit breaker. Install the receiver in the fan housing following your fan's instructions, then reinstall the housing.
2. Remove the remote's battery cover by pressing firmly on the arrow and sliding it off. Insert the battery (not included), matching the polarity marks.
3. To pair (learning process): with the fan's power OFF, slide the dip switch in the battery compartment to the "1" position.
4. Turn the fan's power ON. If you have several fans, turn on power only to the fan you are pairing, so the other fans do not learn this remote.
5. Within 60 seconds of turning the power on, press and release the PAIRING button in the remote's battery compartment.
6. When the fan detects the remote, the down light (if your fan has one) blinks and the blades start to spin. The fan now accepts commands from this remote. A fan can learn up to five remotes.
7. To reset the fan to its old setting and drop other remotes: turn the power off, slide the dip switch to "0", turn the power on, and within 60 seconds press and release PAIRING.
8. If it does not pair, turn the power off and repeat the steps, pressing PAIRING within 60 seconds of restoring power.
9. Your existing remote will not work with this receiver; use the Anderic RR7225T remote.

What's in the Box

• 1 Anderic UC786N-37 receiver

Compatible Models

• Also works with: YG493B-BN Kensgrove 64 in. LED Brushed Nickel Ceiling Fan, YG493B-EB Kensgrove 64 in. LED Espresso Bronze Ceiling Fan, YG493B-WH Kensgrove 64 in. LED White Ceiling Fan.

Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
