Description
The Anderic FAN53TW-UC7067FMRX-KIT is a 3-speed remote control add-on kit for AC ceiling fans: a FAN53TW remote and a UC7067FMRX receiver on 304 MHz.
Specifications
- Kit: Anderic FAN53TW-UC7067FMRX-KIT
- Radio frequency (RF): 303.9 MHz
- Battery: 1 9-volt (not included)

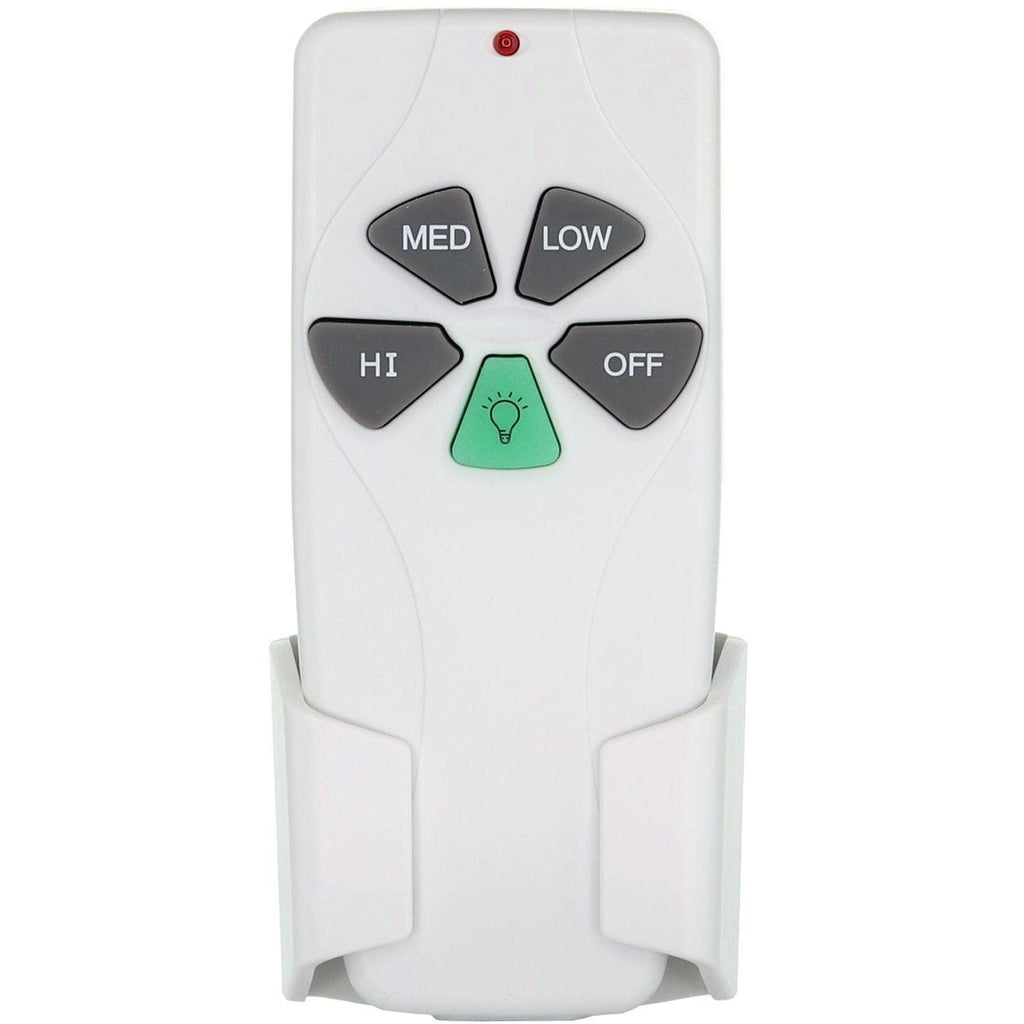

- Remote keys: LIGHT (press and hold to dim), LOW, MED, HI and OFF
- Receiver has one light output (blue wire)
Good to Know
- Turn off power at the circuit breaker before installing; a qualified electrician is recommended.
Setup / Pairing

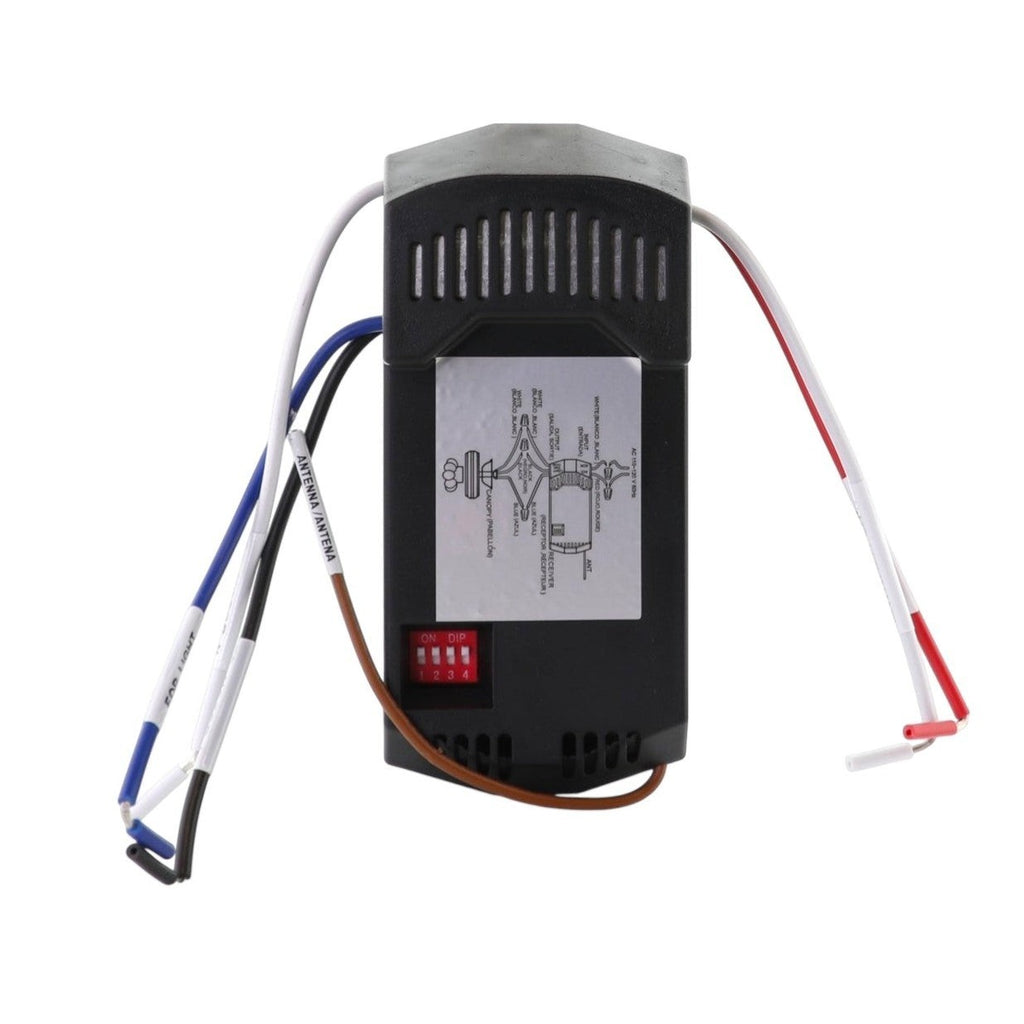

Installing the UC7067FMRX receiver
WARNING: High voltage. Household electrical power can cause serious injury or death. Disconnect power to the ceiling fan by removing the fuse or switching off the circuit breaker.
- Remove the ceiling fan canopy from the mounting bracket.
- Disconnect the existing wiring between the ceiling fan and the supply at the junction box. If you are replacing a receiver, disconnect all of its wires.
- Lay the black antenna wire on top of the receiver and put the receiver in the mounting bracket.
- Make these connections with the supplied wire nuts: green fan wire to bare supply wire; black receiver wire (AC IN L) to black supply wire; white receiver wire (AC IN N) to white supply wire; white receiver wire (TO MOTOR N) to white fan wire; black receiver wire (TO MOTOR L) to black fan wire; blue receiver wire (FOR LIGHT) to blue light wire.
- Push all connected wires up into the junction box.
- Reinstall the canopy on the mounting bracket.
- Restore the electrical power.
Setting the codes
- Before reinstalling the fan housing or canopy, note the dip switch pattern on the UC7067FMRX receiver (or set it to the pattern you want).
- On the remote, remove the battery cover and slide the 4 dip switches up or down. The factory setting is all switches up; we recommend using a different combination.
- Set the switches on the remote to EXACTLY match the switches on the UC7067FMRX receiver. The remote and receiver will only work together when both patterns are the same.
- Connect a 9-volt battery (not included), replace the battery cover, restore power and test the fan and light.
What's in the Box
- 1 remote and 1 receiver
- Battery not included
Works with 3-speed AC ceiling fans.
Specifications
Product help/documentation (if applicable): Installation Instructions
Features:
- A 3-speed remote control add-on kit for AC ceiling fans with a FAN53TW remote and a UC7067FMRX receiver on 304 MHz.
- Install the UC7067FMRX receiver with the power off, then set the remote's 4 dip switches to match it; step-by-step instructions are in the description.
- Works on almost any 3-speed AC fan, with or without pull chains. Remote keys – LIGHT (press and hold to dim), LOW, MED, HI and OFF and Receiver has one light output (blue wire).
- The Anderic FAN53T Universal 3-Speed Add-on Ceiling Fan Remote Control Kit is the perfect solution for upgrading most 3-speed ceiling fans into convenient wireless systems.
- Takes 1 9-volt battery, not included.
Part/Model Number: FAN53TW-UC7067FMRX-KIT / FAN53TW-UC7067FMRX-KIT
Power Information: 1 9-Volt Required, Not Included
Frequency (if applicable): 303.9 MHz
