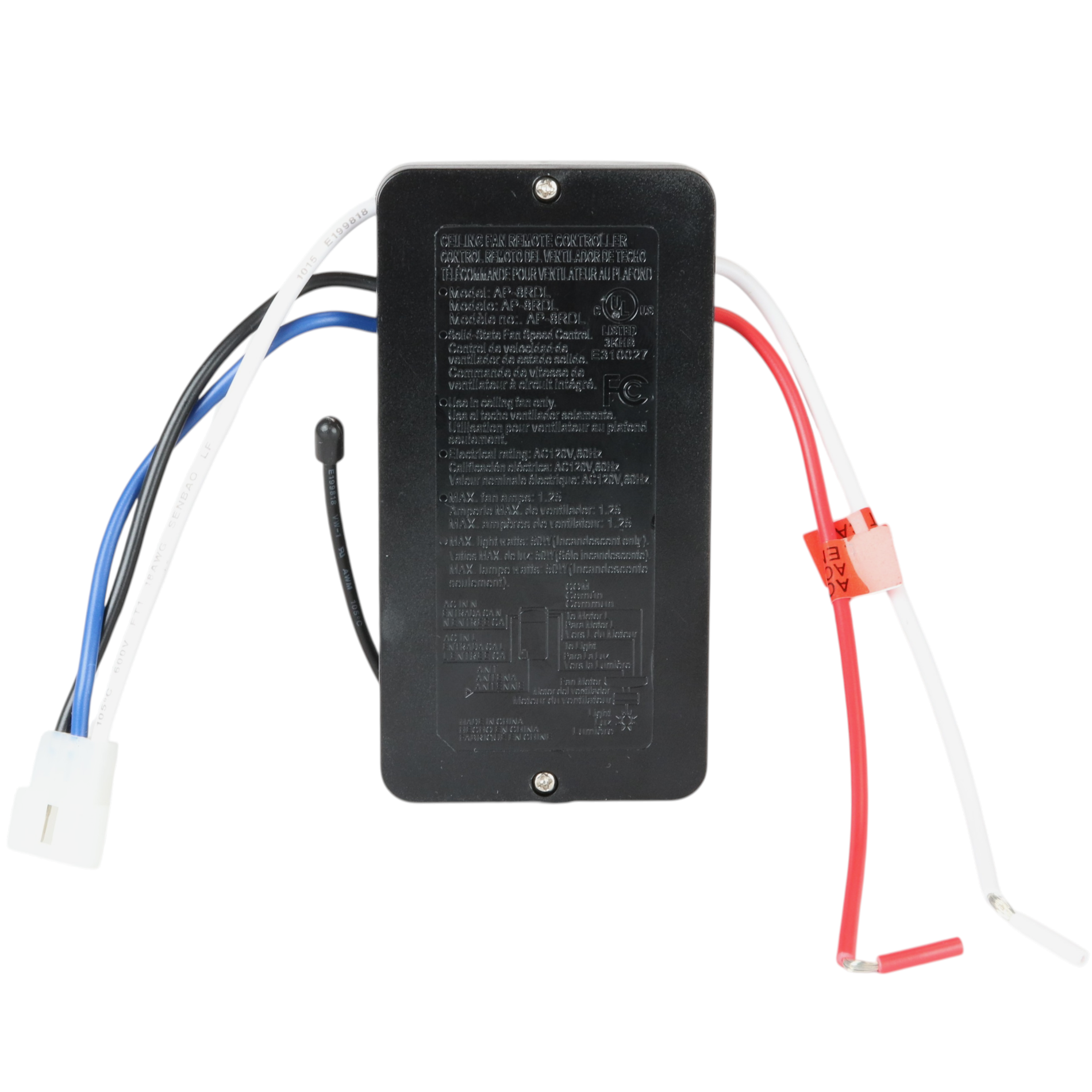

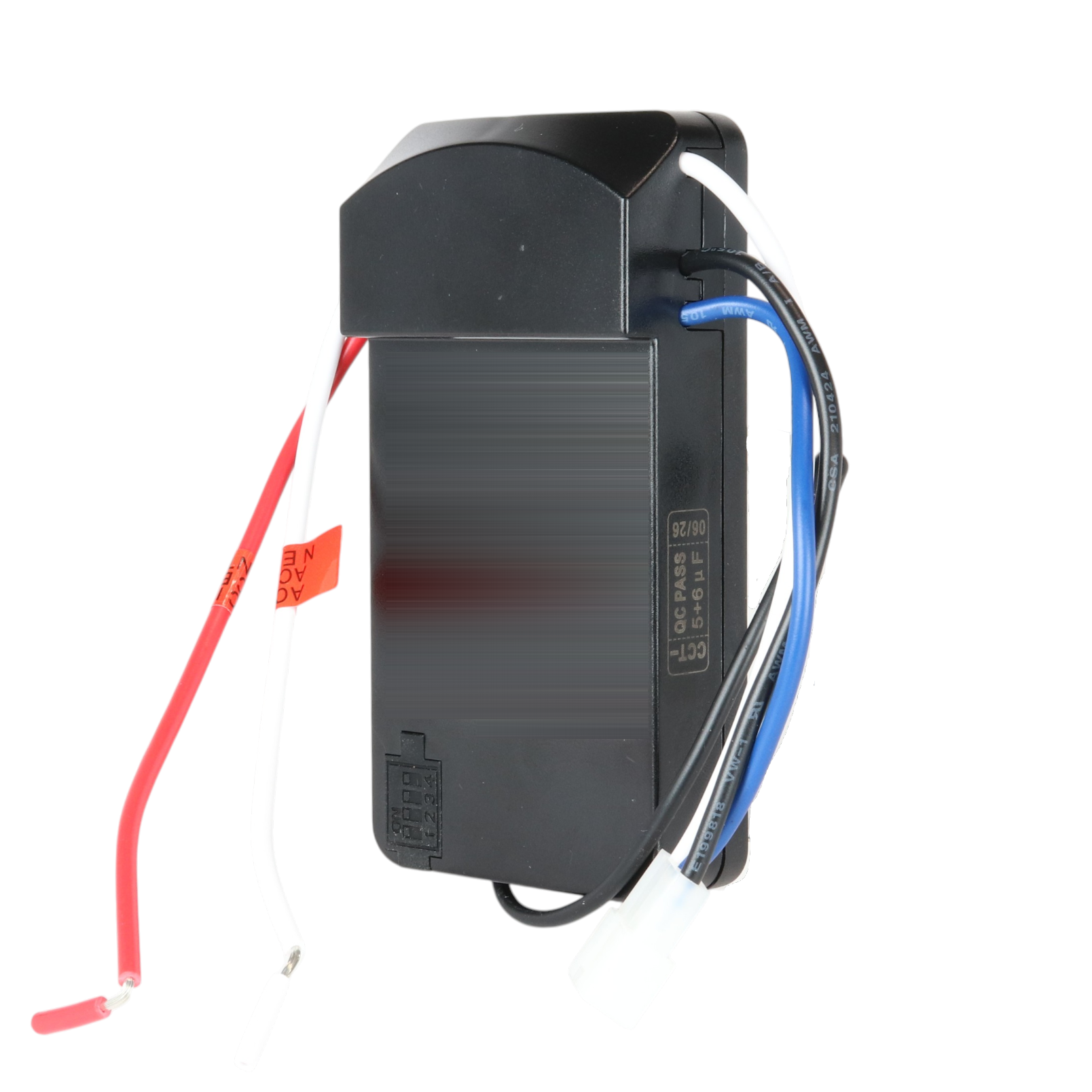

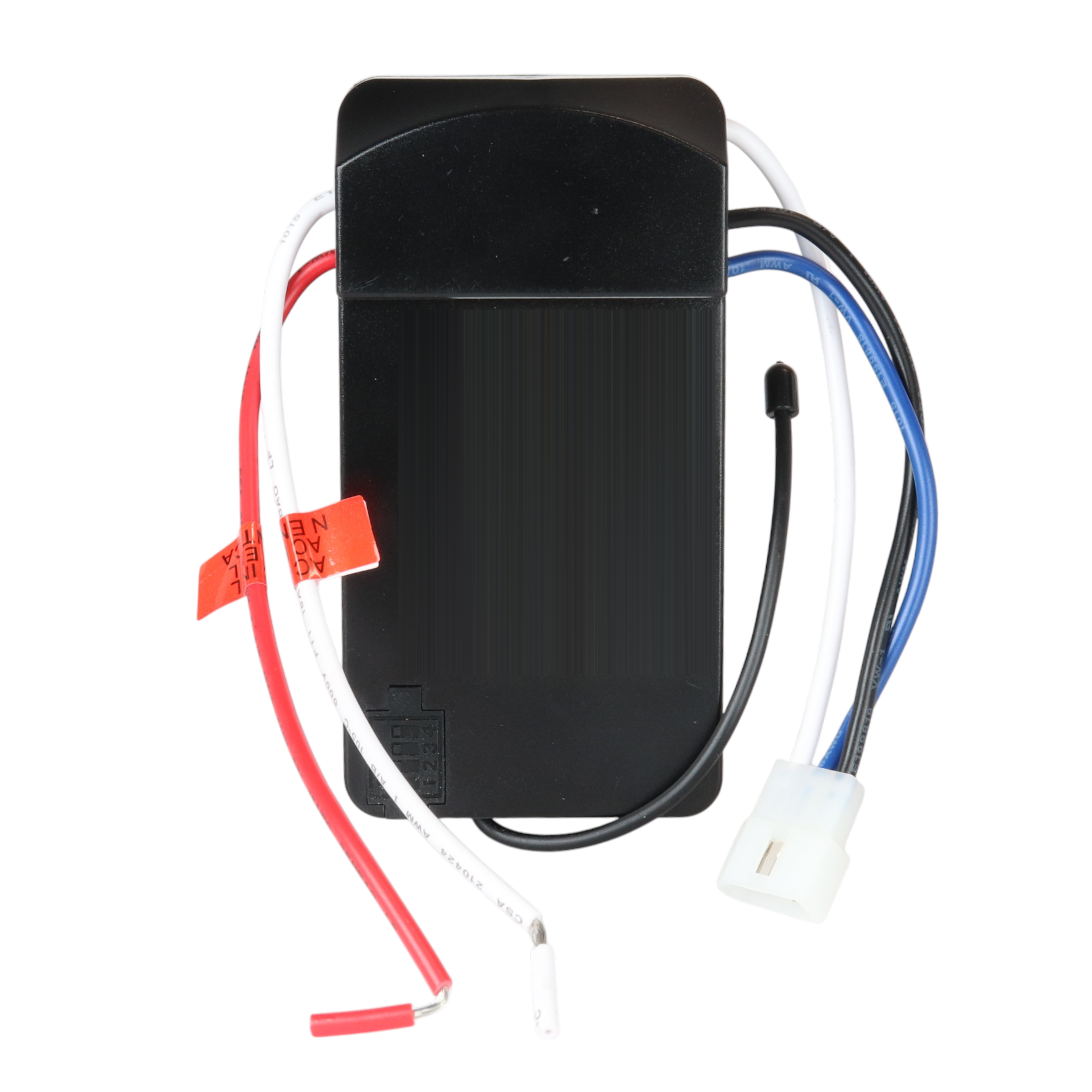

The Anderic AP-8RDL is a 304 MHz AC ceiling fan receiver for select Home Decorators Collection fans, including the Ashby Park, Beckford, Chelton and Mena.
Specifications
- Shipped receiver: Anderic AP-8RDL
- Light on/off, dimming and CCT color temperature changing

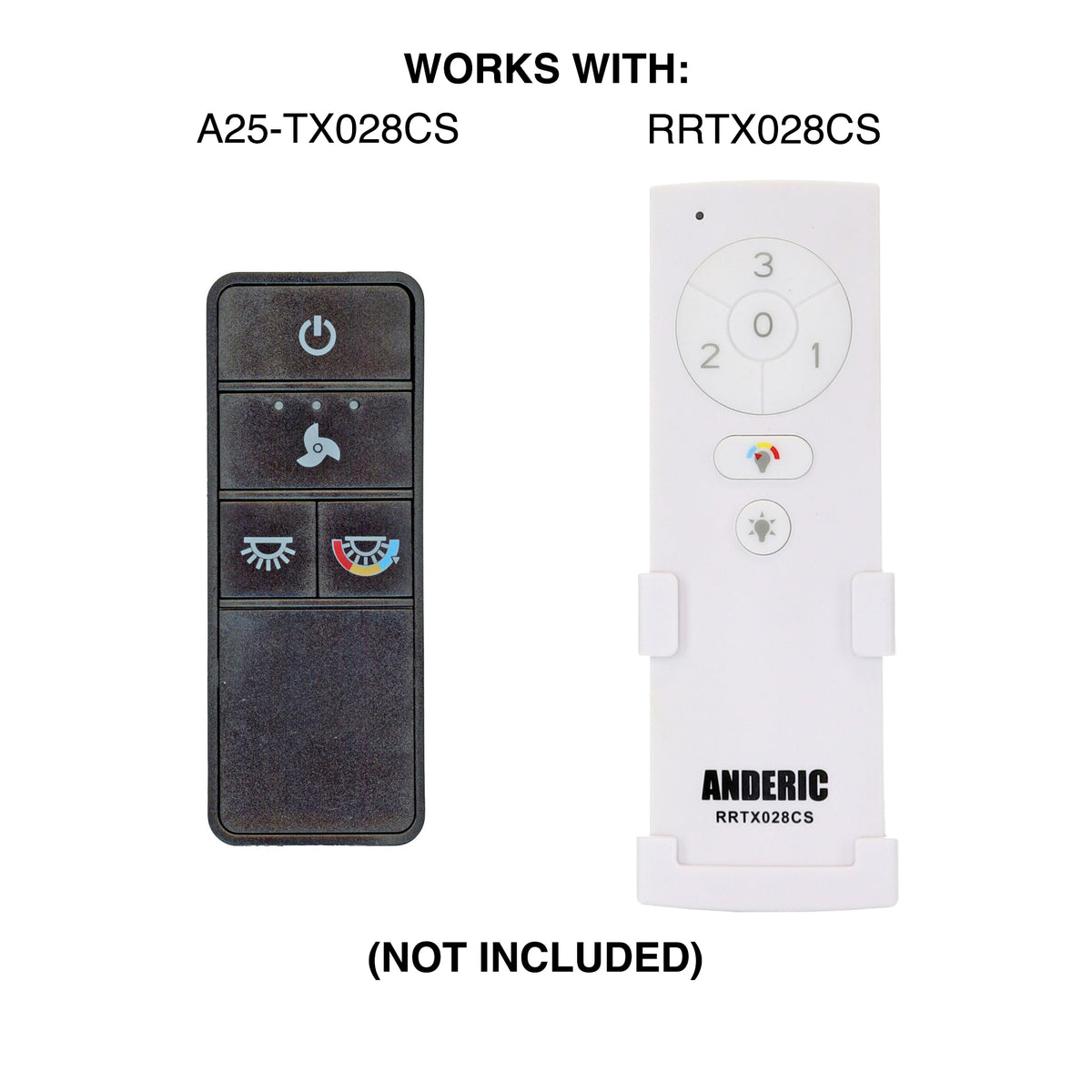

- Pairs with the A25-TX028C-S remote or the Anderic RRTX028CS remote using the 4-dip switch pairing function
Good to Know
- Receiver only; no remote is included.
- For compatible AC motor ceiling fans only.
Setup / Pairing
Setting the code on the remote
- Remove the battery cover by pressing firmly on the arrow and sliding it off.
- Slide the code (dip) switches up or down to your choice. The factory setting is up.
- Install the battery (not included) and replace the battery cover.
Setting the code on the receiver
- Slide the receiver's dip switches to EXACTLY the same positions as the remote. The remote and receiver only work together when both patterns match.
- Insert the silicone rubber plug into the hole on the receiver to cover the dip switches.
What's in the Box
- 1 Anderic AP-8RDL receiver
Compatible Models
- Home Decorators Collection Ashby Park, Beckford, Chelton and Mena. Remotes: A25-TX028C-S, Anderic RRTX028CS
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
