Anderic Substitute for Fanimation C23 Wall Switch Ceiling Fan Remote Control with UP & DOWN light and Rev UC-9051T [CHQ9051T Wireless]

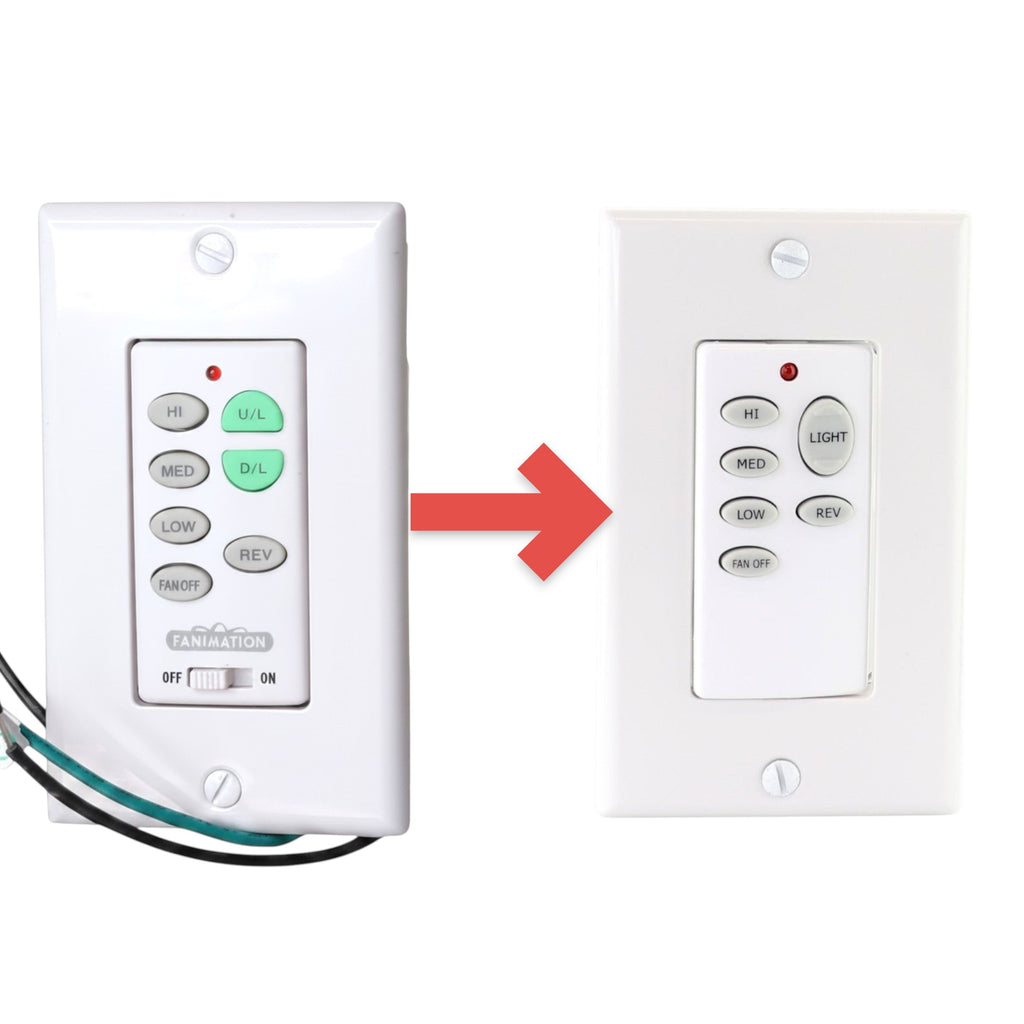

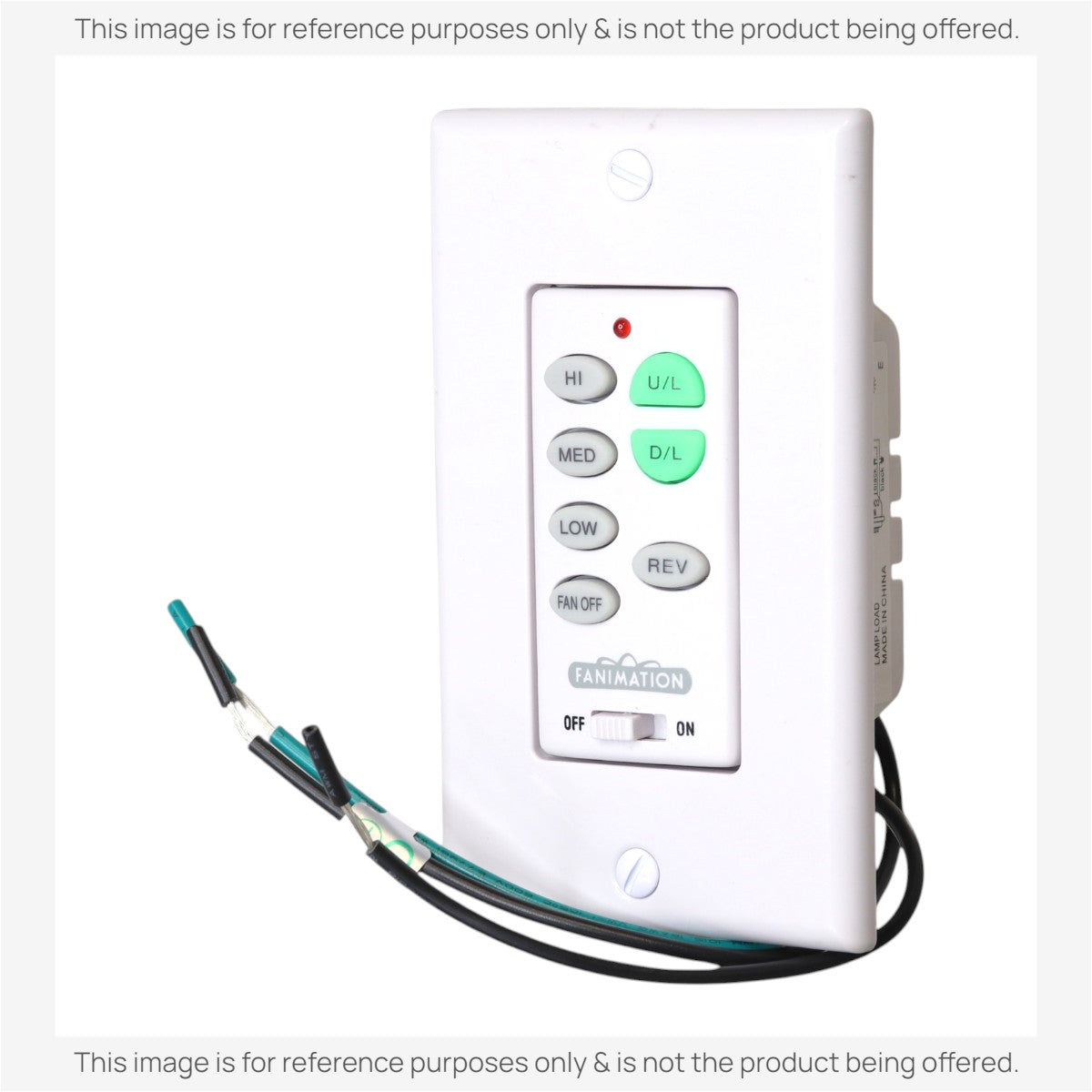

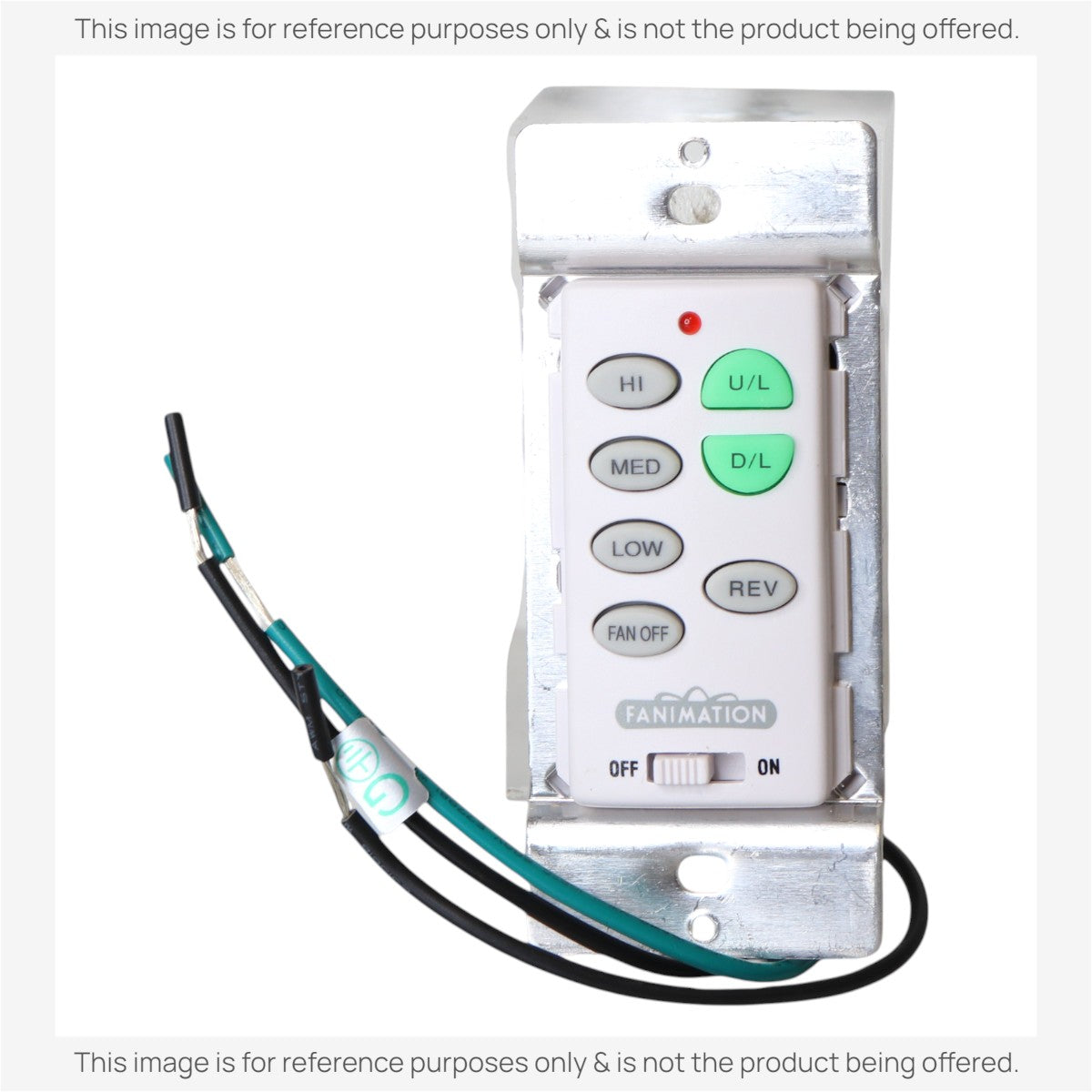

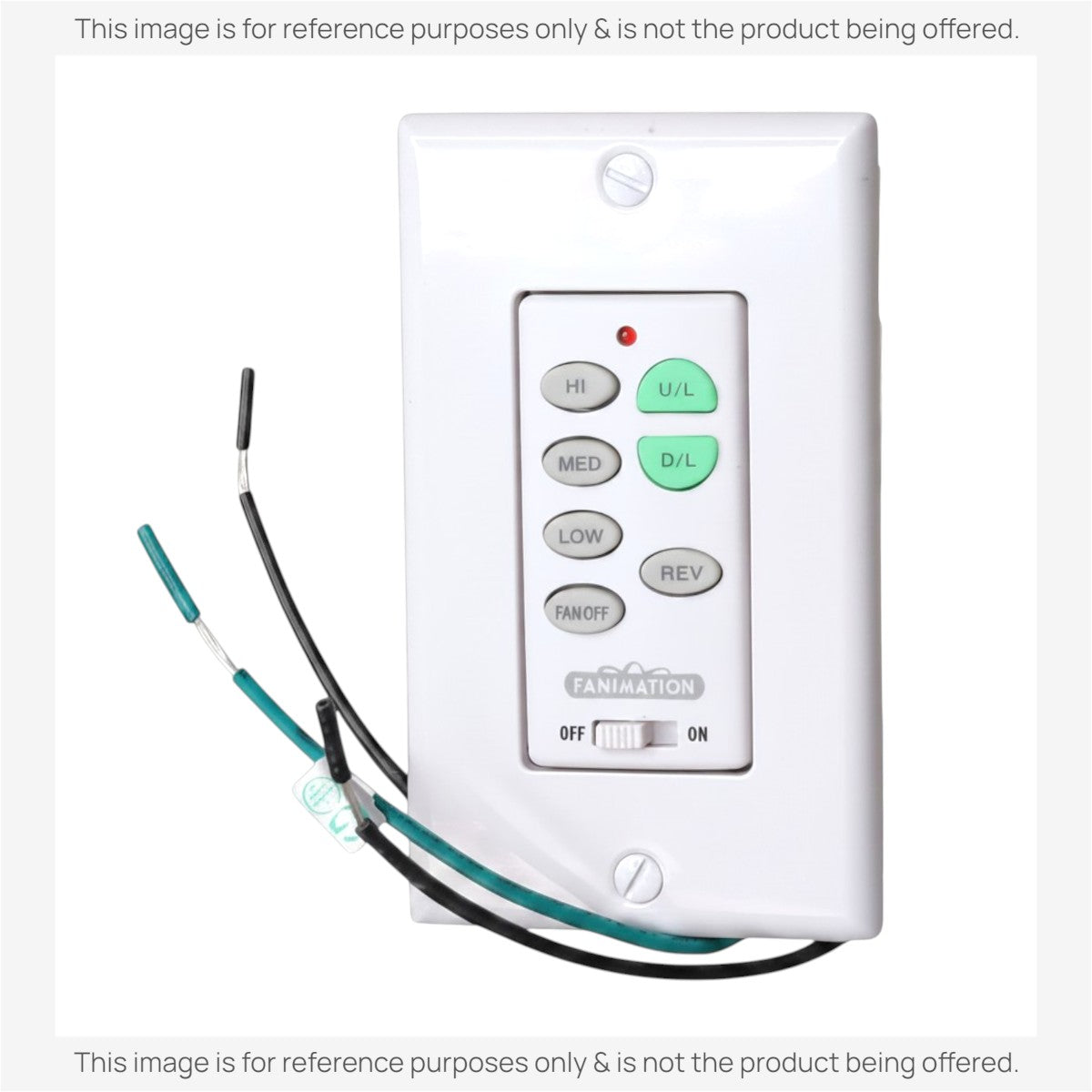

The CHQ9051T Wireless is a remote control for ceiling fans operating at 303.875 MHz, offering up-and-down light control. This model functions as a compatible substitute for the Fanimation UC-9051T wired wall switch, providing the same control functionality in a wireless format. The CHQ9051T Wireless allows you to adjust fan speed and lighting from anywhere in the room without requiring wall-mounted installation. This control unit works seamlessly with compatible Fanimation ceiling fan systems for convenient operation.

Package Includes:

• Anderic CHQ9051T / UC9051T wall control
• Decorative Wall plate (White)
• 2x remote plate covers (White and Ivory)
• 2x securing screws & 2x decorative screws (White)
• Installation instructions

Button Functions:

• HI (1) – Press to turn the fan oscillation speed to high
• MED (2) – Press to turn the fan oscillation speed to medium
• LOW (3) – Press to turn the fan oscillation speed to low
• FAN OFF (4) – Press to turn the fan oscillation off
• UPLIGHT (5) – Press to turn the upper fan light ON/OFF, and hold the button to control
• dimming (requires a compatible receiver and bulbs)
• DOWNLIGHT (6) - Press to turn the lower fan light ON/OFF, and hold the button controls
• dimming (requires a compatible receiver and bulbs)
• REV (7) – Press to reverse the fan oscillation direction (requires a compatible receiver)
• DIPSWITCHES (8) – Set the 4 dipswitches up or down to match the existing receiver in the
• fan (see battery installation and setup)

Battery required: 23A (not included).
