The Anderic RR787T is a substitute for the Fanimation TW30WH / UC9787T / CH9787TB / CHQ9053T wired wall-plate control. It is a 6-speed wireless handheld ceiling fan remote that connects to the fan by radio instead of through the wall wiring.

How to confirm the fit

Find the model or FCC ID on your old wall plate or remote. It should match TW30WH, UC9787T, CH9787TB, or CHQ9053T. If your control shows a different model or FCC ID, this remote will not work with your fan's receiver.

Specifications

• Shipped remote: Anderic RR787T
• FCC ID (original): CHQ9053T
• Radio frequency (RF): 303.947 MHz
• Battery: 1 23A / A23 (not included)

Good to Know

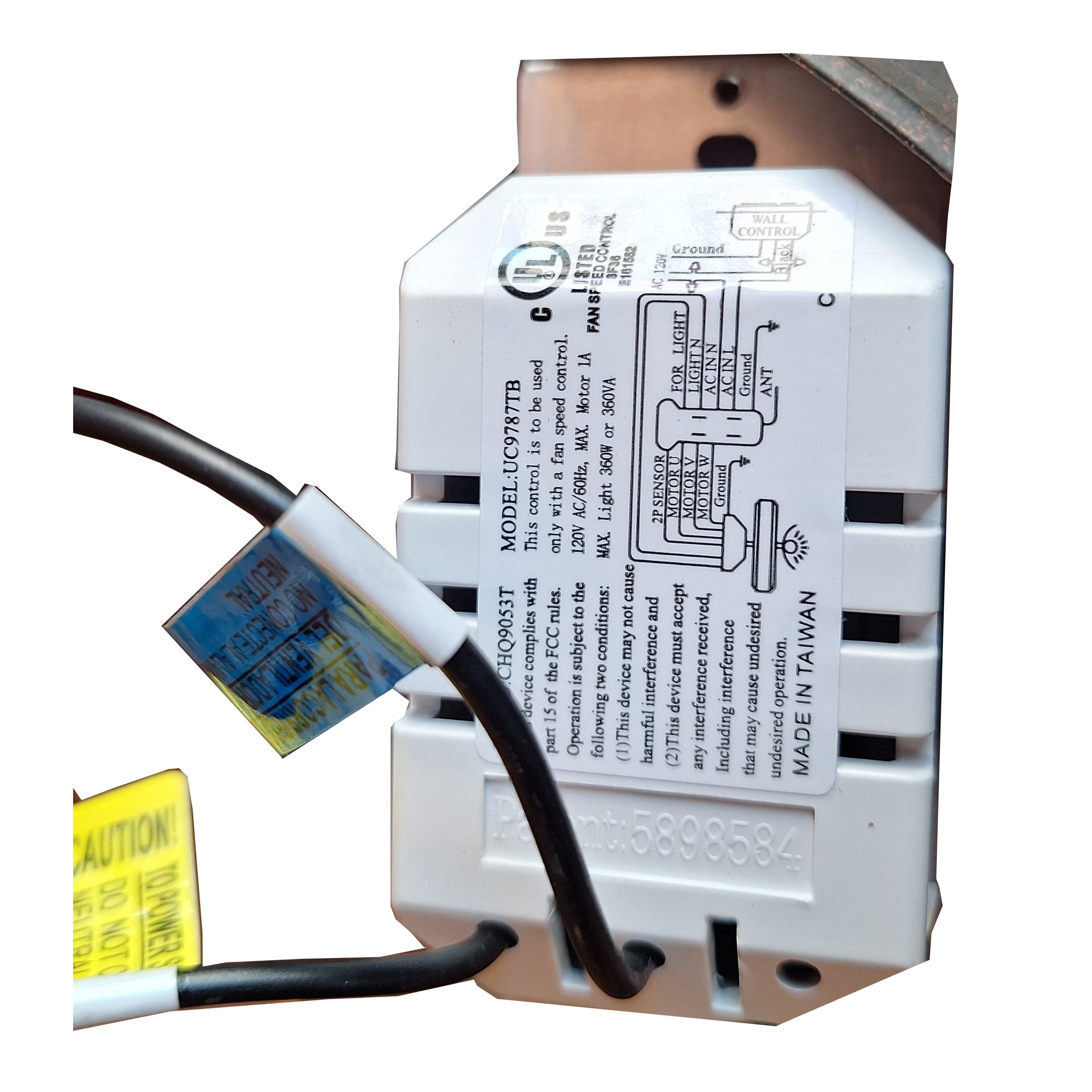

• The original Fanimation TW30WH / UC9787T / CHQ9053T is a wired wall-plate control. This Anderic RR787T is a battery-powered handheld remote that pairs wirelessly, so you do not reconnect wall wiring to use it.
• This remote has DIP switches, but for this replacement they usually don't need to be changed. Pair it with the SET button. If SET pairing doesn't take, the DIP-switch method in the user guide is an alternative.
• Works with fans that use an RH786R-style receiver.
• No up-light control.
• Key names and layout may differ from the original wall plate. Compare your original's buttons before ordering.

Setup / Pairing

1. Turn the power to the fan off at the light switch or circuit breaker.
2. Remove the remote's battery cover and install a 23A / A23 battery (not included). This remote has DIP switches, but for this replacement they usually don't need to be changed.
3. Restore power to the fan. Do not press any other button before SET. If you press another button first, turn the power off and on again and start over.
4. Within 60 seconds of restoring power, press and hold the SET button for 1 to 5 seconds.
5. The light blinks twice: the fan now responds to the remote.
6. If it does not pair, turn the power off and on again and repeat from step 3. If SET pairing still doesn't take, use the DIP-switch method in the Anderic RR787T user guide as an alternative.

What's in the Box

• 1 Anderic RR787T remote
• Battery not included

Compatible Models

• Fanimation TW30WH / UC9787T / CH9787TB / CHQ9053T (wired wall plate being replaced)
• Also used in place of many RH787T / TR29 / UC787GT-style handhelds on Casablanca, Fanimation, Hampton Bay, Monte Carlo, and Regency DC fans that use an RH786R-style receiver (see the full compatible models list on this page).

Before ordering, check the model or part number printed on your old control (usually on the faceplate, back, or inside the battery compartment) and compare it to the full compatible models list.
