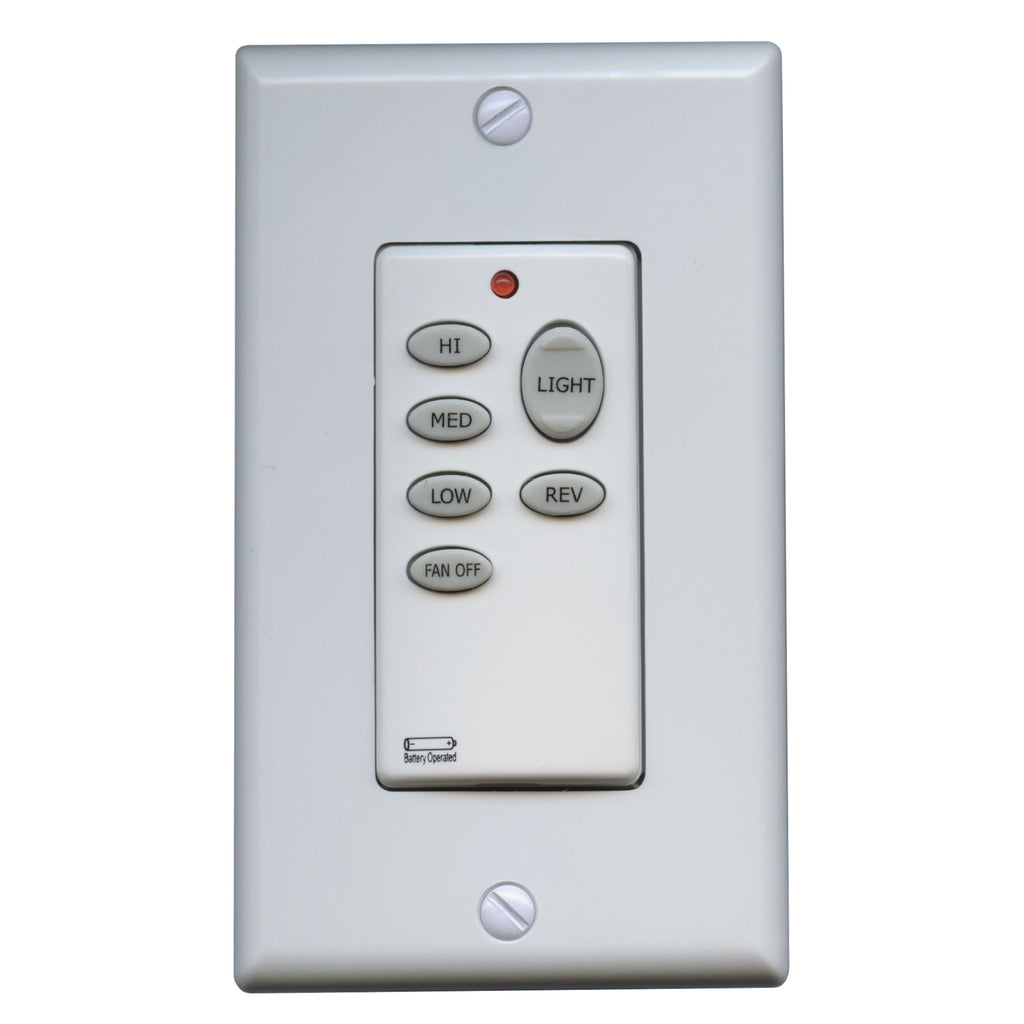

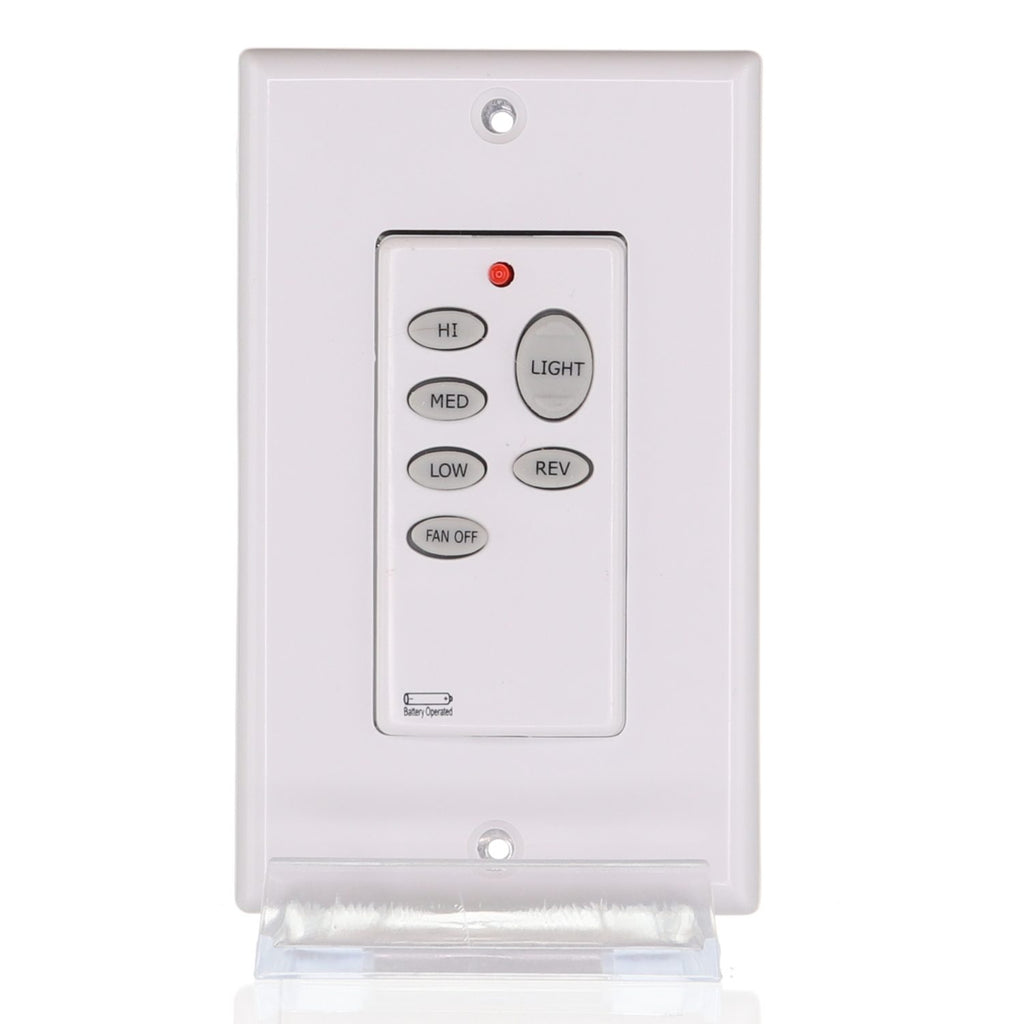

Anderic CHQ9051T Wireless Wall Switch Ceiling Fan Remote Control for 3-Speed Fans with Up & Down Light and Reverse Keys

The Anderic CHQ9051T / UC9051T remote control is a direct replacement for many original remotes from Hampton Bay, Harbor Breeze, and Kichler ceiling fans. Operating at 303.875 MHz, it pairs with most UC7067RC (304 MHz) and FAN28R-UD receivers using a 4-dip-switch configuration—no programming necessary.

This remote offers full control over fan and light functions, including low, medium, and high speeds, reverse direction, up-light, down-light, and dimming (compatible with incandescent and certain dimmable LED bulbs only). It’s an ideal solution for replacing lost or broken remotes and restoring full fan functionality.

Package Includes:

• Anderic CHQ9051T / UC9051T wall control
• Decorative Wall plate (White)
• 2x remote plate covers (White and Ivory)
• 2x securing screws & 2x decorative screws (White)
• Installation instructions

Button Functions:

• HI (1) – Press to turn the fan oscillation speed to high
• MED (2) – Press to turn the fan oscillation speed to medium
• LOW (3) – Press to turn the fan oscillation speed to low
• FAN OFF (4) – Press to turn the fan oscillation off
• UPLIGHT (5) – Press to turn the upper fan light ON/OFF, and hold the button to control
• dimming (requires a compatible receiver and bulbs)
• DOWNLIGHT (6) - Press to turn the lower fan light ON/OFF, and hold the button controls
• dimming (requires a compatible receiver and bulbs)
• REV (7) – Press to reverse the fan oscillation direction (requires a compatible receiver)

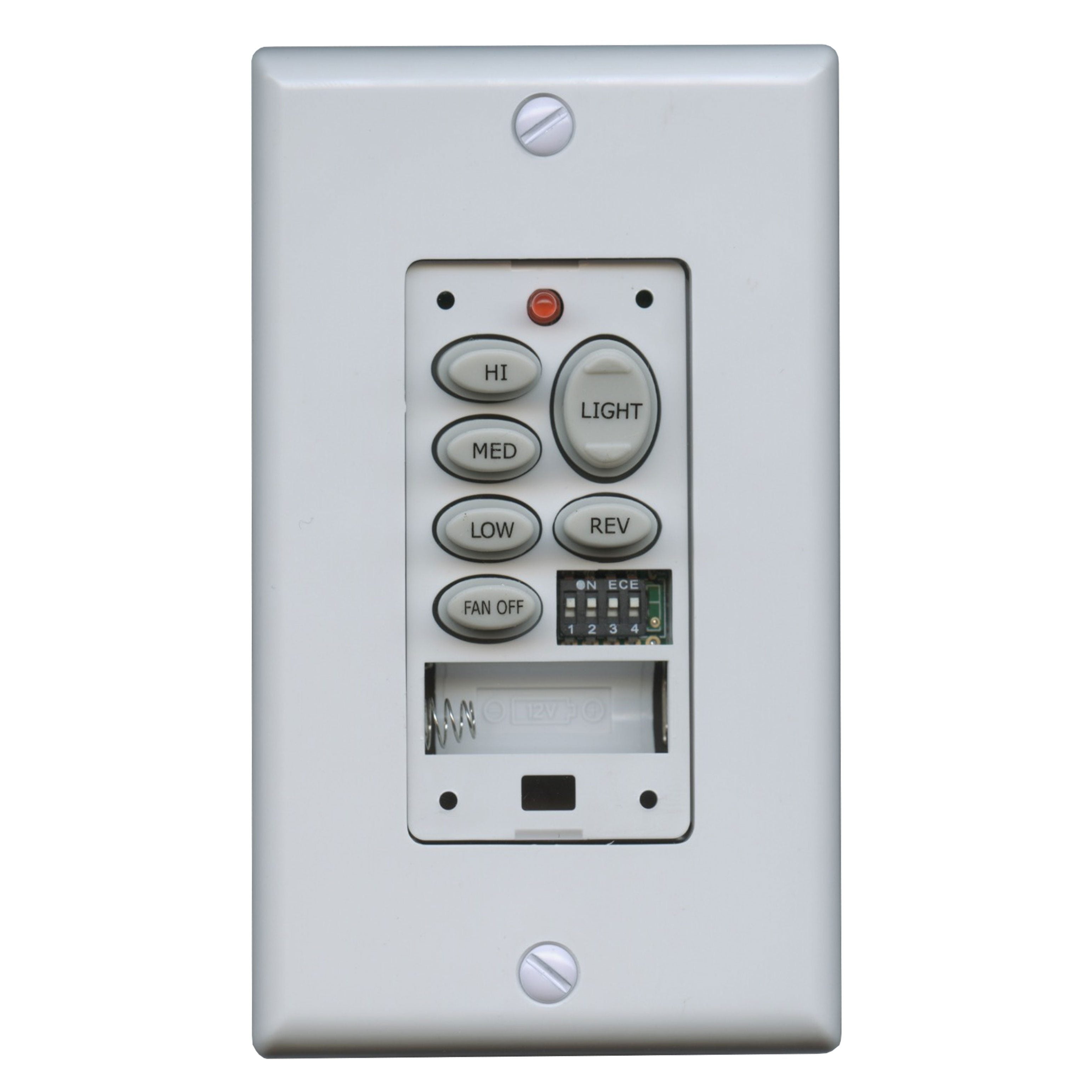

• DIPSWITCHES (8) – Set the 4 dipswitches up or down to match the existing receiver in the
• fan (see battery installation and setup)

Battery required: 23A (not included).
